Description

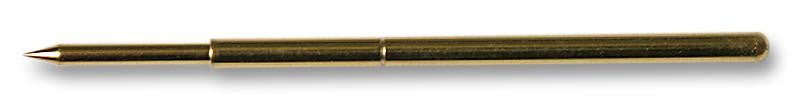

The P25-0123 is a 1-contact female/spring contact ATE Spring Probe with 2.54mm minimum pitch and spear head. It has vertical connector orientation and PC tail/through board connection type. Contact base is made of gold plated beryllium copper plunger/phosphor bronze shell with gold plated termination. For use with S25-022, S25-212 or S25-512 receptacle/sleeve.
- 3A Current rating
- 50mR at 2/3 travel Contact resistance
- 100000 cycles Durability
- Beryllium copper plunger and phosphor bronze shell
- Gold finish on probe head and body
- Body length is 18.5mm
- Suitable for use with S25-022, S25-212 or S25-512 receptacle/sleeve
Applications
Industrial
Product details
| Overall Length | - |
| Centreline Spacing | - |
| Connector Type | Spring Probe |
| Current Rating | 3A |
| Spring Force Working Travel | - |
| Product Range | P25-XX23 Series |
| Spring Force Initial | - |
| Connector Tip Style | - |
Other details
| Brand | HARWIN |
| Part Number | P25-0123 |
| Quantity | Each |
| Drawing EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 430.07 |
| 3-5 | ₹ 425.68 |
| 5-10 | ₹ 416.91 |
| 10+ | ₹ 408.13 |
Bulk discount will be automatically applied during checkout based on quantity.
