Description

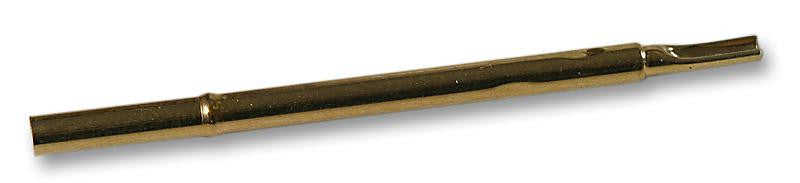

The S25-022 from Harwin is a ATE spring probe sleeve/receptacle. It is compatible with P25-0822 or P25-XX23 series probes.
- Vertical connector orientation
- PC tail/through board connection type
- Operating temperature range -40°C to 85°C
- Gold plated termination
- Base material of contact is brass
- 23.7mm body length
- 5.8mm retaining
Applications
Test & Measurement
Product details
| Overall Length | - |
| Centreline Spacing | - |
| Connector Type | Spring Probe |
| Current Rating | 3A |
| Spring Force Working Travel | - |
| Product Range | S25-XX2 Series |
| Spring Force Initial | - |
| Connector Tip Style | - |
Other details
| Brand | HARWIN |
| Part Number | S25-022 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
