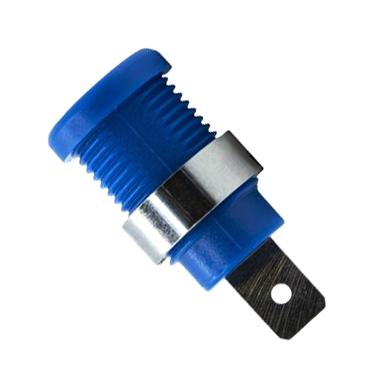

BU-31610-6 is a screw-in safety banana jack with a ¼" quick connect. Mates with all standard 4mm banana plugs (shrouded, unshrouded, or retractable).
- 1/4" (6.4mm) x .032" (.81mm) fast-on connector or wire can be soldered to the terminal
- Mounting hole size is 15/32" (11.9mm), can mount thru panels up to .4" (10mm) thick
- Nylon housing and nickel plated brass contact
- 35A, 1000V, CAT III rated
- Blue colour safety banana jack
Other details
| Brand |
MUELLER ELECTRIC |
| Part Number |
BU-31610-6 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Enhanced Product Overview EN |
|
