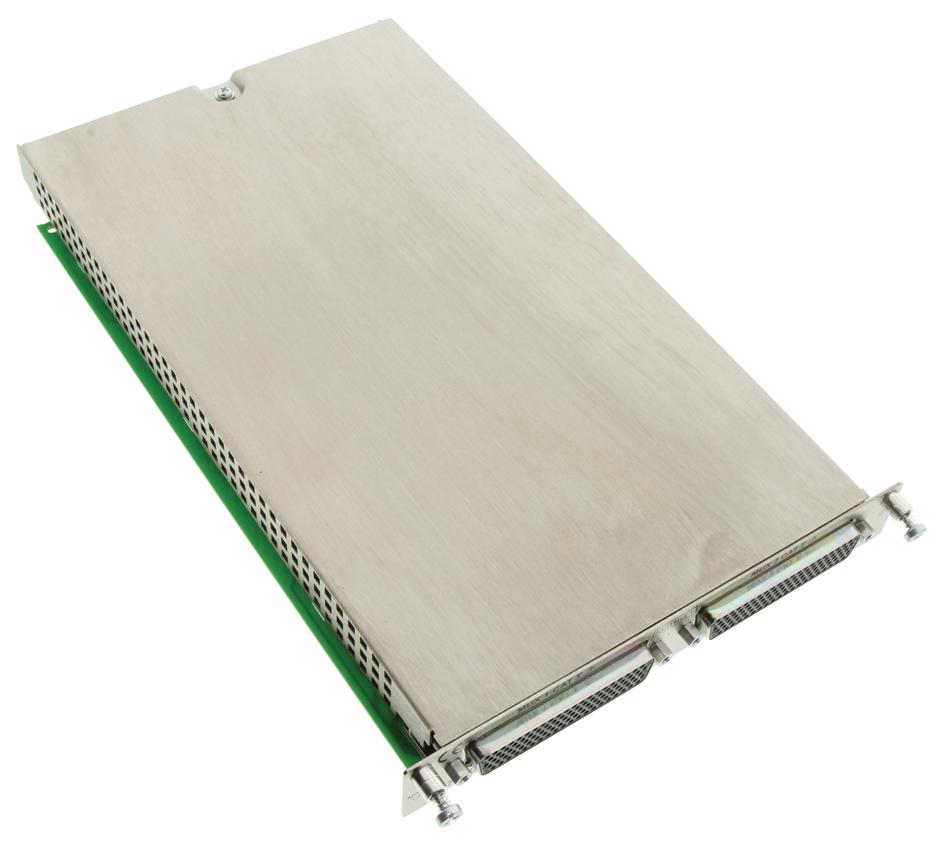

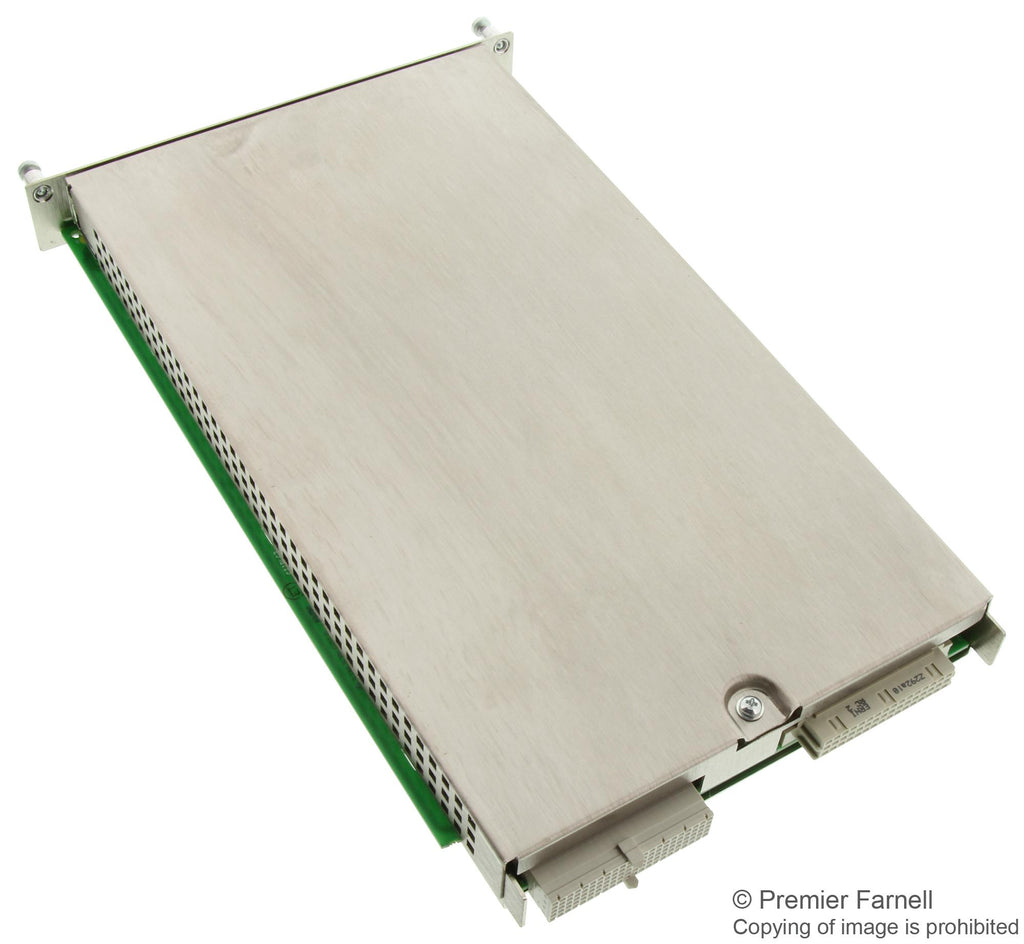

The 3722 is a high density Multiplexer Card offers two independent banks of 1 x 48 two-pole multiplexers, which is ideal for applications that require a high channel count. The two banks can automatically be connected to the series 3700A mainframe backplane and optional DMM through the analogue backplane connection relays. This connection allows the mainframe to reconfigure the card as a single 1 x 96 two-pole multiplexer or to enable card-to-card expansion for even larger configurations. Another feature of this card is the latching electromechanical relays. It can accommodate 300V, 1A switched signal levels. This device uses two 104-pin D-sub connectors for signal connections.
- Relay closures stored in on-board memory
- Latching electromechanical relays
- Scan and measure over 110 channels/second
- 300V, 1A Switched or 2A carry signal capacity (60W, 125VA)
- 1µV and 100pA Offsets
- 25MHz Bandwidth
Applications
Industrial, Signal Processing
Footnotes In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
Product details
| Accessory Type |
Multiplexer Card |
| For Use With |
Keithley 3700 & 3700A Series Mainframes |
| Product Range |
- |
Other details
| Brand |
KEITHLEY |
| Part Number |
3722 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Application Note EN |
|
| Manufacturer Catalogue EN |
|
