| ₹ 477175.42 includes GST and import duties. | |
| B2B customers can avail ₹ 72769.25 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

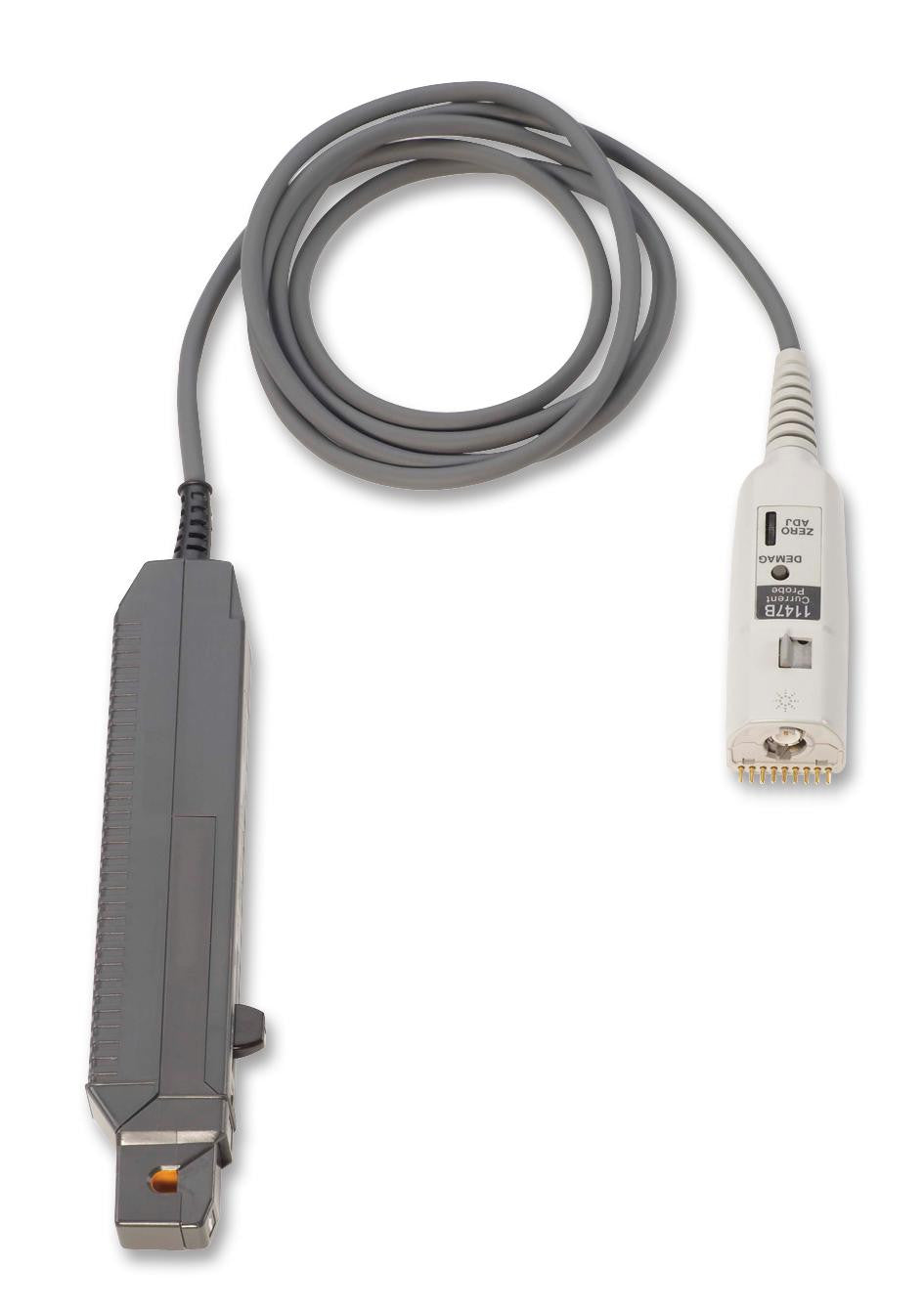

The Keysight 1147B is a wide bandwidth, active current probe for InfiniiVision and Infiniium oscilloscopes. The probe features flat bandwidth (DC-50MHz), low noise (<2.5 mA rms) and low circuit insertion loss. The 1147B is ideal for capturing transient current signals such as those found in motor controllers, switching power supplies, inverters and current amplifiers driving inductive loads.
- Wide bandwidth: DC to 50MHz
- High S/N ratio, low current measurement capability
- 15A peak, 15 ADC, 10 Arms continuous, 30A peak non-continuous
- Easy protect function at excessive input
- Demagnetizing switch to remove any residual magnetism that builds up in the magnetic core
- Compatible with high impedance AutoProbe interface
Applications
Sensing & Instrumentation, Metering, Test & Measurement
Product details
| Meter Side Connector | Keysight AutoProbe Interface |
| Current Range Min | - |
| Current Range Max | 15A |
| Product Range | - |
| Probe Side Connector | Current Clamp |
| For Use With | Keysight 3000 X, 4000 X, 5000, 6000, 7000 Series Oscilloscopes |
Other details
| Brand | KEYSIGHT TECHNOLOGIES |
| Part Number | 1147B |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 467631.91 |
| 3-5 | ₹ 462860.16 |
| 5-10 | ₹ 453316.65 |
| 10+ | ₹ 443773.14 |
Bulk discount will be automatically applied during checkout based on quantity.
