Description

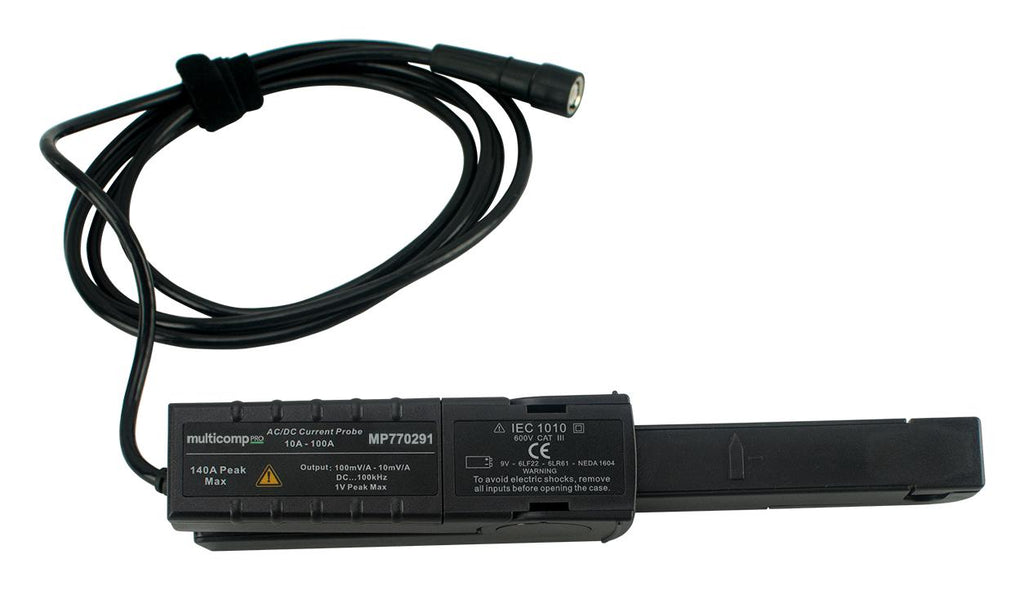

The MP770291 from Multicomp Pro is an AC-DC current probe, featuring a wide measuring range of 0.05A to 100A.
- Conversion ratio: 100mA/V 10mA/V
- DC ~100kHz bandwidth
- 11.8mm (max) jaw size
- Features a BNC connector, for use with all types of oscilloscopes
- Zero adjustment knob; demagnetization and zero adjustment
- >=1MR and <=100pF load impedance
- 0.01R input impedance
- 9V alkaline battery
- Dimensions: 231 x 36 x 67mm
- Device weight: 330g (battery included)
Product details
| Meter Side Connector | BNC Plug |
| Probe Side Connector | Current Clamp |
| Current Range Max | 100A |
| Current Range Min | 50mA |
| For Use With | Oscilloscopes |
| Product Range | - |
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP770291 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Operating Instructions EN | |
