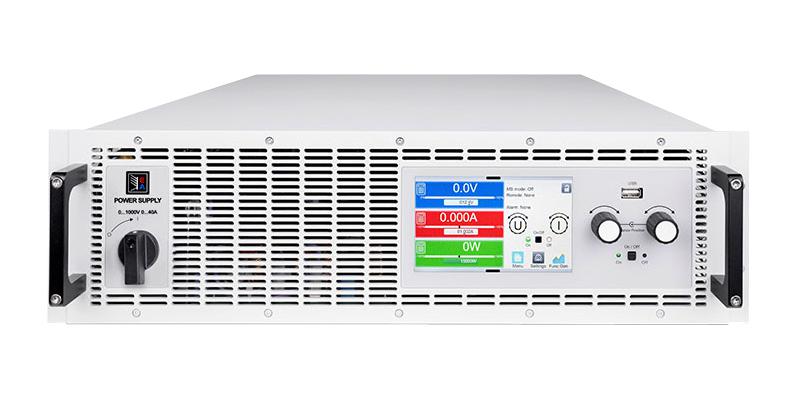

EA ELEKTRO-AUTOMATIK EA-PSI 10500-30 3U Modular Power Supply, 1 Outputs, 5 kW, Programmable, 0 V, 500 V, 30 A

EA-PSI 10500-30 3U is a PSI 10000 3U series programmable DC power supply. The DC laboratory power supply convert the energy from the grid into a regulated DC voltage with a high efficiency. The DC supply operates as a flexible output stage with a constant power characteristic (auto ranging), and a wide voltage, current range. To achieve higher power and current unit is equipped with a host-server bus. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions.

• Wide range input, 208VAC - 480VAC +10 % 3ph AC
• Active power factor correction, typical 0.99
• Power range from 0 - 5000W
• Voltage from 0 - 500VDC
• Current range from 0 - 30A
• Regulation mode CV, CC, CP, CR with fast crossover
• Digital regulation, high resolution with 16bit ADCs and DACs, control speed: normal, fast, slow
• Colour 5â�� TFT display with touch control and intuitive user interface
• Photovoltaics test mode
• Command languages and drivers: SCPI and Modbus, LabVIEW, IVI

Contents

1 x power supply device, 2 x remote sensing plugs, 1 x 1.8m USB cable, 1 x set of DC input covers, 1 x sense terminal cover, 1 x USB stick with documentation and software, 1 x AC connector plug (clamp type), 1 x set for AC cable strain relief.
