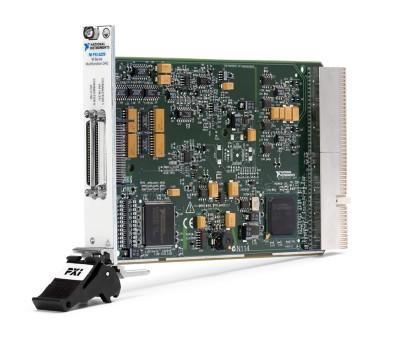

The PXI-6229 offers analogue I/O, correlated digital I/O, two 32-bit counter/timers, and digital triggering. The device delivers low-cost, reliable DAQ capabilities in a wide range of applications from simple applications in laboratory automation, research, design verification/test, and manufacturing test. You can add sensor and high-voltage measurement capability to your device with SCC or SCXI signal conditioning modules. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.
Product details
| Product Type:
Multifunction I/O Module
|
| Sampling Rate:
250kSPS
|
| Resolution (Bits):
16bit
|
| No. of Input Channels:
32Channels
|
| No. of Output Channels:
4Channels
|
| No. of I/O's:
48I/O's
|
| Supply Voltage Range:
± 200mV to ± 10V
|
| Operating Temperature Range:
0°C to +55°C
|
| For Use With:
NI PXI Controllers
|
| Product Range:
PXI-6229
|
Other details
| Brand |
NI |
| Part Number |
779630-01 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
