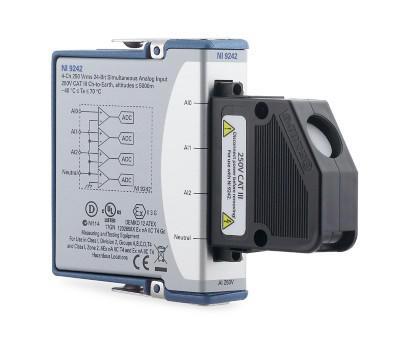

The NI-9242 performs single-ended analogue input. The wide measurement range makes it ideal for high-voltage measurement applications such as phasor measurements, power metering, power quality monitoring, standard potential transformers, and motor test. You can also perform transient and harmonic analysis with high-speed simultaneous sampling. The NI-9242 offers three channels, so you can connect single- or three-phase measurement configurations such as WYE and delta. You can incorporate the NI-9242 into systems to meet standards such as IEC 61010-1, C37.90 and C37.60, IEC 60255-22-(1:7), IEC 60255-1, C37.188 Class M and P, EMC section of IEC 60870, EMC sections of IEC 61850, IEC 61000-4-30 Class S, and IEC 61000-4-7.
Product details
| Product Type:
C Series Voltage Input Module
|
| Sampling Rate:
50kSPS
|
| Resolution (Bits):
24bit
|
| No. of Input Channels:
3Channels
|
| No. of Output Channels:
-
|
| No. of I/O's:
-
|
| Supply Voltage Range:
400Vrms
|
| Operating Temperature Range:
-40°C to +70°C
|
| For Use With:
NI CompactDAQ/CompactRIO Systems
|
| Product Range:
NI-9242
|
Other details
| Brand |
NI |
| Part Number |
783107-01 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
