Description

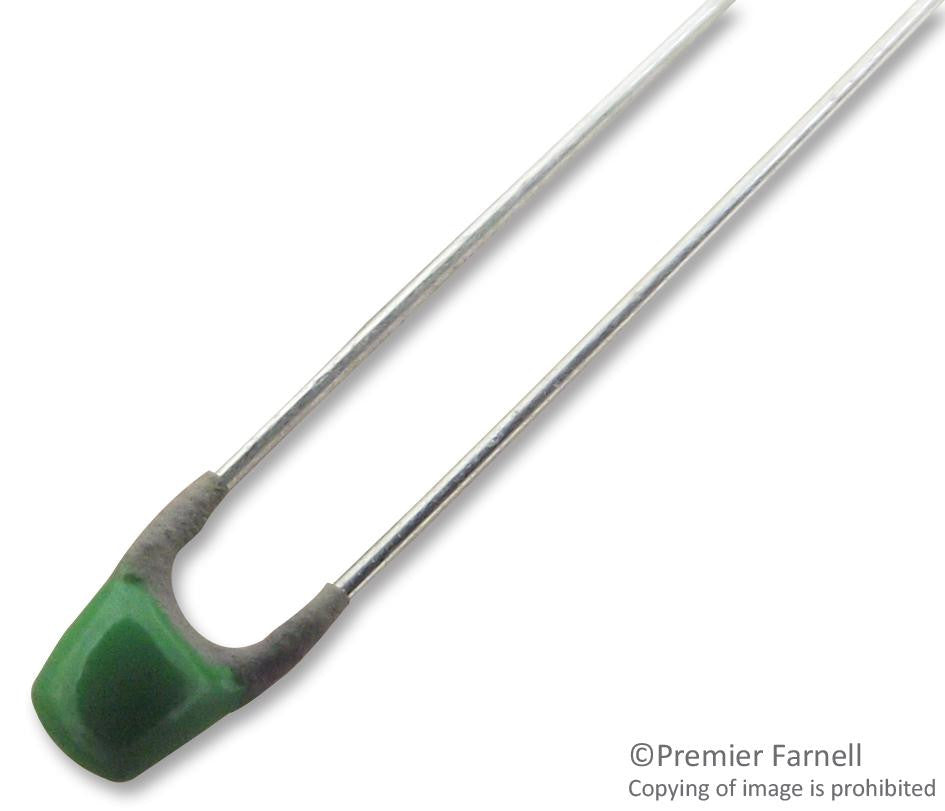

The NTCLE203E3 series from Vishay are radial leaded, accuracy line NTC thermistors. These device consists of a chip with two tinned nickel leads. The thermistors are coated and colour band marked. Typical applications include temperature measurement, sensing and control and for on-board sensing or accurate remote sensing applications.
- Accurate over a wide temperature range
- High stability over a long life
- Excellent performance ratio
- Low heat conductivity through 0.4mm Ni-leads
- UL recognized, file E148885
- Resistance value at 25�C ranges from 2Kohm to 470Kohm
- �1%, �2%, �3% and �5% resistance tolerance available
- Beta value (B25/85value) range from 3528K to 4570K
- Tolerance on B25/85-value ranges from �0.5% to �2%
- Operating temperature range from -40�C to 125�C
Applications
Sensing & Instrumentation, Industrial, Consumer Electronics, Portable Devices
Product details
| Operating Temperature Min | -40�C |
| Thermistor Case Style | - |
| Operating Temperature Max | 125�C |
| Zero Power Resistance at 25�C | 10kohm |
| Product Range | NTCLE Series |
| Automotive Qualification Standard | - |
| Thermistor Mounting | Through Hole |
| Thermistor Terminals | Radial Leaded |
| Beta Value (K) | 3977K |
Other details
| Brand | VISHAY |
| Part Number | NTCLE203E3103GB0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
