| ₹ 1466.31 includes GST and import duties. | |
| B2B customers can avail ₹ 223.61 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

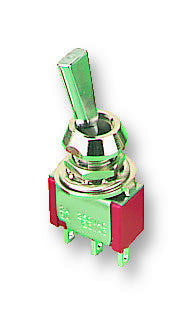

The 7201P3YZQE is a double-pole double-throw (DPDT) Miniature Toggle Switch with solder lug termination, 0.45-inch high flatted anti-rotation chrome plated brass actuator, 0.35-inch high keyway bushing and ON-NONE-ON function. The 7000 series switch has silver plated coin silver contact and stainless steel housing. Epoxy terminal seal is compatible with bottom-wash cleaning.
- 1000Vrms at sea level Minimum dielectric strength
- -30 to 65°C Operating temperature range
- Solderability as per MIL-STD-202F method 208D or EIA RS-186E method 9 (1 hour steam aging)
Applications
Communications & Networking, Sensing & Instrumentation, Medical
Product details
| Contact Voltage DC Nom | 28V |
| Switch Terminals | Solder |
| Illumination | Non Illuminated |
| Switch Operation | On-On |
| Switch Mounting | Panel |
| Product Range | 7000 Series |
| Contact Voltage AC Nom | 250V |
| Contact Current Max | 5A |
| Contact Configuration | DPDT |
Other details
| Brand | C & K COMPONENTS |
| Part Number | 7201P3YZQE |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1436.98 |
| 3-5 | ₹ 1422.32 |
| 5-10 | ₹ 1392.99 |
| 10+ | ₹ 1363.67 |
Bulk discount will be automatically applied during checkout based on quantity.
