Description

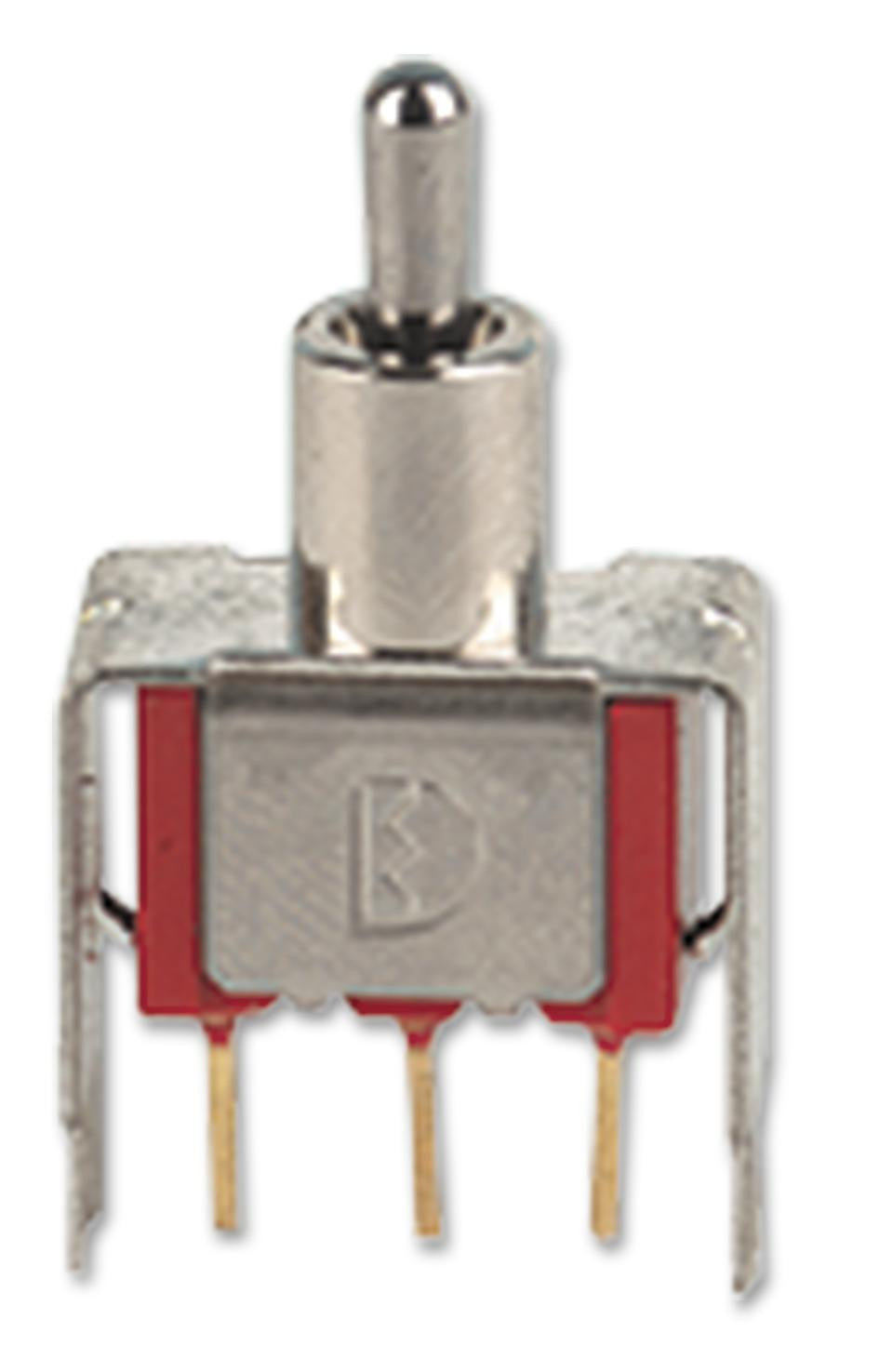

The 1MS1T2B4VS2RES is a single-pole double-throw (SPDT) horizontal miniature Toggle Switch with 11.68-inch high V-bracket termination, ON-NONE-ON function, 5.08-inch high chrome plated brass actuator and 7.10-inch high keyway (non-THD) nickel plated brass bushing. The 1MS1 series switch has gold plated contact, stainless steel housing and tin plated brass switch support.
- Epoxy seal
- 10mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 1000Vrms at sea level Dielectric strength
- -30 to +85�C Operating temperature range
Applications
Industrial
Product details
| Contact Voltage DC Nom | 20V |
| Illumination | Non Illuminated |
| Switch Operation | On-On |
| Contact Voltage AC Nom | 20V |
| Switch Mounting | Through Hole |
| Switch Terminals | Solder |
| Contact Configuration | SPDT |
| Product Range | 1MS Series |
| Contact Current Max | 100mA |
Other details
| Brand | MULTICOMP |
| Part Number | 1MS1T2B4VS2RES |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
