Description

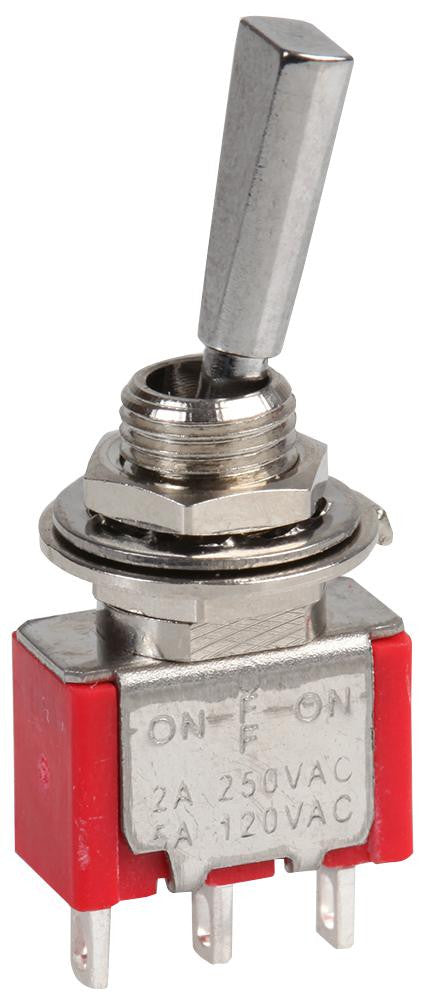

The 1MS3T6B11M1QE is a single-pole double-throw (SPDT) miniature Toggle Switch with silver-plated contacts and chrome-plated brass actuator. This 1MS3 series panel mount switch features nickel-plated brass bushing, stainless steel housing, diallyl phthalate (DAP) case and standard epoxy seal.
- 10mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 1000VRMS at sea level Dielectric strength
- 40000 Make and break cycles
- -30 to 85�C Operating temperature range
Applications
Industrial
Product details
| Contact Voltage DC Nom | 28V |
| Illumination | Non Illuminated |
| Switch Operation | On-Off-On |
| Contact Voltage AC Nom | 250V |
| Switch Mounting | Panel |
| Switch Terminals | Solder |
| Contact Configuration | SPDT |
| Product Range | 1MS Series |
| Contact Current Max | 5A |
Other details
| Brand | MULTICOMP |
| Part Number | 1MS3T6B11M1QE |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
