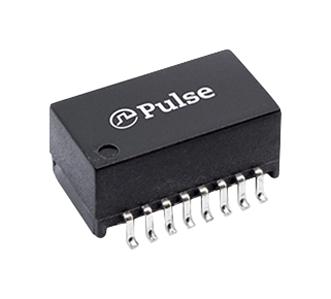

HX2019NL Ethernet & LAN Transformer , 10/100 Base-TX PoE, 1 Port, 1:1, 350 µH, 1.5 kV, Surface Mount product from PULSE ELECTRONICS with the model number HX2019NL
Product details
| Compatible With |
10/100 Base-TX PoE |
| No. of Ports |
1 Port |
| Turns Ratio |
1:1 |
| Inductance |
350µH |
| Isolation Voltage |
1.5kV |
| Transformer Mounting |
Surface Mount |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
| Product Range |
- |
Other details
| Brand |
PULSE ELECTRONICS |
| Part Number |
HX2019NL |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
