Description

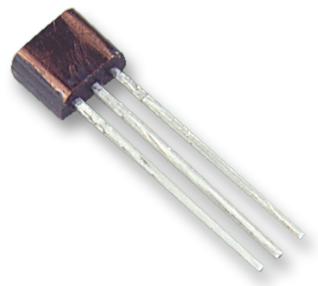

The ZTX751 is a PNP medium Power Transistor with matte tin-plated terminals, moulded plastic case, solderable terminals as per MIL-STD-202, method 208 standard.
- UL94V-0 Flammability rating
- Green product
- AEC-Q101 Qualified
- PPAP capable
Applications
Automotive
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Transistor Polarity: PNP |
| Collector Emitter Voltage Max: 60V |
| Continuous Collector Current: 2A |
| Power Dissipation: 1W |
| Transistor Case Style: E-Line |
| Transistor Mounting: Through Hole |
| No. of Pins: 3Pins |
| Transition Frequency: 140MHz |
| DC Current Gain hFE Min: 200hFE |
| Operating Temperature Max: 200°C |
| Product Range: - |
| Qualification: - |
| MSL: - |
Other details
| Brand | DIODES INC. |
| Part Number | ZTX751 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 105.53 |
| 3-5 | ₹ 104.45 |
| 5-10 | ₹ 102.3 |
| 10+ | ₹ 100.14 |
Bulk discount will be automatically applied during checkout based on quantity.
