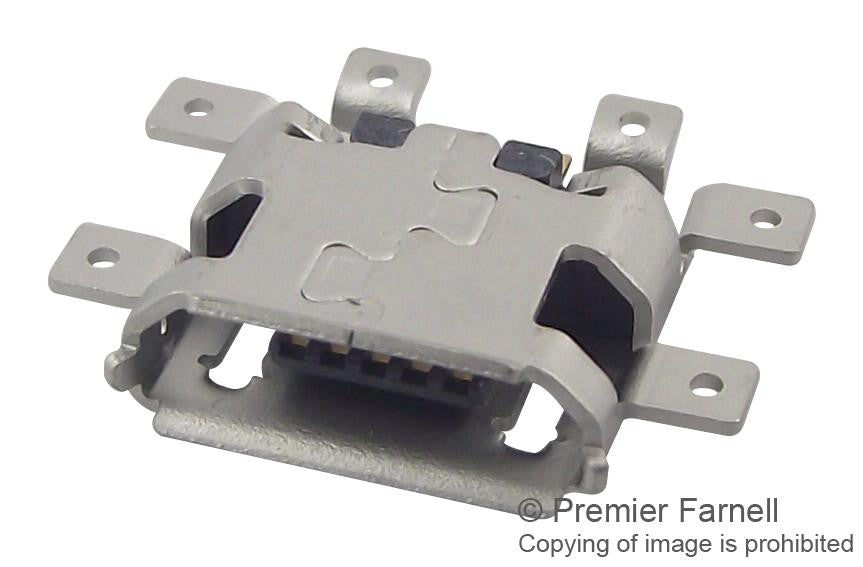

Description
- Small footprint
- Stainless steel shell (0.30mm [.019"] thick)
- Over-mould process used for receptacles
- 0.30mm (.019") thick laser-welded stainless-steel shell of receptacle
- Passive latching window with angular tabs (meets USB 2.0 requirements) on receptacle shell
- Rear shield of stainless steel shell in standard-mount versions
- Pick and place area (3.00mm diameter [.118"]) on connector shell
- Halogen-free receptacles
- Halogen-free receptacles
Product details
| No. of Positions | 5Ways |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Orientation | Right Angle |
| Connector Mounting | Surface Mount |
| USB Standard | USB 2.0 |
| USB Connector Type | Micro USB Type B |
| Product Range | - |
| Gender | Receptacle |
Other details
| Brand | MOLEX |
| Part Number | 47491-0001 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Product Change Notice EN | |
