Description
Tilta Nucleus-M Overview
- 1Description
- 2Tilta Nucleus-M FIZ Hand Unit
- 3Tilta Nucleus-M FIZ Lens Control Motor
- 4Tilta DSLR Lens Follow Focus Adapter
- 5Tilta Nucleus-M D-Tap to 7-Pin Motor Power Cable
- 6Tilta Nucleus-M 7-Pin Motor-to-Motor Connection Cable (21.65")
- 7Tilta Nucleus-M Follow Focus Marking Disk
- 8Tilta Lanyard for Nucleus-M FIZ Hand Unit
- 9Tilta Nucleus-M Battery Charger

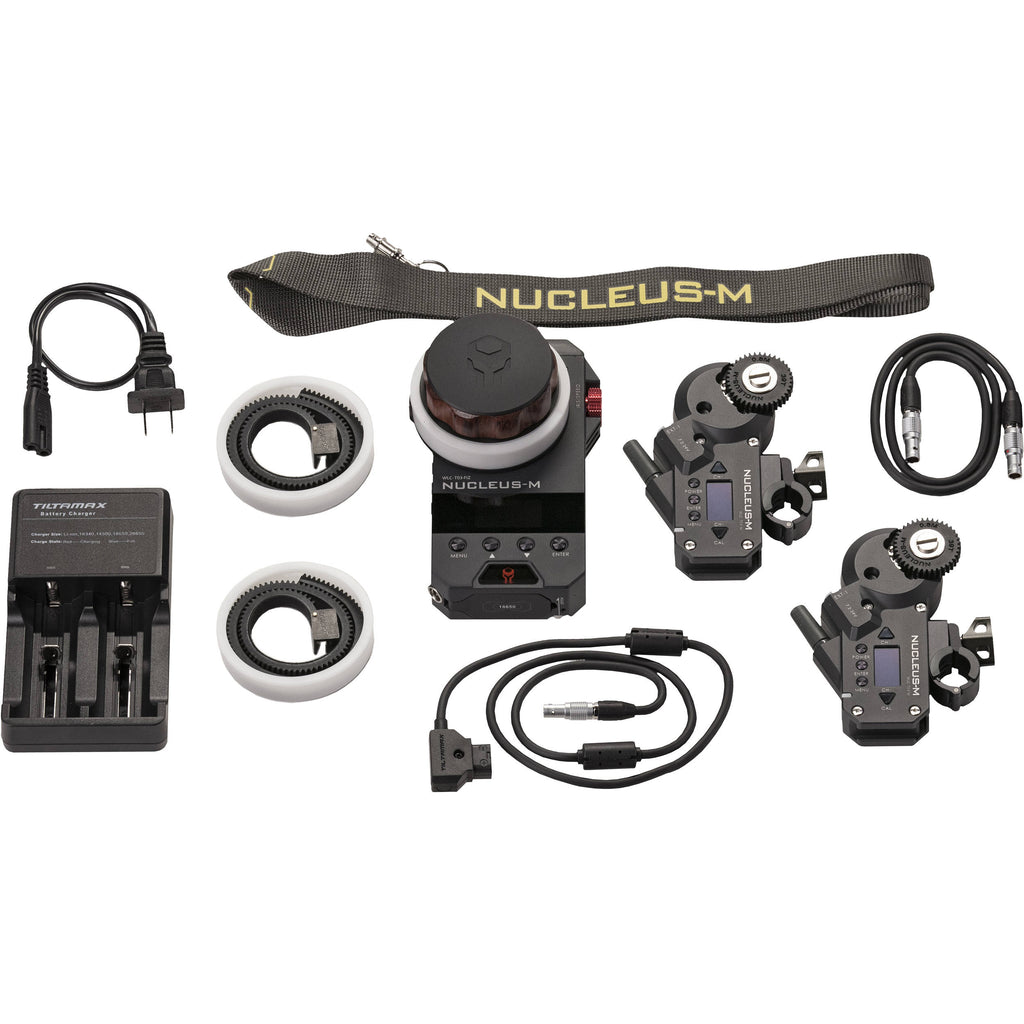

The Tilta Nucleus-M Wireless Lens Control System Partial Kit IV contains the essential elements for pulling focus and iris wirelessly. The kit includes the Nucleus-M FIZ hand unit controller, two Nucleus-M motors, two removable lens belts (DSLR Lens Follow Focus Adapters), two motor power cables, two marking disks for the hand unit, a lanyard for the hand unit, and a battery charger unit. The system enables an AC to pull focus and iris on a prime lens. If you are using a lens that does not have standard cine-style gears, then use the included lens belts to add gears to your lens.
This partial kit is a dual-axis system, typically controlling focus and iris, but the hand unit will allow you to control an additional motor (not included) for zoom control when using a zoom lens. The system can wirelessly pull focus from up to 1000' away, and the batteries can power the hand unit for approximately 10 hours on a single charge (batteries not included). The first motor is powered via the included D-Tap to 7-pin cable; the second motor daisy-chains to the fist via the 7-pin to 7-pin cable for power. The lanyard attaches to the hand control unit, allowing you to wear it around your neck.
Tilta Nucleus-M FIZ Hand Unit
The Tilta Nucleus-M FIZ Hand Unit provides three-channel wireless focus, iris, and/or zoom control as part of the Nucleus-M lens control system. The hand unit features a large wood-edged focus knob, a zoom joystick, an iris wheel, and a backlit LED display window.
Select from low, medium, and maximum transmission ranges to best suit your working distance and battery reserves. The Nucleus-M FIZ Hand Unit's choice of 15 2.4 GHz channels minimizes the chance of interference in high-traffic areas. Set up to 10 soft stops with vibration for focus pulls, and calibrate lenses automatically or manually.
Wireless run/stop is available for select cameras using the hand unit and separately available cables. The hand unit is powered by two separately available lithium-ion batteries and can operate for up to 10 hours on a single charge.
Features
- 3-channel wireless lens control unit
- Control focus, iris, and/or zoom
- Short-, medium-, and long-range transmission options
- 15-channel selection minimizes outside interference
- Powered via two 18650 rechargeable lithium-ion batteries (not included)
- Up to 10-hour runtime on a single charge
- Ambidextrous design with large wood-edged knob
Tilta Nucleus-M FIZ Lens Control Motor
The compact Tilta Nucleus-M FIZ Lens Control Motor features an integrated motor drive, eliminating the space of a separate drive box and enabling a quicker setup. Power the motor using a separately available D-Tap cable and power source, or daisy-chain to another motor using a 7-pin cable.
The Nucleus-M wireless motor includes a cine standard 0.8 Mod drive gear and a 19mm rod adapter with a bushing for mounting onto a 15mm rod. The motor features automatic or manual calibration, a display window, and high, medium, and low torque settings.
Features
- Brushless motor with an integrated motor drive
- Cine-lens standard 0.8 Mod, 35-tooth, 32-pitch gear
- Motor clamps onto 19mm or 15mm rods (with included bushing)
- Power via separately available D-Tap cable or daisy-chain to additional motors
- Automatic and manual calibration
- For focus, iris, or zoom control
- High, medium, and low torque settings
- Status display window
Tilta DSLR Lens Follow Focus Adapter
Use this DSLR Lens Follow Focus Adapter from Tilta to tie around your DSLR lens and control focus with any of Tilta's follow focus systems such as the Nucleus-Nano or Nucleus-M. The adjustable, zip tie-style adapter ring is made of silicone and plastic and ties around most DSLR lenses. The teeth lock into the follow focus motor's gear for smooth adjustments.
Tilta Nucleus-M D-Tap to 7-Pin Motor Power Cable
This 23" Nucleus-M D-Tap to 7-Pin Motor Power Cable from Tilta is designed to power your Nucleus-M lens control motor using a D-Tap power source.
After powering one motor with this cable, other motors may be daisy-chained to each other.
Tilta Nucleus-M 7-Pin Motor-to-Motor Connection Cable (21.65")
The Tilta Nucleus-M 7-Pin Motor-to-Motor Connection Cable is 21.65" long and provides power and control between two Nucleus-M follow focus motors. Please note, you will still need to power one of the motors via a D-Tap to 7-pin cable, or a 3-pin to 7-pin cable connected to a power source. Neither the motors, power cable, nor power source is included.
Tilta Nucleus-M Follow Focus Marking Disk
The Tilta Follow Focus Marking Disk is compatible with the Nucleus-M FIZ hand unit. Use this white plastic disk for creating custom focus marks used for pulling focus.
Tilta Lanyard for Nucleus-M FIZ Hand Unit
The Tilta Nucleus-M Lanyard is compatible with the Nucleus-M FIZ control hand unit. Use this strap to carry the control unit around your neck or to drape it from a stand. Lanyard features include a swiveling quick release clip and a wide nylon strap.
Tilta Nucleus-M Battery Charger
The Tilta Nucleus-M Battery Charger can charge one to four batteries used in the handset and handles of the Nucleus-M wireless lens control system. This versatile charger can be powered using AC, 5V USB, or 12V vehicle power.
Compatible with 18650 lithium-ion and select other batteries, the charger features LED status lights and spring-loading for a secure battery fit.
Compatible Batteries
18650, 18490, 18350
17670, 17500
16340, 14500, 10400
RCR123
NiMH/NiCd: AA, AAA, AAAA, C
In the Box
- Tilta Nucleus-M FIZ Hand Unit
- Limited 2-Year Mechanical Warranty
- Limited 1-Year Electrical Warranty
- 2 x Tilta Nucleus-M FIZ Lens Control Motor
- 19mm Rod Adapter
- 19mm to 15mm Bushing
- Limited 2-Year Mechanical Warranty
- Limited 1-Year Electrical Warranty
- 2 x Tilta DSLR Lens Follow Focus Adapter
- Limited 2-Year Warranty
- Tilta Nucleus-M D-Tap to 7-Pin Motor Power Cable
- Limited 2-Year Warranty on Mechanical Parts
- Limited 1-Year Warranty on Electrical Parts
- Tilta Nucleus-M 7-Pin Motor-to-Motor Connection Cable (21.65")
- Limited 30-Day Warranty
- 2 x Tilta Nucleus-M Follow Focus Marking Disk
- Limited 2-Year Warranty
- Tilta Lanyard for Nucleus-M FIZ Hand Unit
- Limited 2-Year Mechanical Warranty
- Tilta Nucleus-M Battery Charger
- AC Power Cable
- Limited 2-Year Mechanical Warranty
- Limited 1-Year Electrical Warranty
Not in the Box
- Essential Batteries & Power (Not Included)
- Description
- Tilta Nucleus-M FIZ Hand Unit
- Tilta Nucleus-M FIZ Lens Control Motor
- Tilta DSLR Lens Follow Focus Adapter
- Tilta Nucleus-M D-Tap to 7-Pin Motor Power Cable
- Tilta Nucleus-M 7-Pin Motor-to-Motor Connection Cable (21.65")
- Tilta Nucleus-M Follow Focus Marking Disk
- Tilta Lanyard for Nucleus-M FIZ Hand Unit
- Tilta Nucleus-M Battery Charger
Tilta Nucleus-M FIZ Hand Unit Specs
| Operating Frequency | 2.4 GHz |
| Maximum Transmission Distance | 492 to 984' / 150 to 300 m |
| Transmission Channels | 15 |
| Emission Power | 30 to 100 MW |
| Current | 0.15 A |
