- Focused Cardioid Polar Pattern
- 4mm Diameter Microphone Element
- 135 dB Maximum SPL
- Unbreakable 360� Bendable Boom
- Flexible Ear Hooks for Left or Right Fit
- Interchangeable X-Connector System
- Unobtrusive Appearance

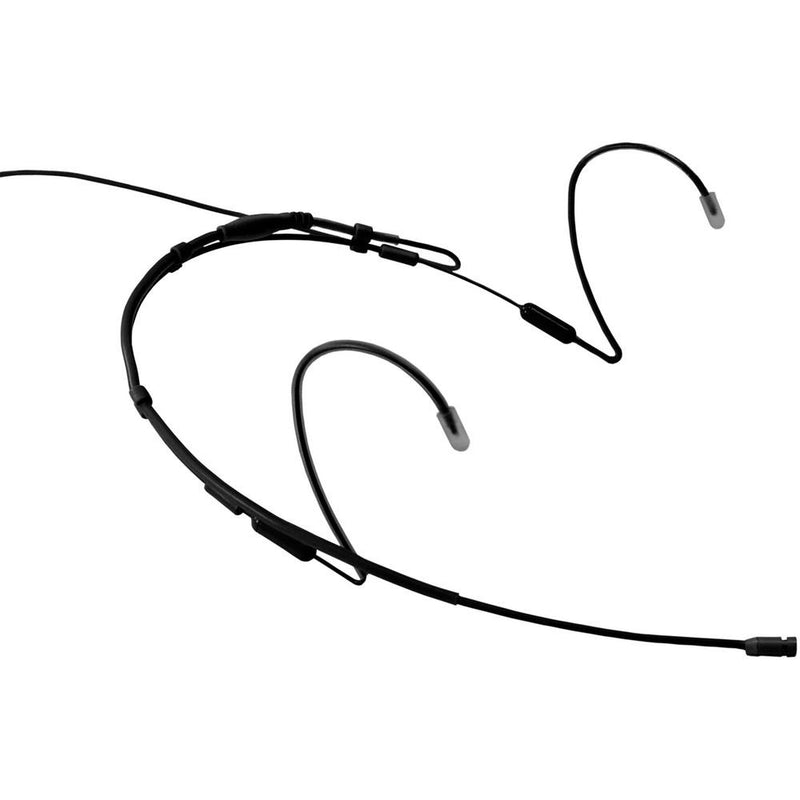

The black Series8 Cardioid Headset Microphone from Point Source Audio is designed for applications where more than one microphone is required, such as for live performances and recordings. The cardioid pattern of the microphone will pick up sound from one direction, so it can be focused on the sounds of the person wearing the microphone. The unit features a 4mm diameter microphone element that can be positioned at the corner of the mouth to maintain an unobtrusive appearance.
The microphone features a length-adjustable unbreakable boom that can bend up to 360� and includes flexible ear hooks for wearing the headset on the left or right ear. It offers optimal gain amplification before feedback and can handle sounds with a maximum SPL of 135 dB. The microphone can connect to a wide range of wireless microphone transmitters using its interchangeable X-Connector system. This particular unit comes with an interchangeable 3-pin mini connector for AKG and Audix transmitters. The microphone also comes with a foam windscreen, a body clip, and a storage box.
In the Box
Point Source Audio Series8 Cardioid Headset Microphone with Interchangeable 3-Pin Mini Connector for AKG and Audix Wireless Transmitters (Black)
| Element | Back electret condenser |
| Pattern | Cardioid |
| Microphone Diameters | 4 mm |
| Frequency Response | 160 to 14,000 Hz |
| Sensitivity | -70 dB �3 dB (0 dB = 1 V/microbar at 1,000 Hz) |
| Maximum SPL | 135 dB SPL |
| Output Impedance | 5,000 ? (at 1,000 Hz) |
| Operating Voltage | 1 to 10 V |
| Boom Range | 360� |
| Ear Placement | Reversible left or right |
| Connector Type | 3-pin mini connector for AKG and Audix transmitters |
| Cable Length | 48.077" (122.16 cm) + connector |
| Net Weight | 0.6 oz (17 g) |
| Packaging Info |
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 9.0 x 6.0 x 1.0" |
