Description
2N 01730-001 Overview
Implement access control, security, and authentication at an entryway with the 2N RFID Card Reader for IP Force Intercom (13.56 MHz, Secured). Compatible with 2N IP Force intercoms, this card reader extension module utilizes MIFARE 13.56 MHz, HID iClass, and NFC technology to recognize and read RFID access control cards and key fobs for secure and seamless entry.
Support
13.56 MHz cards or other carriers (optional card serial number or PAC ID is read)
ISO/IEC 14443A MIFARE Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, Ultralight, Ultralight C
ISO/IEC 14443B CEPAS, HID iClass
JIS X 6319 FeliCa
Smartphone (Android) with NFC/HCE support
Additional Features
Compatible with IP Force intercom variants with two buttons and models with pictograms
Wiegand interface
Tamper switch
Items Included

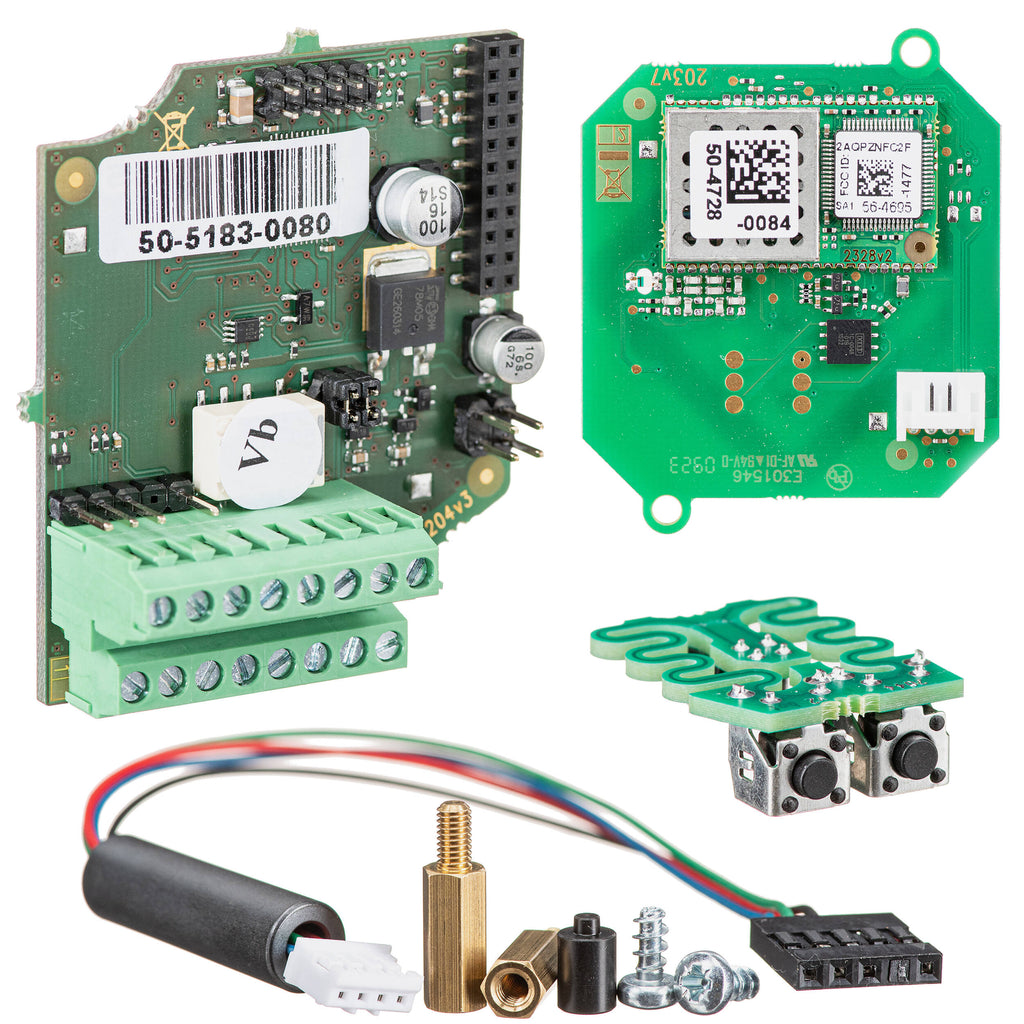

- 2N RFID Card Reader for IP Force Intercom (13.56 MHz, Secured)
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
2N 01730-001 Specs
General
| Compatibility |
Various RFID Access Cards
2N IP Force Intercom |
Inputs/Outputs
| Interfaces |
Wiegand Interface: I/O
Active Switch Output Passive Switch (NO/NC Contacts) |
Wireless
| Mobile App Compatible |
Yes: Android Only
App Name: 2N Mobile Key |
Power
| Power Source |
DC Input, PoE
|
Physical
| Mounting |
1x Surface
|
| Operating Conditions |
-40 to 131°F / -40 to 55°C at 10 to 95% Humidity
|
| Storage Conditions |
-40 to 158°F / -40 to 70°C
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
Packaging Info
| Package Weight |
0.205 lb
|
| Box Dimensions (LxWxH) |
5.6 x 4.3 x 1.3"
|
