Description

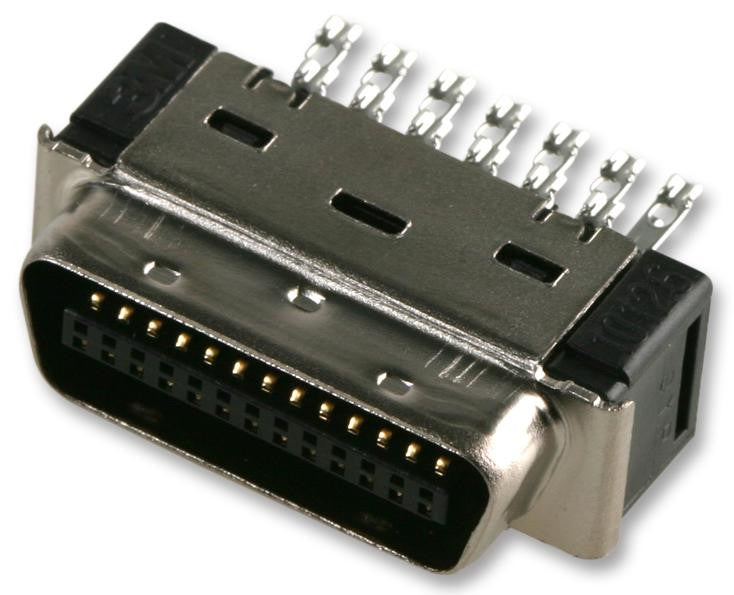

The 10136-3000PE is a 36-way 0.050-inch shielded Solder Plug Connector with 0.5�m minimum gold wiping interface, gold-plated copper alloy contacts and solder terminal. This 101 Series connector is glass reinforced polyester insulated, accepts a wide variety of discrete wire 30 to 24AWG (24, 26, 28 and 30AWG) cable construction.
- Solder cup termination requires no special tooling
- UL94V-0 Flammability rating
- 1A Current rating
- -55 to 105�C Temperature rating
Applications
Industrial
Product details
| No. of Contacts | 36Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Plug |
| Product Range | 101 Series |
| Contact Material | Copper Alloy |
| Contact Termination Type | Solder |
| Connector Mounting | Cable Mount |
Other details
| Brand | 3M |
| Part Number | 10136-3000PE |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
