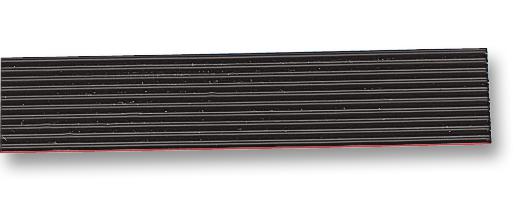

The 3319/06 is a 6-conductor black High Flex Flat Ribbon Cable, 28AWG wire on 0.050-inch centers permits mass termination to a broad line of IDC connectors. The 3319 series flat cable is made of round silver plated copper conductor, PVC jacket.
- CPR: Not Yet Qualified
- 19 Strands of high strength Cu alloy provide longest flex life available for dynamic applications
- Zippable for branching or discrete termination
- Flex life of 100 million cycles at 1-3/4" diameter
- 103R Unbalanced, 171R balanced characteristic impedance
- VW-1 Flammability rating
Applications
Industrial
Product details
| Cable Shielding |
Unscreened |
| No. of Cores |
6Core |
| Wire Gauge |
28AWG |
| Conductor Area CSA |
- |
| Reel Length (Imperial) |
- |
| Reel Length (Metric) |
- |
| Jacket Colour |
Black |
| Cable Width |
7.62mm |
| No. of Max Strands x Strand Size |
19 x 40AWG |
| Pitch Spacing |
1.27mm |
| Voltage Rating |
50V |
| Conductor Material |
Silver Plated Copper |
| Jacket Material |
PVC |
| Ribbon Cable Type |
Flat Ribbon Cable |
| Product Range |
3319 Series |
Other details
| Brand |
3M |
| Part Number |
3319/06 |
| Quantity |
1 Metre |
| Technical Data Sheet EN |
 |
