Description

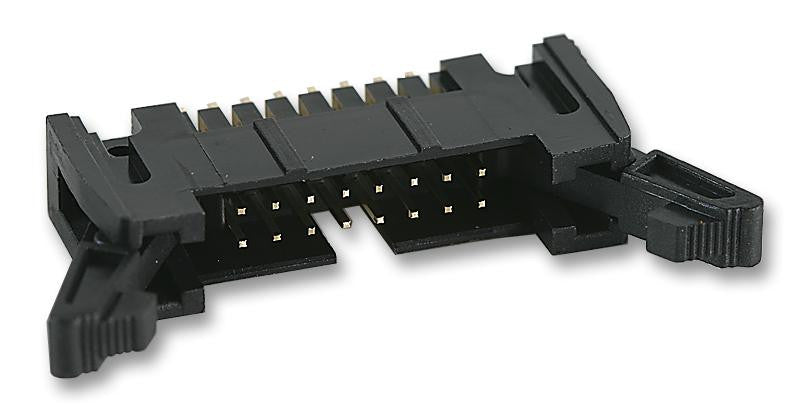

The N3428-6302RB is a 20-way 0.100 x 0.100-inch Pak 100 4-wall Straight Header with long roll pin latch/ejector, gold-plated copper alloy contacts and through hole termination. This 3000 series header is glass filled polyester (PCT) insulated, suitable for reflow soldering using paste in hole techniques. This has military (with 3M's 3518 polarizing key) and centerbump polarization, mounting holes for securing header to board.
- Black colour
- UL94V-0 Flammability rating
- 1A Current rating
- >1 x 10?R at 500VDC Insulation resistance
- -55 to 105°C Temperature rating
Applications
Industrial
Product details
| No. of Contacts | 20Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | 3000 Series |
| Contact Material | Copper Alloy |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
Other details
| Brand | 3M |
| Part Number | N3428-6302RB |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
