Description
8Sinn 8-VCTUSRFK Overview
- 1Description
- 28Sinn VCT Universal Shoulder Base Plate
- 38Sinn Side Arm for Shoulder Rigs
- 48Sinn Dual Side Grip

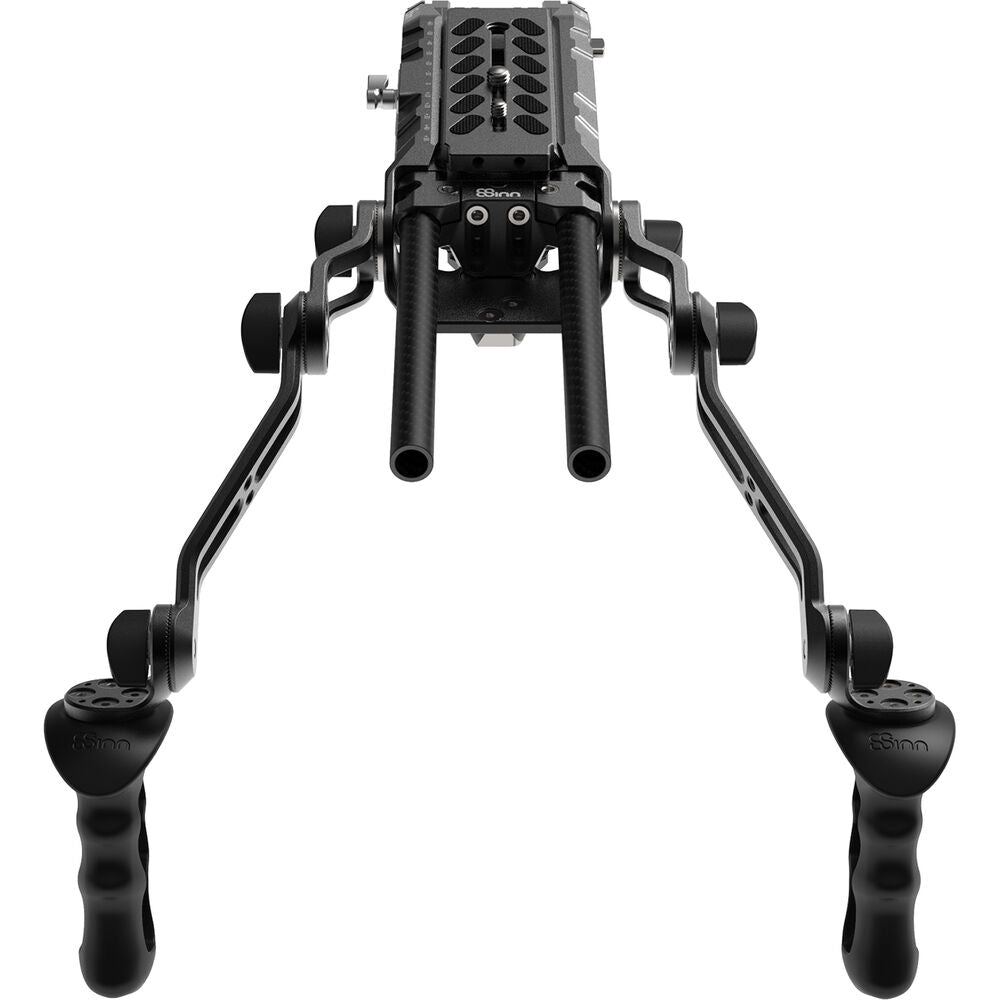

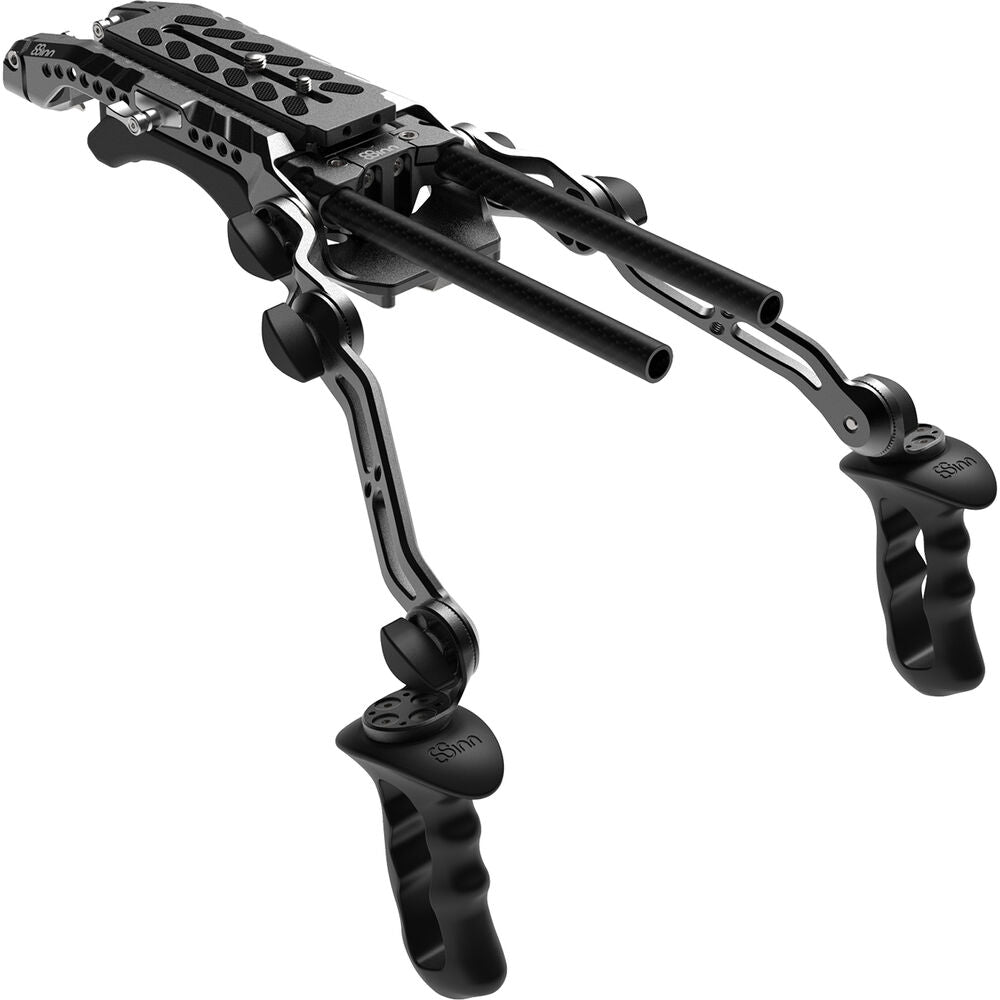

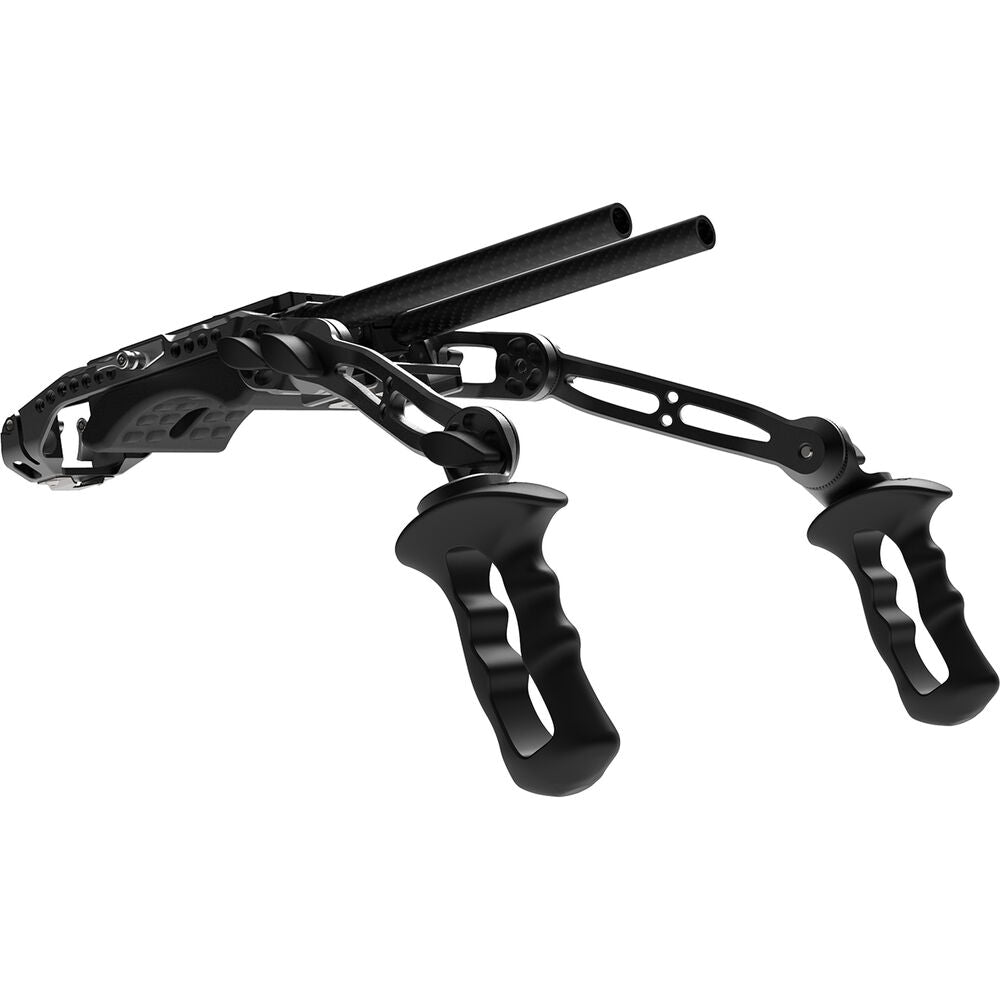

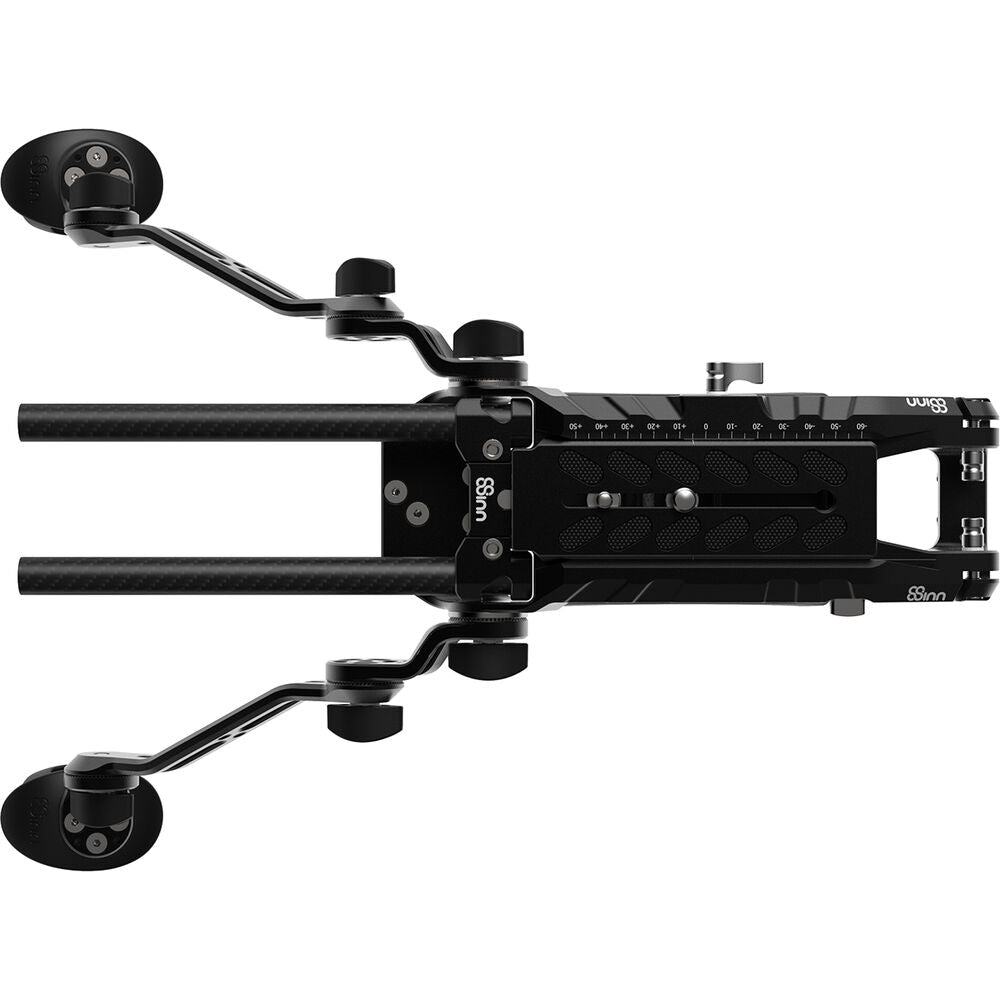

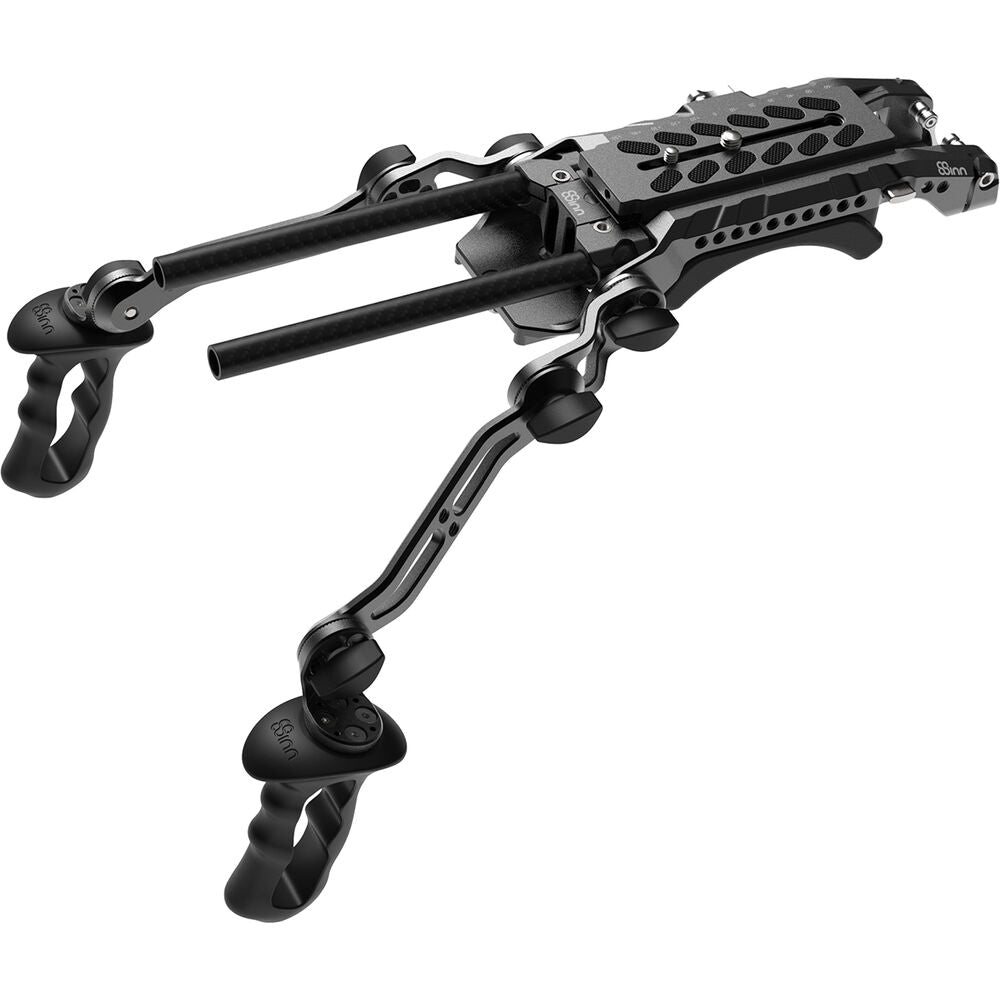

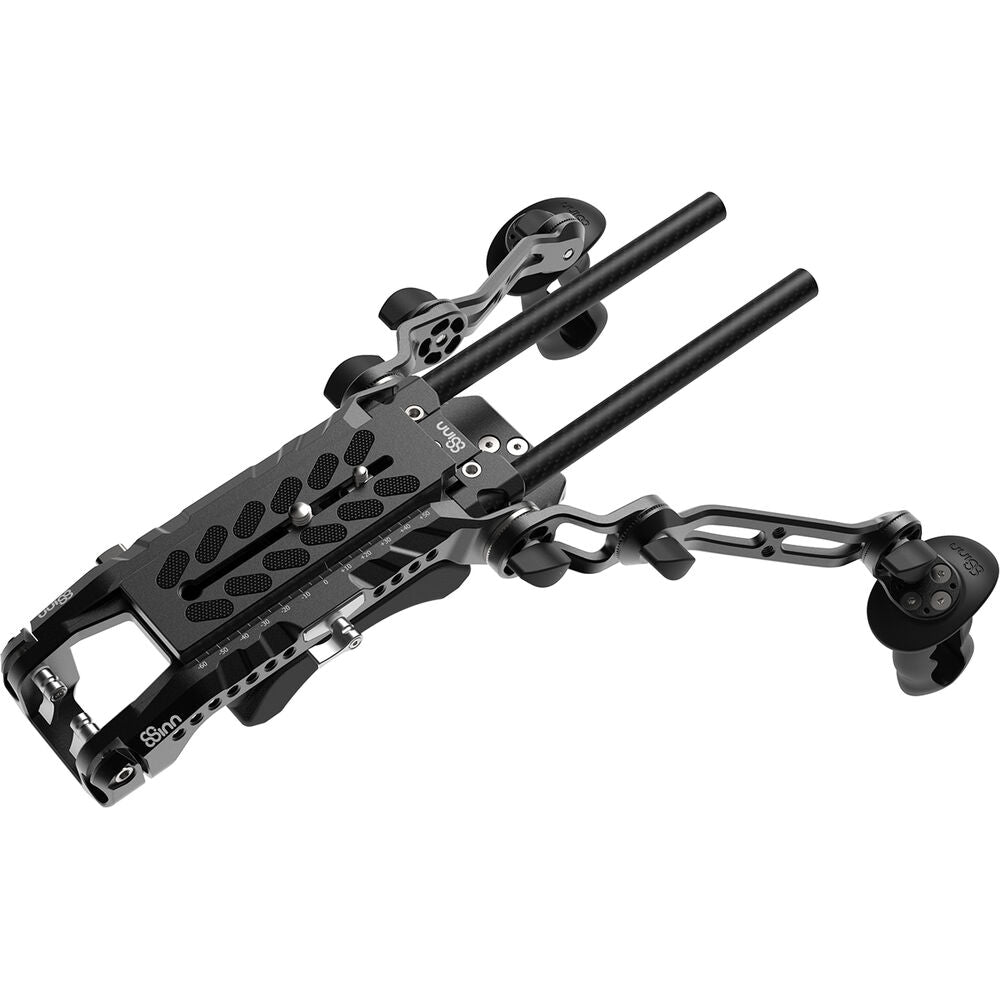

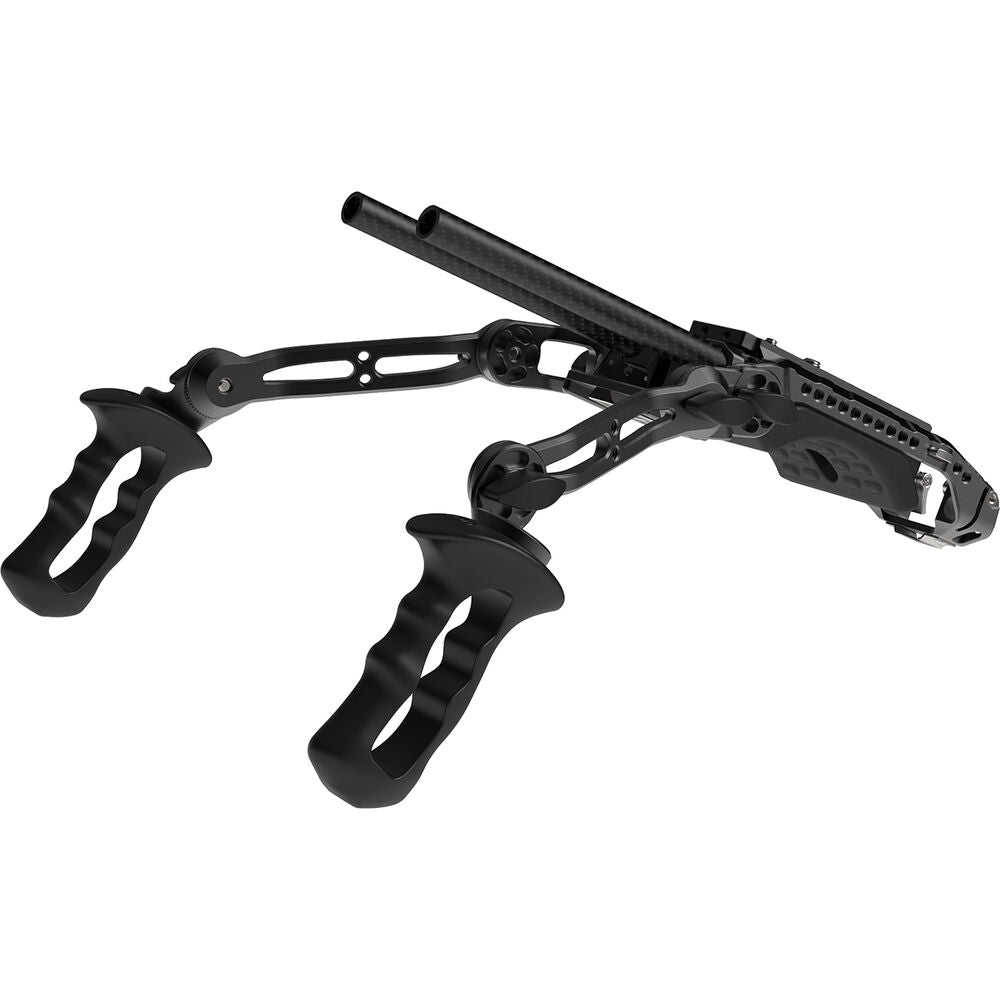

The versatile VCT Universal Shoulder Rig Full Kit from 8Sinn enables you to easily switch between supporting your camera on a VCT-style tripod rig or your shoulder. This versatile rig consists of a 15mm LWS baseplate with a VCT tripod mount, a detachable shoulder pad, a 501L-style quick release plate, and two extension arms with handgrips. This aluminum rig is compatible with most DSLR, mirrorless, or cine-style cameras.
8Sinn VCT Universal Shoulder Base Plate
The VCT Universal Shoulder Baseplate from 8Sinn features a sliding camera plate on top and a VCT-style tripod interface on the bottom. Compatible with almost any HD cinema camera, this versatile baseplate enables you to easily balance the weight of your setup on your shoulder, and to transfer quickly to a tripod-based configuration.
Attach the Manfrotto 501PLONG-type plate to your camera using the 1/4"-20 or 3/8"-16 screws, then slide it onto the shoulder plate. Independent 15mm LWS rod clamps at the front and rear of the baseplate enable you to mount rod-based accessories such as a matte box, a follow focus, lens motors, a lens support, battery plate, or external recorder. The front rod mount features 1.3" of vertical adjustment to accommodate various lens sizes.
Grips or handles can be mounted to the ARRI standard rosettes on either side of the plate. Shoulder pad features include magnetic mounting and four-position adjustment. Space is provided for storing an Allen key under the sliding camera plate.
Features
- Sliding 501PLONG-type camera plate on top, VCT-style interface on bottom
- Independent 15mm LWS rod clamps at the front and rear of the baseplate
- The front rod mount accommodates various lens sizes with 1.3" of vertical adjustment
- Magnetic, contoured shoulder pad
- Standard ARRI rosettes on both sides of the plate
- Storage is provided for an Allen key under the sliding camera plate
8Sinn Side Arm for Shoulder Rigs
Add an extension arm for a handgrip or other accessories on your shoulder rig with this Side Arm from 8Sinn. The aluminum arm is made up of two sections, and each section features a rosette on either side. The sections connect using one set of rosettes and a thumbscrew, which creates a rotating joint.
One end attaches to your rig with a thumbscrew, and the rosette on the other end features a thread for attaching a handgrip or other rosette accessory. There are two 1/4"-20 threads on the longer section that allow you to attach additional accessories.
8Sinn Dual Side Grip
No tools are necessary to mount this Dual Side Grip from 8Sinn on a camera rig, cage, or extension arm. The lightweight handgrip features an ARRI-style rosette that secures to your rig using a thumbscrew. The grip is molded from a lightweight composite plastic and is designed to be gripped on both sides or through the center opening. The rosette attachment is made of durable aluminum.
In the Box
- 8Sinn VCT Universal Shoulder Base Plate
- Limited 1-Year Warranty
- 2 x 8Sinn Side Arm for Shoulder Rigs
- 2 x Thumbscrew
- Limited 1-Year Warranty
- 2 x 8Sinn Dual Side Grip
- Limited 1-Year Warranty
- Description
- 8Sinn VCT Universal Shoulder Base Plate
- 8Sinn Side Arm for Shoulder Rigs
- 8Sinn Dual Side Grip
8Sinn VCT Universal Shoulder Base Plate Specs
| Dimensions | 9.6 x 3.7 x 2.2" / 244 x 94 x 56 mm |
| Weight | 1.8 lb / 810 g |
| Package Weight | 1.92 lb |
| Box Dimensions (LxWxH) | 10.6 x 5.7 x 2.8" |
8Sinn Side Arm for Shoulder Rigs Specs
| Material of Construction | Aluminum |
| Mounting | 3 x ARRI-Style Rosettes 2 x Thumbscrews |
| Accessory Mounting Threads | 2 x 1/4"-20 |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 0.35 lb |
| Box Dimensions (LxWxH) | 7.8 x 4.8 x 1.8" |
8Sinn Dual Side Grip Specs
| Grip Type | Ambidextrous Handgrip |
| Attachment Method | Attaches via Rosette |
| Accessory Mounting | None |
| Shoe Mounting | None |
| Rosettes | 1 x ARRI Rosette w/ M6 Thread |
| Rail Mounting | None |
| Materials | Aluminum, Plastic |
| Dimensions | 5.7 x 2.8 x 1.8" / 14.5 x 7 x 4.6 cm |
| Weight | 5 oz / 143 g |
| Package Weight | 0.445 lb |
| Box Dimensions (LxWxH) | 5.7 x 4.6 x 3.1" |
