Description
A-Neuvideo ANI-XT Overview

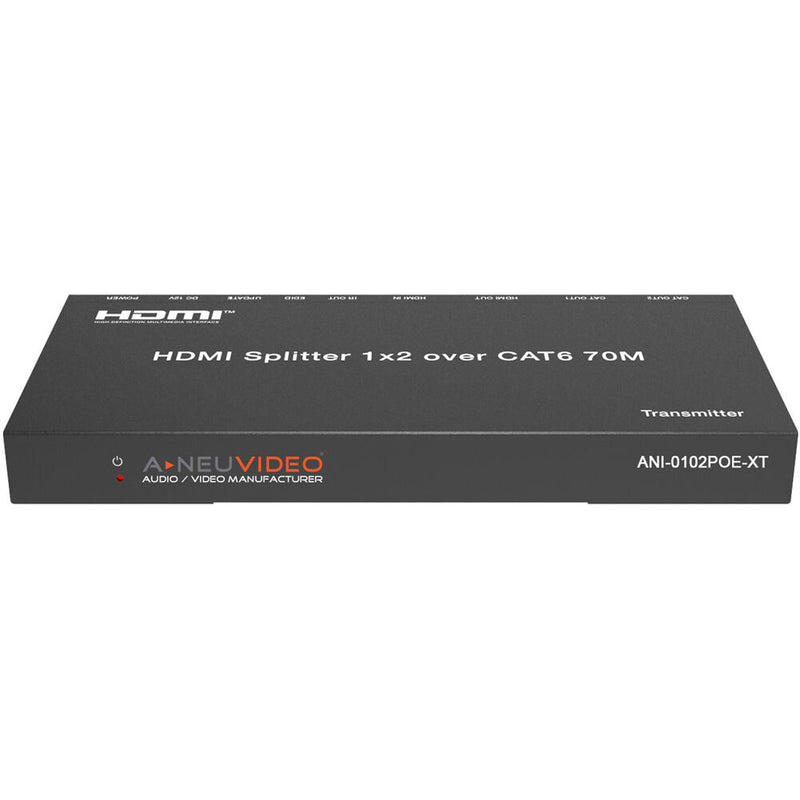

The 1 x 2 HDMI 4K30/1080p Cat 6 Extender Splitter from A-Neuvideo includes compact receivers for each of the two RJ45 outputs. It allows you to send a UHD 4K30 4:4:4 HDMI signal up to 131' over optional Cat 6 cables to these receivers and a 1080p60 signal up to 230'. The receivers are powered over PoC from the transmitter.
The extender also features an HDMI loop output, supports one-way IR return, and offers advanced EDID management via a dip switch. Supported audio formats include LPCM 7.1-channel, Dolby TrueHD, and DTS-HD Master Audio.
UPC: 859777007725
In the Box
- A-Neuvideo 1 x 2 HDMI 4K30/1080p Cat 6 Extender Splitter with 2 Receivers
- 2 x Receiver

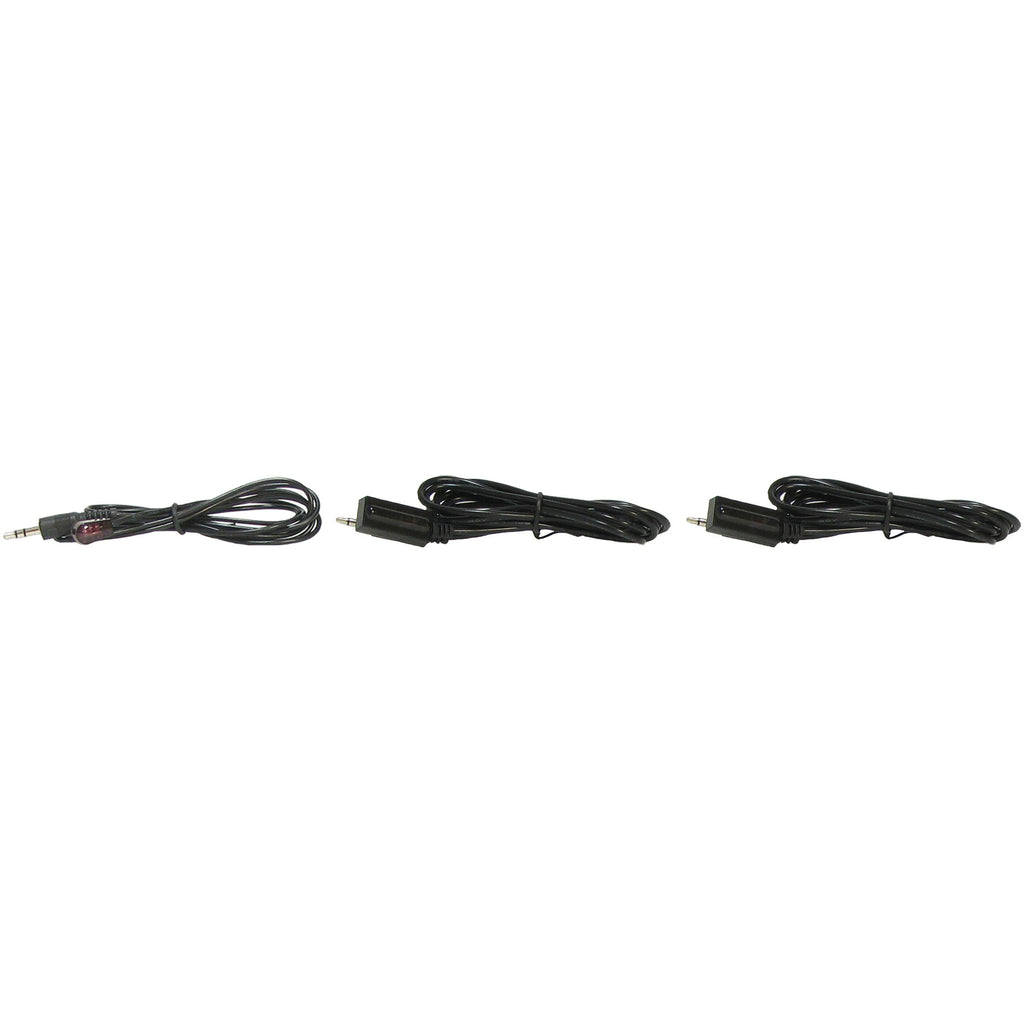

- IR Blaster Cable (4.9')
- 2 x IR Receiver Cable (4.9')
- 2 x Mounting Ear
- 12 VDC/1A Locking Power Adapter
- Limited 3-Year Warranty
A-Neuvideo ANI-XT Specs

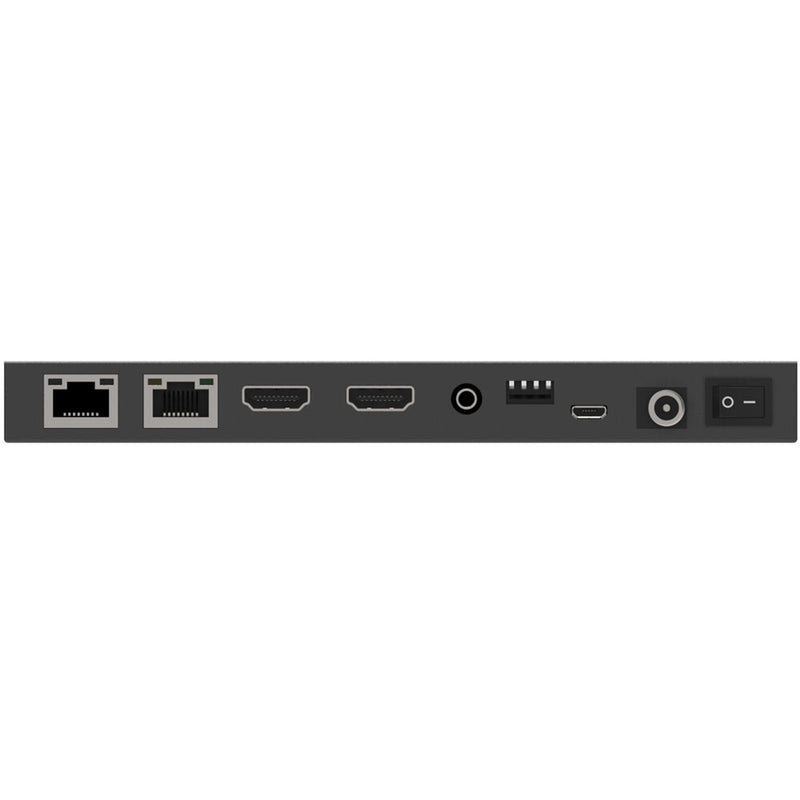

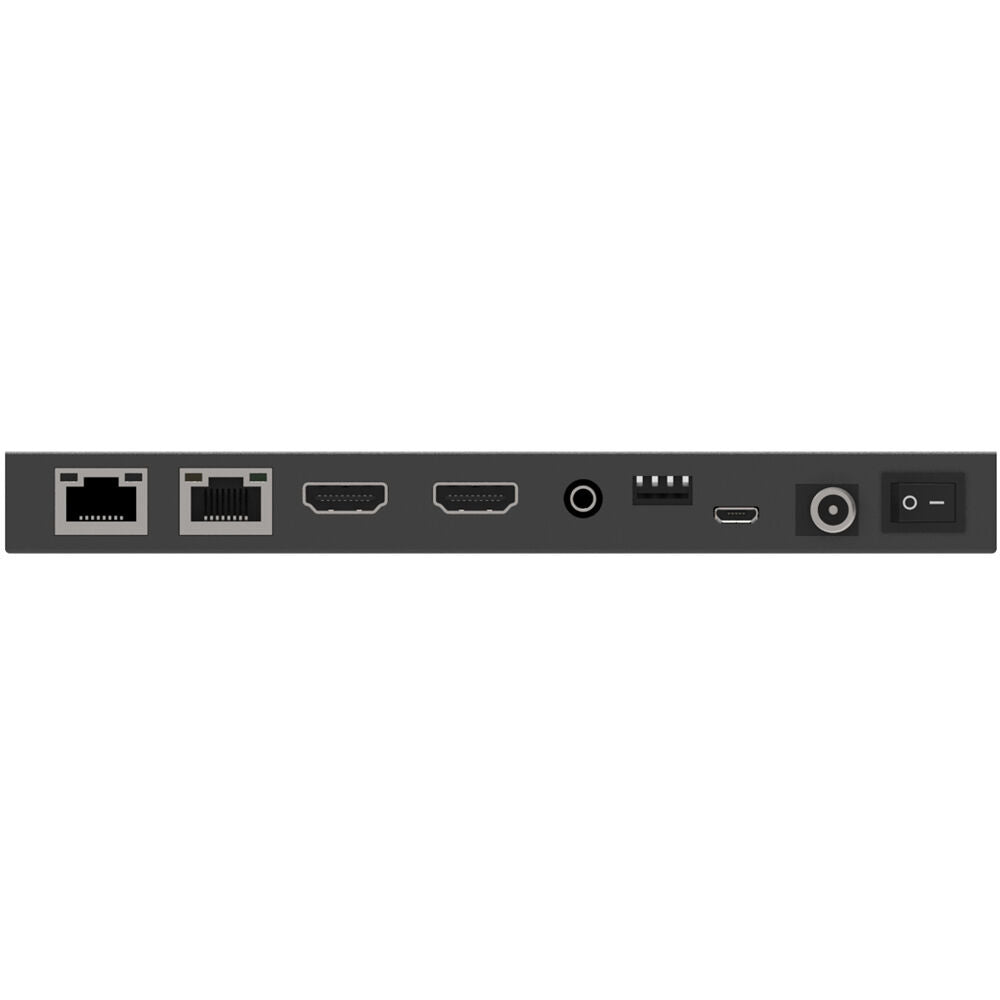

| Input | Transmitter: 1 x HDMI Type A 1.4 Receiver: 1 x RJ45 3.5 mm IR |
| Output | Transmitter: 2 x RJ45 1 x HDMI Type A 1.4 Loop Output 3.5 mm IR Receiver: 1 x HDMI Type A 1.4 |
| Other Connections | Transmitter: Micro USB Firmware Update Port |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 297 MHz / 10.2 Gb/s |
| Resolution | 3840 x 2160 at 30 Hz (4:4:4) 480i to 1080p50/60 Hz |
| Color Depth | 4K30: 8-Bit 1080p60: 8/10/12-Bit |
| Color Space | RGB, YCbCr 4:4:4/4:2:2 YUV 4:2:0 |
| ESD Protection | ±8 kV (Air Discharge) ±4 kV (Contact Discharge) |
| Housing | Transmitter/Receivers: Metal |
| Certification | Power Supply: CE/FCC/RoHs |
| Power Consumption | 5.4 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Relative Humidity | 20 to 90% RH (Non-Condensing) |
| Dimensions | Transmitter: 6.9 x 3.2 x 0.7" / 17.5 x 8.1 x 1.8 cm Receiver: 3.1 x 2.7 x 0.7" / 8 x 7 x 1.7 cm |
| Weight | Transmitter: 12.9 oz / 366 g Receiver: 4.6 oz / 130 g |
Packaging Info
| Package Weight | 2.155 lb |
| Box Dimensions (LxWxH) | 9.4 x 6.5 x 3" |
