Description
A-Neuvideo ANI-7.1CH4K Overview

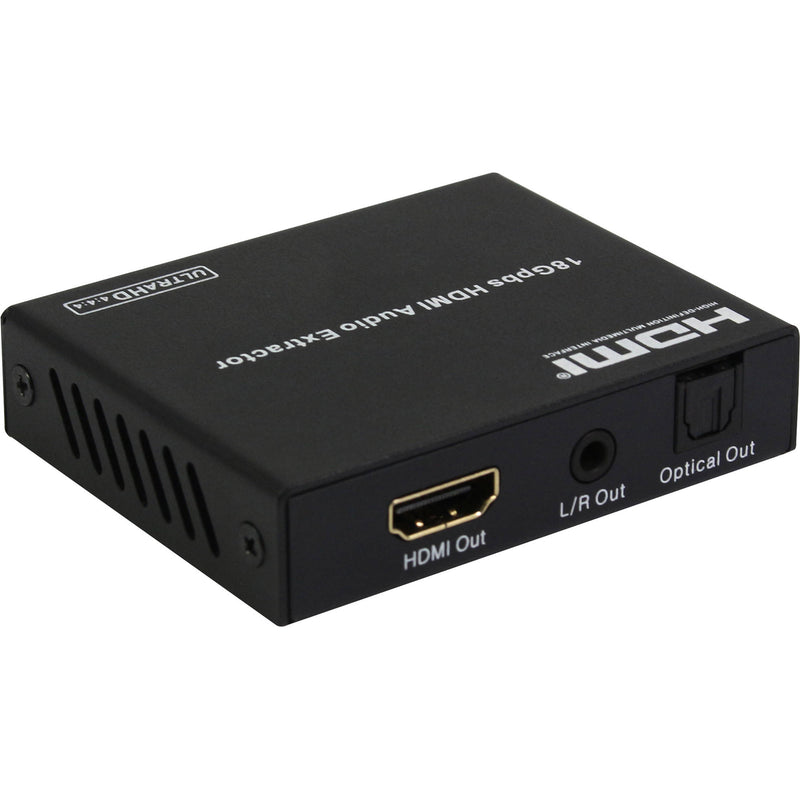

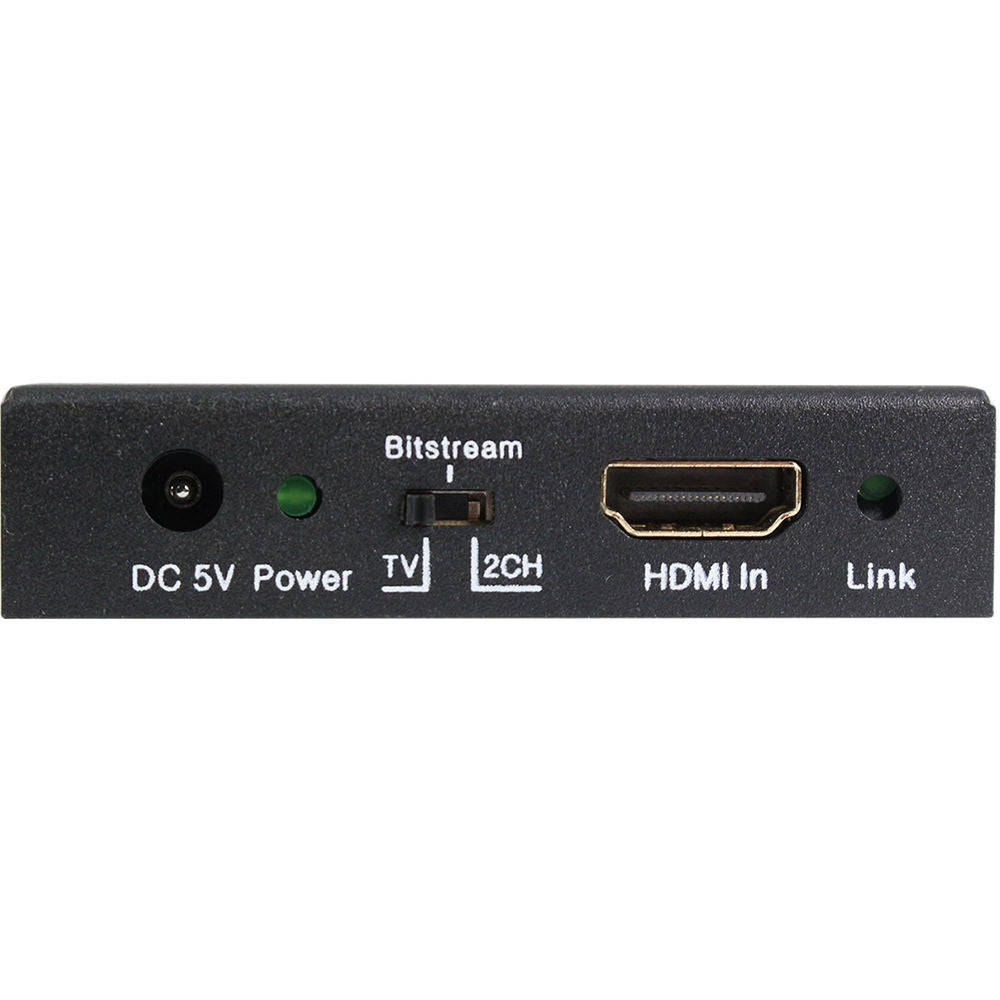

In a compact, all-metal design, the 4K HDMI 18 Gb/s Audio Extractor from A-Neuvideo de-embeds the audio from an HDMI signal and outputs it via a TOSLINK SPDIF or 3.5mm stereo audio output. At the same time, an HDMI output passes the full HDMI signal, with both video and audio. The compact device supports up to UHD 4K60p YUV 4:4:4 signals on both input and output.
Key Features
- De-embed audio from an HDMI signal and output it via multichannel TOSLINK SPDIF or 3.5mm stereo audio outputs
- HDMI 2.0b input and output supporting signals up to UHD 4K, 50/60 Hz, YUV 4:4:4; the output retains the full HDMI signal, with video and audio
- Supports 10-bit HDR pass-through
- 10-bit HDR (High Dynamic Range) pass-through
- TOSLINK output supports 2-channel LPCM, 2/5.1-channel Dolby Digital, and 2/5.1-channel DTS audio
- Audio sample rates up to 192 kHz
- CEC bypass support
- DVI support
- HDCP 2.2 compliant
UPC: 859777007329
In the Box
- A-Neuvideo 4K HDMI 18Gb/s Audio Extractor
- 5V, 1A Power Adapter
- Limited 3-Year Warranty
A-Neuvideo ANI-7.1CH4K Specs
| Input | 1 x HDMI 2.0b Type A |
| Output | 1 x HDMI 2.0b Type A 1 x 3.5 mm Stereo Audio Jack 1 x TOSLINK SPDIF Optical |
| Supported Resolutions | 3840 x 2160 at 50/60 Hz (YUV 4:4:4) 3840 x 2160 at 30 Hz 1080p120, 1080p60 3D |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-Bit, 12-Bit |
| HDMI Audio Formats | 2/5.1/7.1-Channel LPCM Dolby Digital DTS 5.1 Dolby Digital+ Dolby TrueHD DTS-HD Master Audio Dolby Atmos DTS:X |
| Optical Audio Formats | 2/5.1-Channel LPCM 2/5.1-Channel Dolby Digital 2/5.1-Channel DTS |
| L/R Audio Formats | 2-Channel Analog Stereo |
| Video Bandwidth | 18 Gb/s |
| ESD Protection | Human Body Model 8 kV (Air-Gap Discharge) 4 kV (Contact Discharge) |
| HDCP Compliance | HDCP 2.2, 1.4 |
| Housing | Metal |
| Power Supply | Input: 100 to 240 VAC, 50/60 Hz Output: 5 VDC, 1 A (CE/FCC/UL Certified) |
| Power Consumption | 1 W (Max) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Relative Humidity | 20 to 90% RH (No Condensation) |
| Dimensions | 2.9 x 2.4 x 0.7" / 7.4 x 6.1 x 1.7 cm |
| Weight | 4.6 oz / 130 g |
Packaging Info
| Package Weight | 0.515 lb |
| Box Dimensions (LxWxH) | 4.4 x 3.5 x 2.7" |
