Description
A-Neuvideo 4KHPN Overview

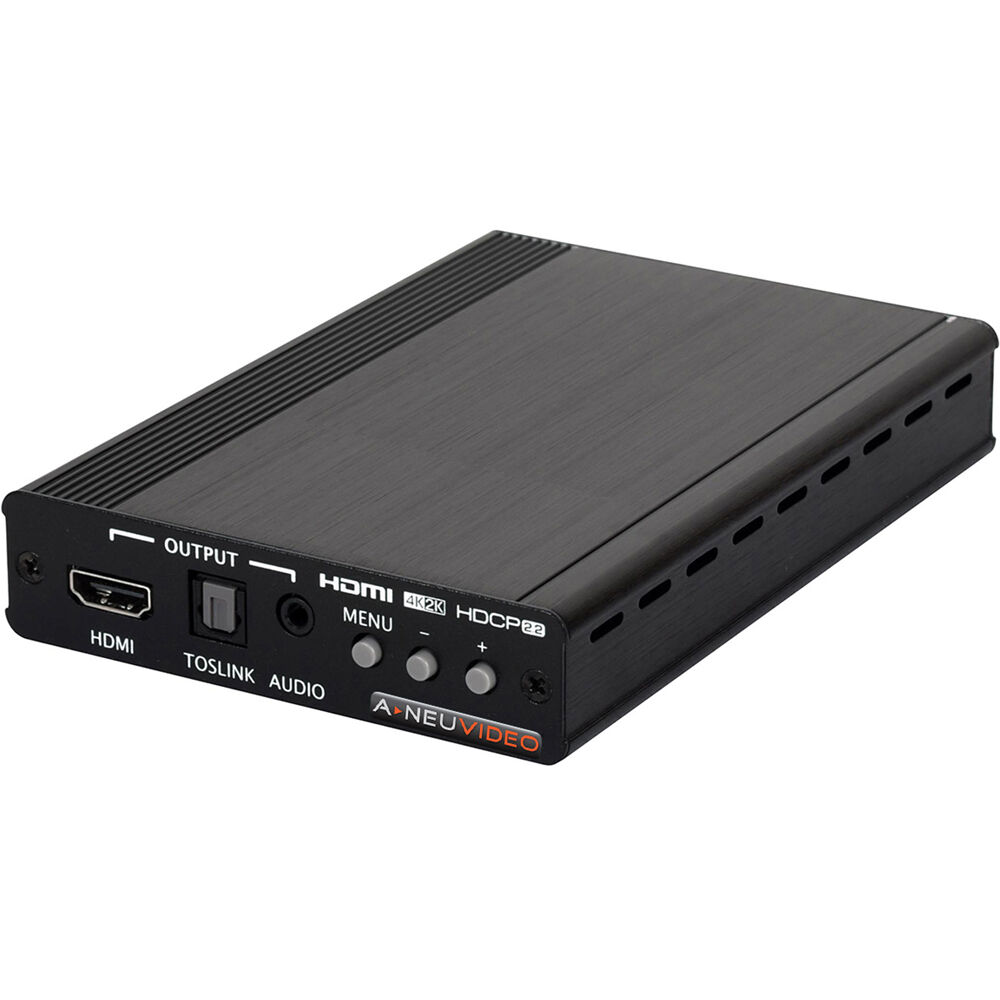

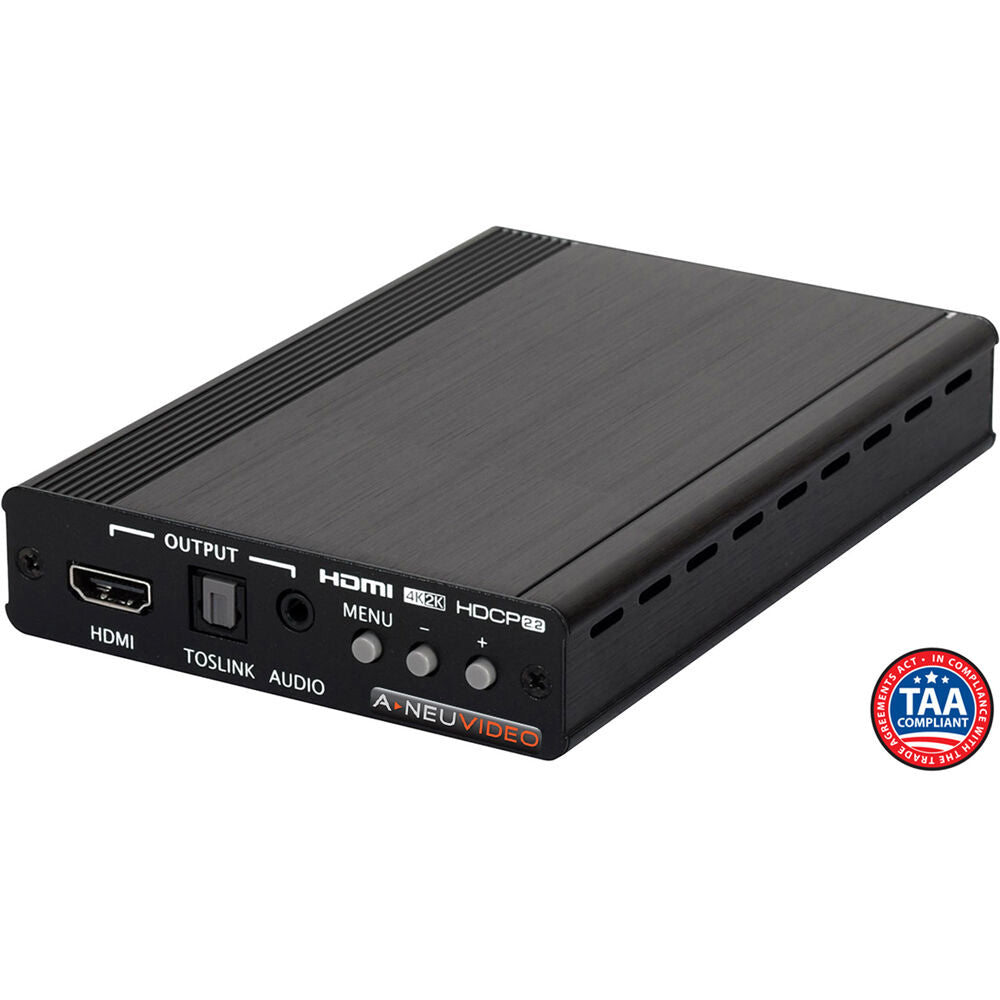

Connect a media player to a TV display to upscale its resolution output using this A-Neuvideo ANI-4KHPN UHD 4K HDMI to HDMI Scaler. The scaler features one HDMI input and one scaled HDMI output which supports video resolutions from 640 x 480 to UHD 4K at 60 Hz. Two TOSLINK digital audio connections and two 3.5mm analog audio connections support audio embedding and de-embedding via LCPM 2.0 protocol.
A high-quality scaling engine gives the user the ability to adjust the image's contrast, brightness, and other more advanced settings. Shortcut keys are provided to change the output to 1080p for quick connection to a display or troubleshooting purposes. Other front-panel buttons and OSD menu give you full control over your video sources. Included with the scaler is a 5 VDC power supply for easy integration into your AV configuration.
- HDMI input and output with 18 Gb/s UHD 4K support
- DVI 1.0 compliant with use of adapter
- Scaled HDMI output supports resolutions from 640 x 800 at 60 Hz up to UHD 4K at 60 Hz
- Supports pass-through of audio format, including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream via HDMI
- Audio embedding and de-embedding via digital optical and analog stereo audio inputs and outputs, LPCM 2.0 only
- Frame-rate conversion, 3D motion adaptive de-interlacing, and 3:2/2:2 pull-down detection and recovery
- Output adjustments to contrast, brightness, hue, saturation, sharpness, RGB levels, and aspect ratio
- Integrated EDID and HDCP management

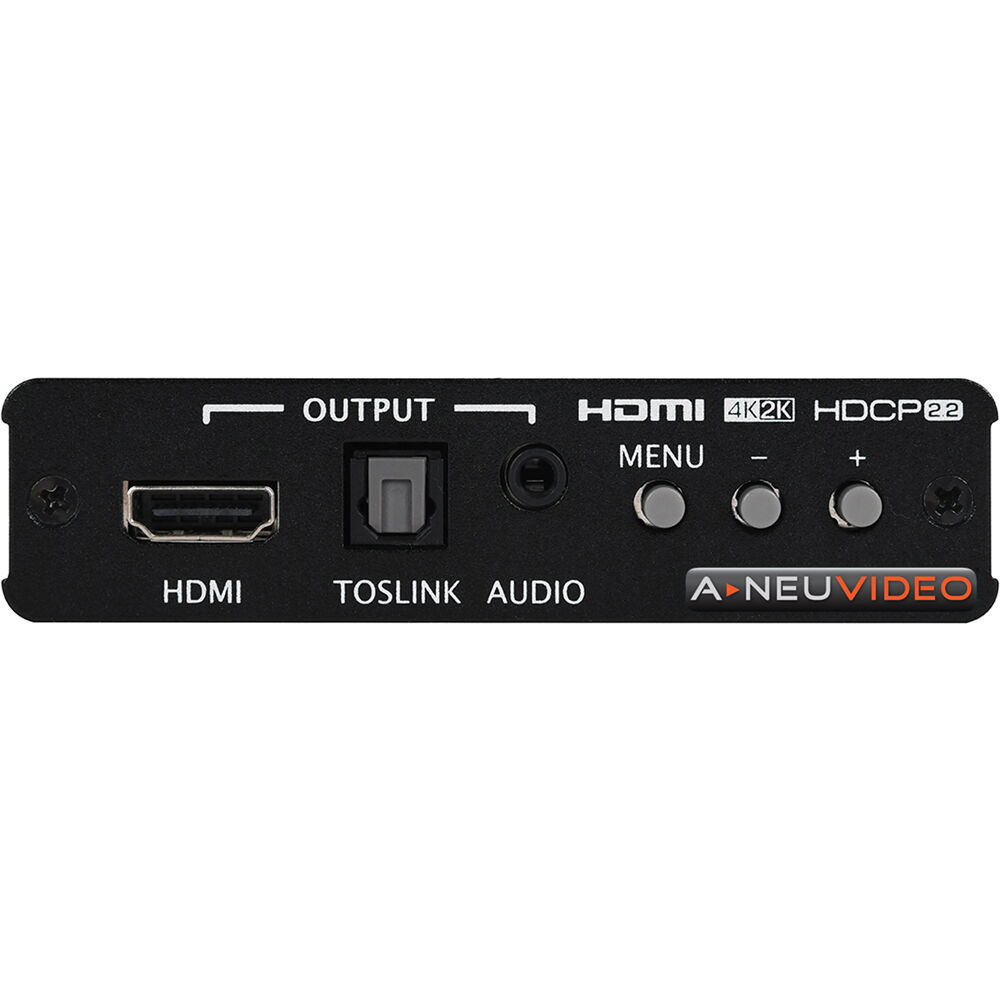

- Controllable via front-panel buttons and comprehensive OSD
- USB Type-A port for firmware updates
In the Box
- A-Neuvideo ANI-4KHPN UHD 4K HDMI to HDMI Scaler
- DC Power Adapter (5V, 2.6A)
A-Neuvideo 4KHPN Specs

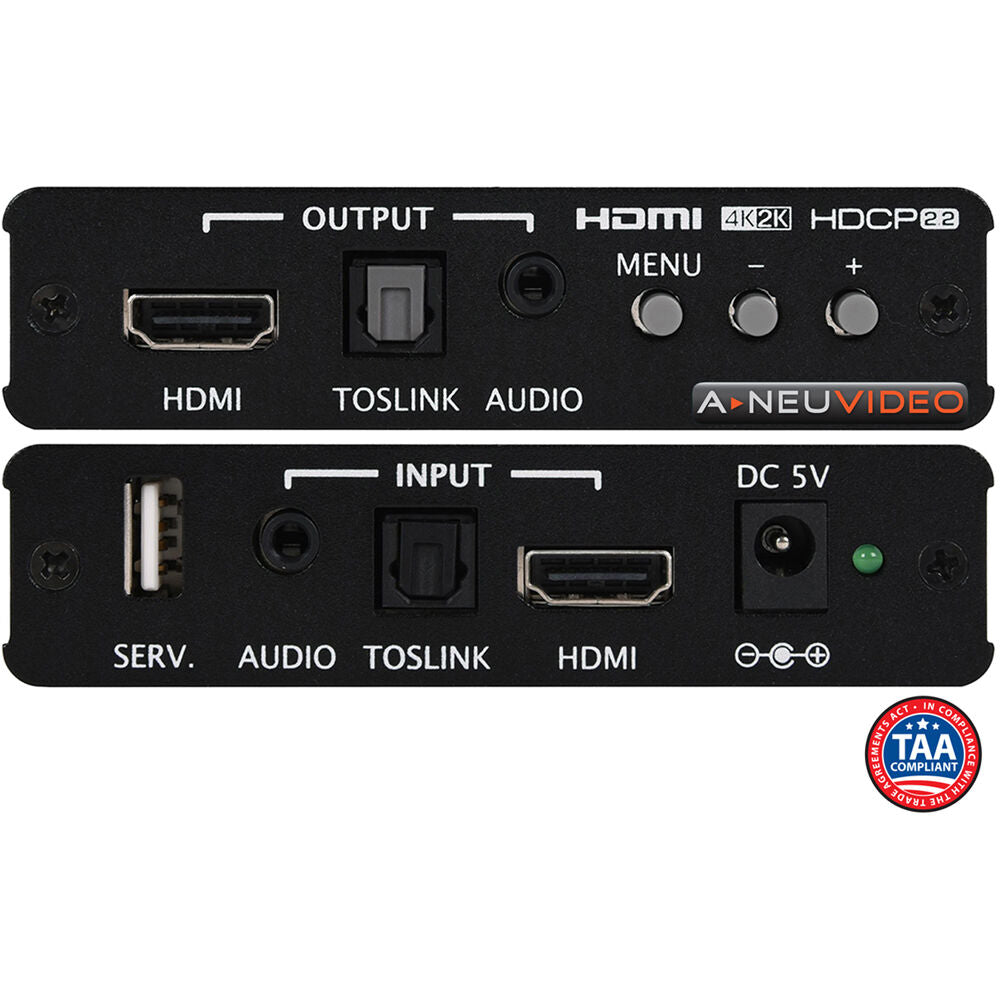

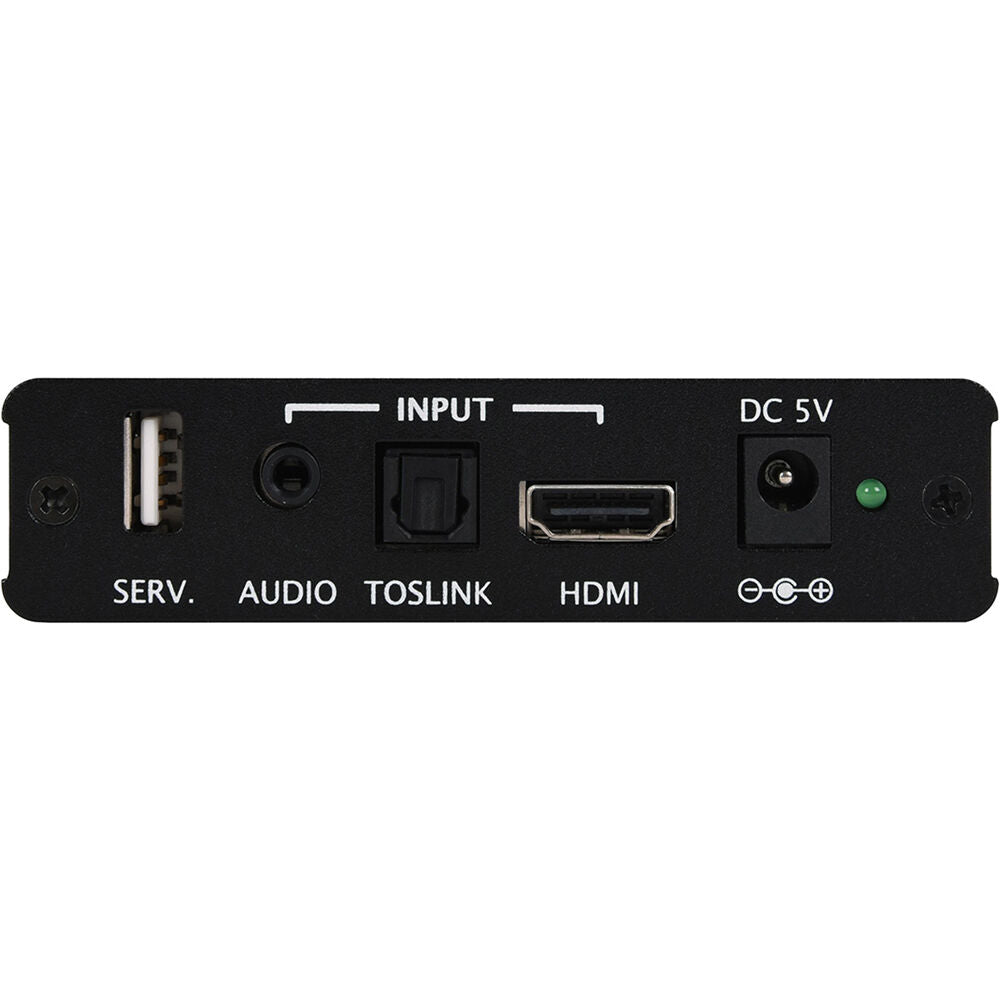

| Video Inputs | 1 x HDMI Female |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo Female 1 x TOSLINK S/PDIF Female |
| Video Outputs | 1 x HDMI Female |
| Audio Outputs | 1 x 1/8" / 3.5 mm TRS Stereo Female 1 x TOSLINK S/PDIF |
| Other I/O | 1 x USB-A Firmware Input |
| Expansion Slots | None |
| Input Video Format | HDMI UHD 4K 24/25/30/50/60 fps DCI 4K 24/25/30/50/60 fps DCI 2K 50/60 fps WQHD (2560 x 1440) 60 fps WUXGA (1920 x 1200) 60 fps 1080p 24/25/30/50/60 fps 1080i 50/60 fps UXGA (1600 x 1200) 60 fps WUXGA+ (1680 x 1050) 60 fps SXGA+ (1400 x 1050) 60 fps WXGA+ (1440 x 900) 60 fps 1360 x 768 60 fps SXVGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps 1280 x 768 60/75/85 fps 720p 50/60 fps XGA (1024 x 768) 60/70/75/85 fps SVGA (800 x 600) 56/60/72/75/85 fps 576p 50 fps 576i / 625 lines 50 fps 480p 60 fps 480i / 525 lines 60 fps VGA (640 x 480) 60/72/75/85 fps |
| Input Audio Format | S/PDIF LPCM (Linear Pulse-Code Modulation) |
| Output Video Format | HDMI UHD 4K 24/25/30/50/60 fps DCI 4K 24/25/30/50/60 fps DCI 2K 50/60 fps 2560 x 1440 60 fps 1080p Ultrawide (2560 x 1080) 50/60 fps WUXGA (1920 x 1200) 60 fps 1080i 50/60 fps 1080p 24/25/30/50/60 fps WUXGA+ (1680 x 1050) 60 fps UXGA (1600 x 1200) 60 fps WXGA+ (1440 x 900) 60 fps SXGA+ (1400 x 1050) 60 fps 1360 x 768 60 fps SXGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps XGA (1024 x 768) 60 fps 1280 x 720 (Non-Standard WXGA) 60 fps 720p 50/60 fps XGA (1024 x 768) 60 fps SVGA (800 x 600) 60 fps VGA (640 x 480) 60 fps 576p 50 fps 480p 60 fps |
| Output Audio Format | S/PDIF LPCM (Linear Pulse-Code Modulation) |
| Embedded Audio | HDMI |
| HDCP Support | Version 2.2 |
| EDID Support | Auto-Detect |
| HDR Compatibility | Not Specified by Manufacturer |
| Wi-Fi | None |
| Power I/O | 1 x Barrel (5 VDC at 2.6 A) Input |
| Power Consumption | Device: 11 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
| Certifications | CE, FCC, UL *as per Manufacturer |
| Dimensions | 6.13 x 4 x 1" / 155.75 x 102 x 25 mm |
| Weight | 12.3 oz / 350 g |
| Package Weight | 1.675 lb |
| Box Dimensions (LxWxH) | 11.2 x 7.8 x 2.9" |
