Description

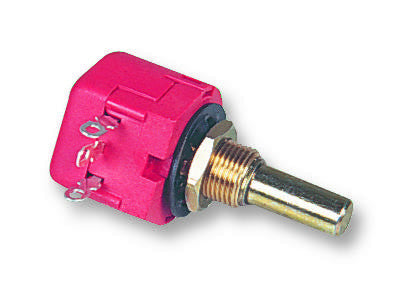

The ABW1 2K5 is a Wire wound Rotary Potentiometer with solder tag terminals, encased, 23mm nominal width.
- 10000 Cycles durability
- 285 �5� Mechanical travel
- 265 �5� Electrical travel
- Metal moulded spindle
- Operating temperature range -40�C to +90�C
- Endurance of 10000 cycles
Applications
Industrial, Portable Devices, Power Management, Industrial
Product details
| Shaft Length | 25.4mm |
| Shaft Diameter | 6.35mm |
| No. of Gangs | 1 |
| Adjustment Type | Rotary |
| Resistance Tolerance | � 10% |
| Product Range | ABW1 Series |
| Track Taper | Linear |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Panel |
| Power Rating | 1W |
| Track Resistance | 2.5kohm |
Other details
| Brand | AB ELEKTRONIK |
| Part Number | ABW1 2K5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
