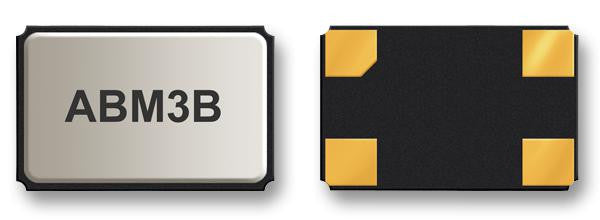

ABRACON ABM3B-24.000MHZ-R60-D-1-W-T Crystal, 24 MHz, SMD, 5mm x 3.2mm, 25 ppm, 18 pF, 10 ppm, ABM3B Series

This is a Crystal, 24 MHz, SMD, 5mm x 3.2mm, 25 ppm, 18 pF, 10 ppm, ABM3B Series product from ABRACON with the model number ABM3B-24.000MHZ-R60-D-1-W-T

Product details

Load Capacitance	18pF
Operating Temperature Min	-40�C
Operating Temperature Max	85�C
Crystal Case	SMD, 5mm x 3.2mm
Product Range	ABM3B Series
Frequency Stability + / -	25ppm
Frequency Tolerance + / -	10ppm
Frequency Nom	24MHz

Other details

Brand	ABRACON
Part Number	ABM3B-24.000MHZ-R60-D-1-W-T
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
