Description

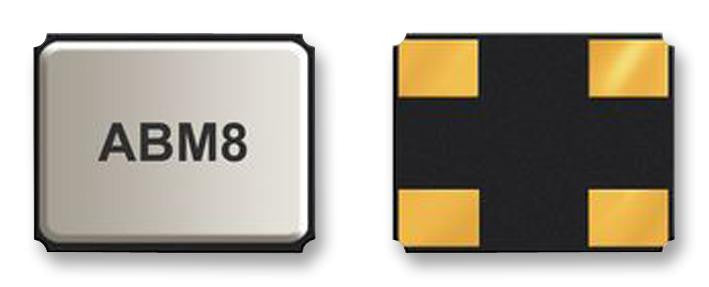

This is a Crystal, 24 MHz, SMD, 3.2mm x 2.5mm, 50 ppm, 18 pF, 20 ppm, ABM8 Series product from ABRACON with the model number ABM8-24.000MHZ-B2-T
Product details
| Load Capacitance | 18pF |
| Operating Temperature Min | -20�C |
| Operating Temperature Max | 70�C |
| Crystal Case | SMD, 3.2mm x 2.5mm |
| Product Range | ABM8 Series |
| Frequency Stability + / - | 50ppm |
| Frequency Tolerance + / - | 20ppm |
| Frequency Nom | 24MHz |
Other details
| Brand | ABRACON |
| Part Number | ABM8-24.000MHZ-B2-T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
