Description
Accsoon CineView 2 Overview

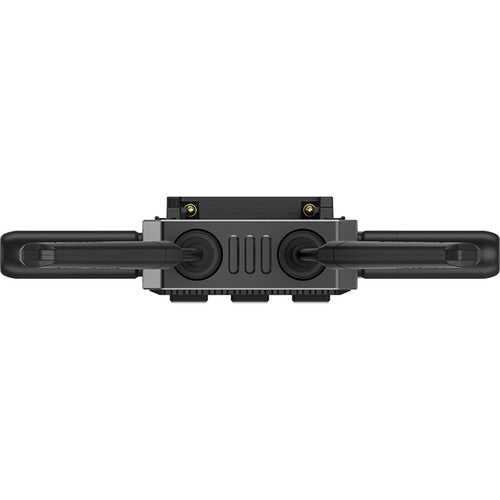

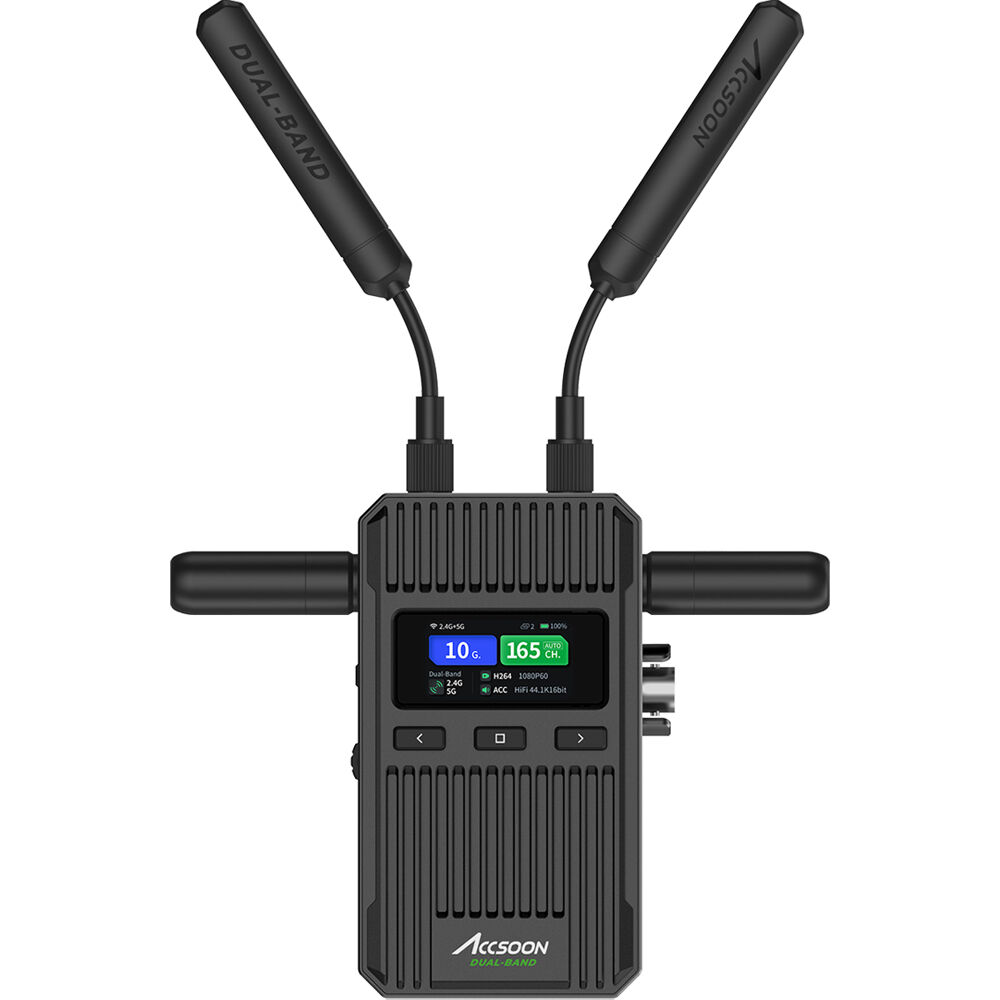

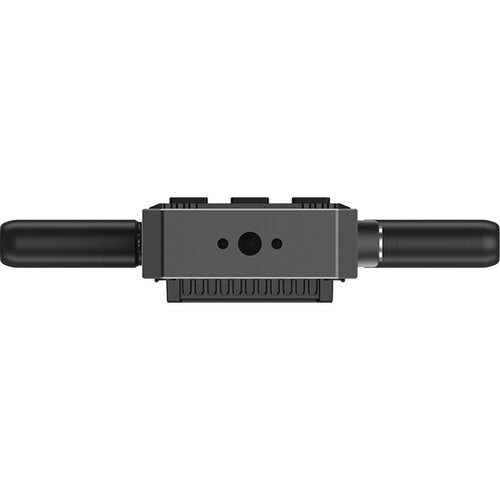

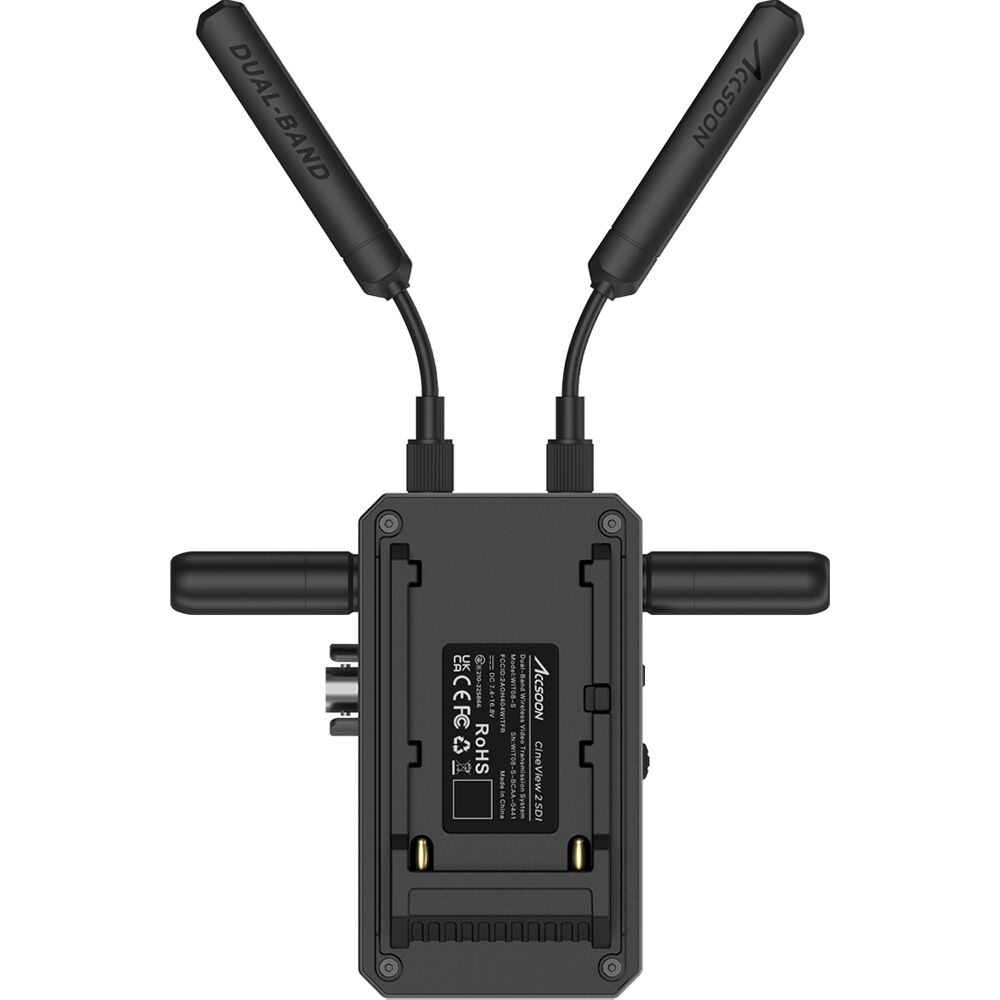

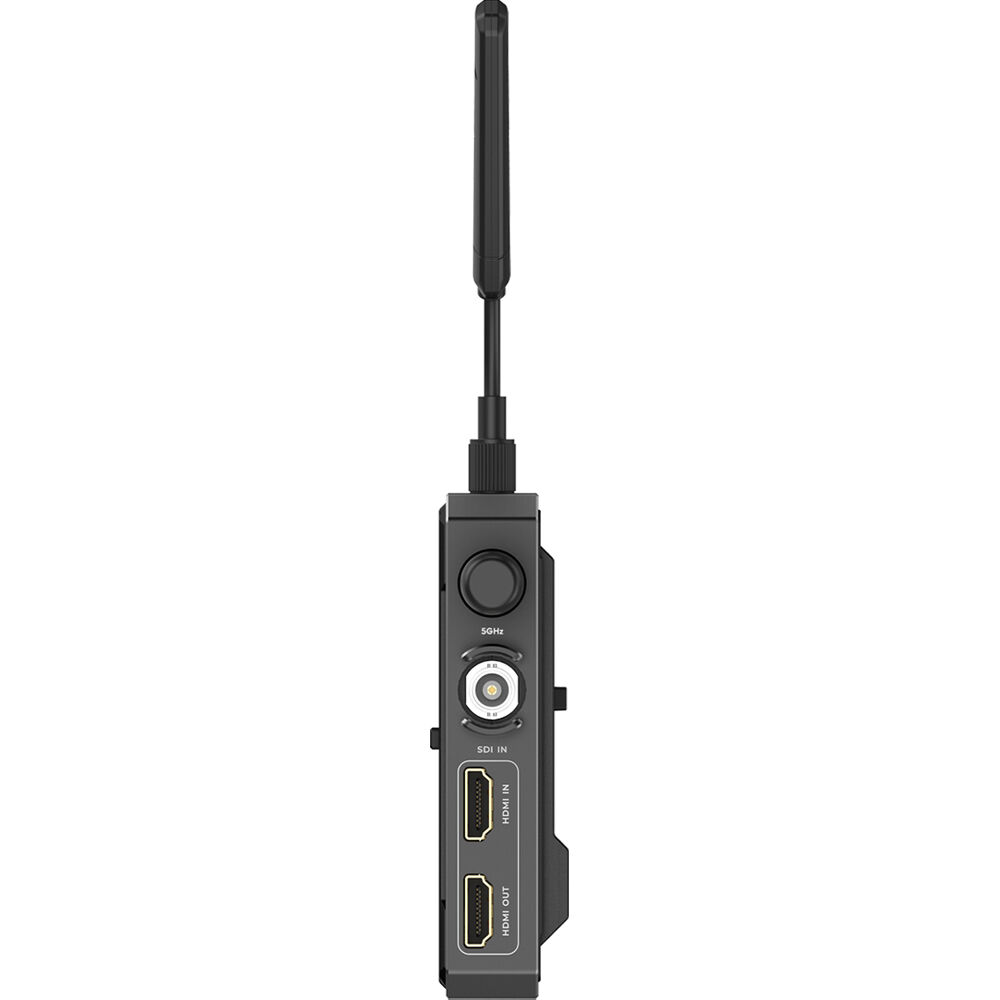

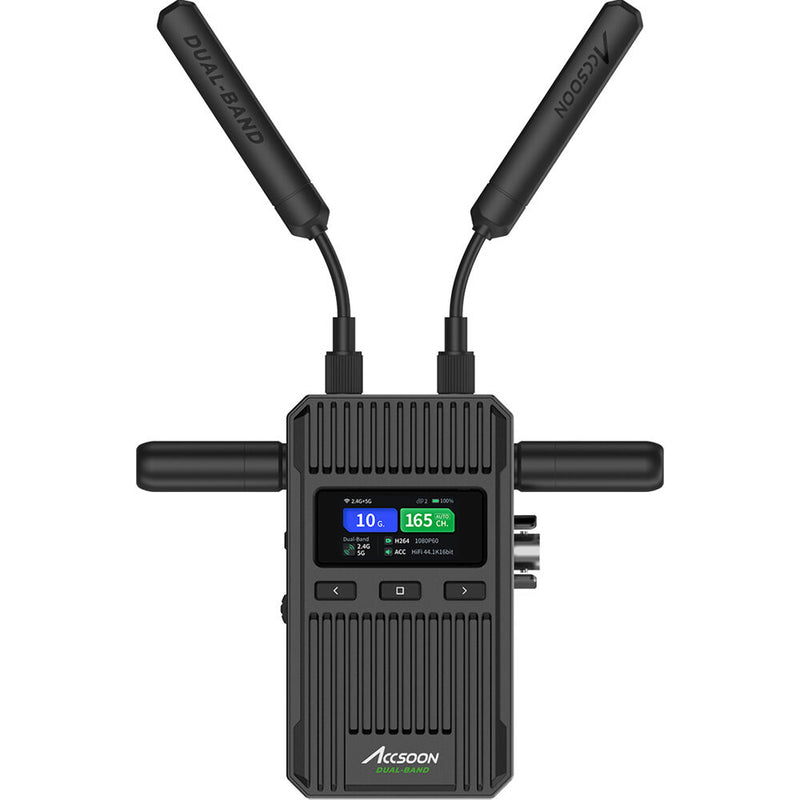

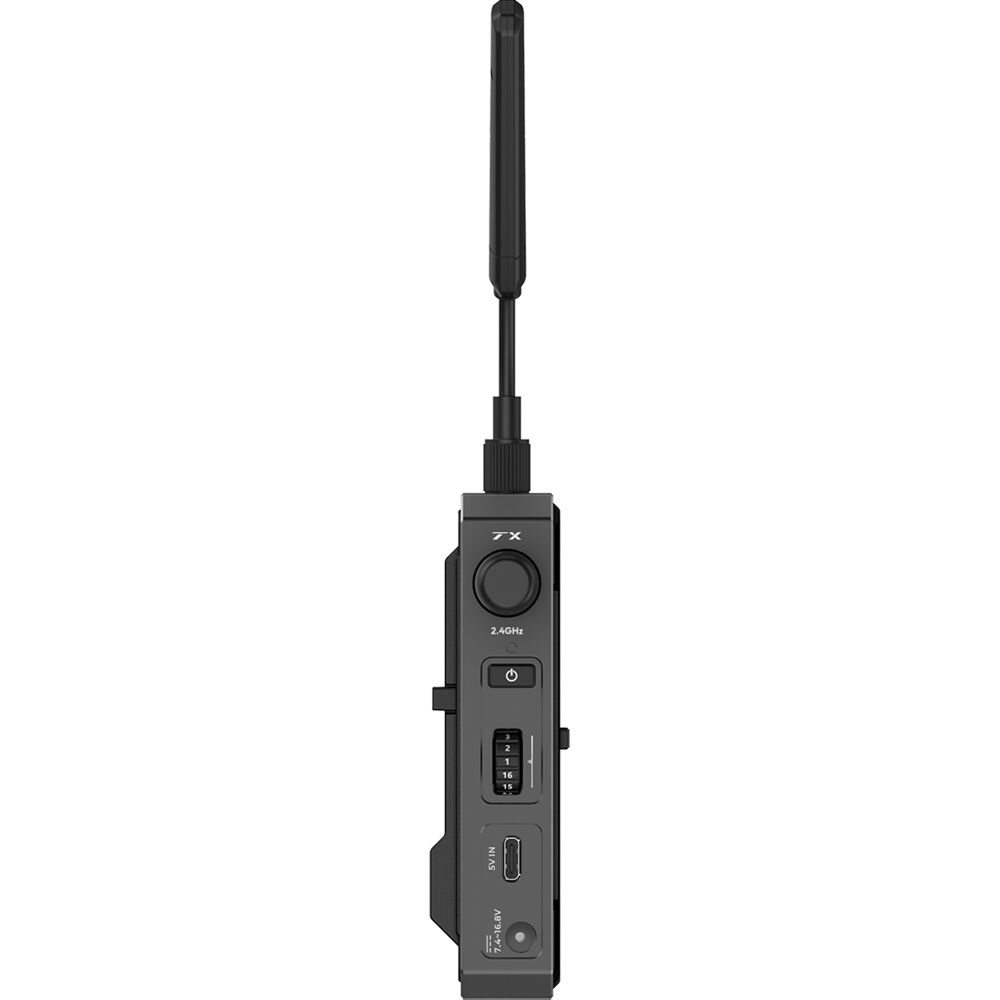

Add a wireless transmitter to your CineView transmission system with this CineView 2 SDI/HDMI Wireless Video Transmitter from Accsoon. The transmitter has been updated from previous models with an even smaller and lighter form factor and a greater range. With the CineView 2, you can send the signal directly to iOS and Android devices simultaneously over distances up to 1500' with only a 50ms delay, and you can still transmit to any mix of four receivers and iOS/Android smartphones and tablets. It is also cross-compatible with all CineView models, so you can transmit to any CineView receiver you'd like.
Like previous models, the CineView 2 allows you to send a 1080p60 camera signal to an optional CineView 2 receiver plus mobile devices. It can input up to 1080p via SDI and up to UHD/DCI 4K60 video via HDMI, and it also features an HDMI loop output to send to a local monitor. Its dual-band technology allows you to transmit over 2.4 and 5 GHz signals for stable, high-quality video.
The transmitter is easy to set up and pair, making setup quick and easy. The free-to-download companion app installs on a tablet or smartphone. The transmitter features both DC and USB-C power input, and it also supports an L-series battery.
Items Included
- Accsoon CineView 2 SDI/HDMI Wireless Video Transmitter
- Shoe Mount
- Limited 1-Year Manufacturer Warranty
Additional Resources
Accsoon CineView 2 Specs
| Video I/O |
1x HDMI (Unspecified Signal) Input
1x BNC (HD-SDI) Input 1x HDMI (Unspecified Signal) Output |
| Embedded Audio |
HDMI/SDI
|
| Latency |
< 50 ms
|
| Video Format |
SDI/Wireless
1080p: 60/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 HDMI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Battery Type |
1x L-Series
|
| Power Consumption |
6 W
|
| Mounting |
1x 1/4"-20 Female (Bottom)
1x Cold Shoe (Bottom) |
| Antenna I/O |
4x RP-SMA Female
|
| Video I/O |
1x HDMI (Unspecified Signal) Input
1x BNC (HD-SDI) Input 1x HDMI (Unspecified Signal) Output |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
No
|
| Power I/O |
1x Barrel (16.8 VDC) Input
1x USB-C (3 A / 5 VDC) Input |
| Wireless Range |
1500' / 457.2 m
|
| Frequency Range |
2412 to 2472 MHz
5180 to 5580 MHz 5660 to 5825 MHz |
| Latency |
< 50 ms
|
| RF Power |
20 dBm
|
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support
|
| Bluetooth |
No
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Accsoon SEE |
| Cellular Support |
No
|
| Video Format |
SDI/Wireless
1080p: 60/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 HDMI DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format |
2-Channel 24-Bit 48 kHz PCM Audio
|
| Timecode Support |
No
|
| Input Power |
7.4 to 16.8 VDC
|
| Battery Type |
1x L-Series
|
| Power Consumption |
6 W
|
| Mounting |
1x 1/4"-20 Female (Bottom)
1x Cold Shoe (Bottom) |
| Environmental Resistance |
No
|
| Operating Conditions |
14 to 104°F / -10 to 40°C
|
| Material of Construction |
Aluminum
|
| Dimensions |
4.2 x 2.4 x 1.1" / 106.5 x 60 x 27.5 mm
|
| Weight |
7.41 oz / 210.00 g
|
| Package Weight |
1 lb
|
| Box Dimensions (LxWxH) |
6.5 x 3.9 x 2.3"
|
