Accsoon CineView Master 4K SDI/HDMI Wireless Video Receiver

This CineView Master 4K SDI/HDMI Wireless Video Receiver from Accsoon helps facilitate wireless UHD 4K video transmission with improved user interface and greater range than previous models. Send UHD 4K60 video up to 1.6 miles from the separately available transmitter to this receiver unit with only a 35 ms delay. Wired connections on the receiver include 3G-SDI and HDMI output ports. When paired with the transmitter, the system can support wired video outputs from your iOS devices.

The CineView Master 4K boasts the RTMS 4.0 protocol, which integrates 2.4, 5, and 6 GHz frequencies. Intelligent dynamic adjustment of audio and video data goes across all three bands for faster connection times, lower latency, and easy management of multiple connections. With the new 6 GHz frequency, the CineView Master 4K unlocks 14 new channels and gigabit network speed.

The receiver and separately available transmitter units can communicate up to 1.6 miles away thanks to its tri-band technology and hardware design.

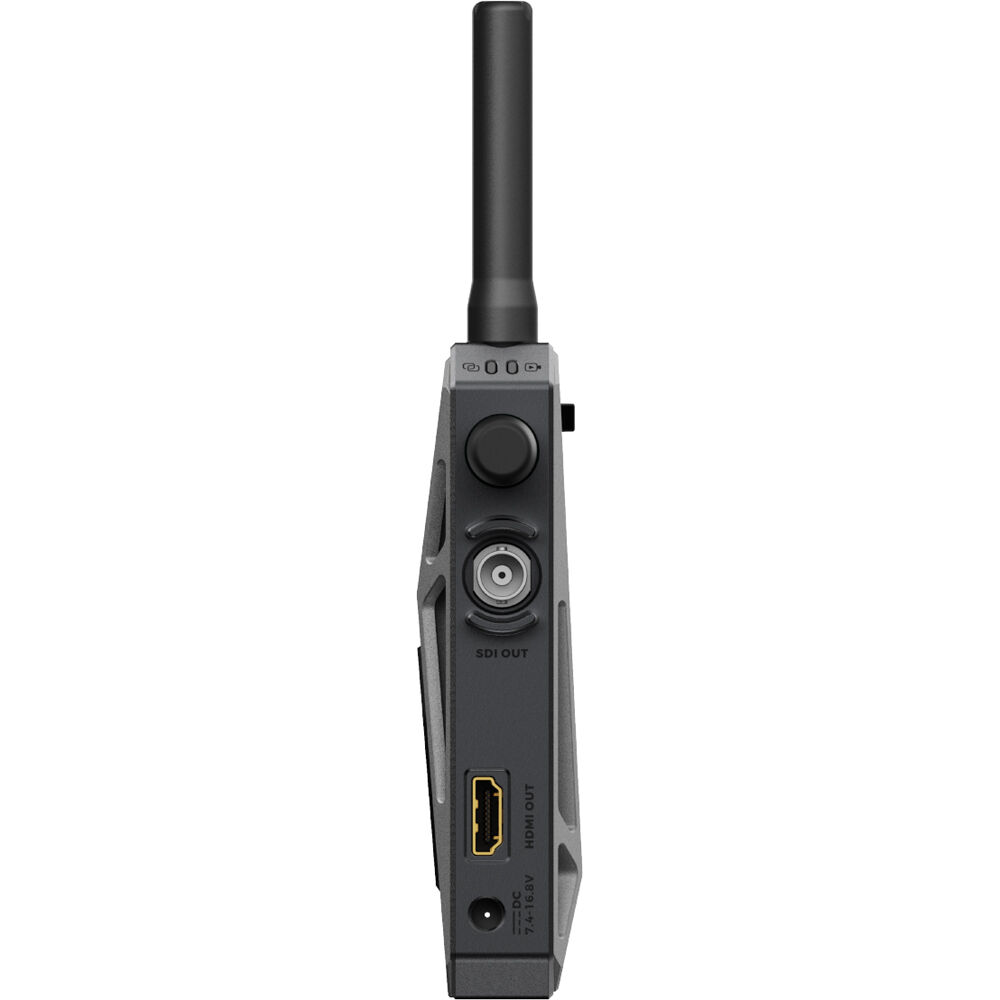

The 3G-SDI and HDMI connections on the receiver can output video to a production monitor on set with stable, high-quality transmission for smooth on-site monitoring. Use the Accsoon SEE app to wirelessly monitor your system.

An improved user interface makes for easy creative control over your stream, video settings, LUTs, WiFi, and other advanced settings using the SEE app.

8K Processor

A new high-performance A/V processor with 8K capabilities works in tandem with the RTMS 4.0 protocol for a 400% increase in processing capabilities over previous models. The system can easily create synchronized multi-video streams via tri-band technology.

Toggle between three different fan modes depending on the needs of your production. Standard mode allows for peak fan speeds for outdoor applications, quiet mode reduces the fan speed for studio setups, and off mode just turns the fan off when you cannot risk the noise interfering with your production.

Multiple Power Options

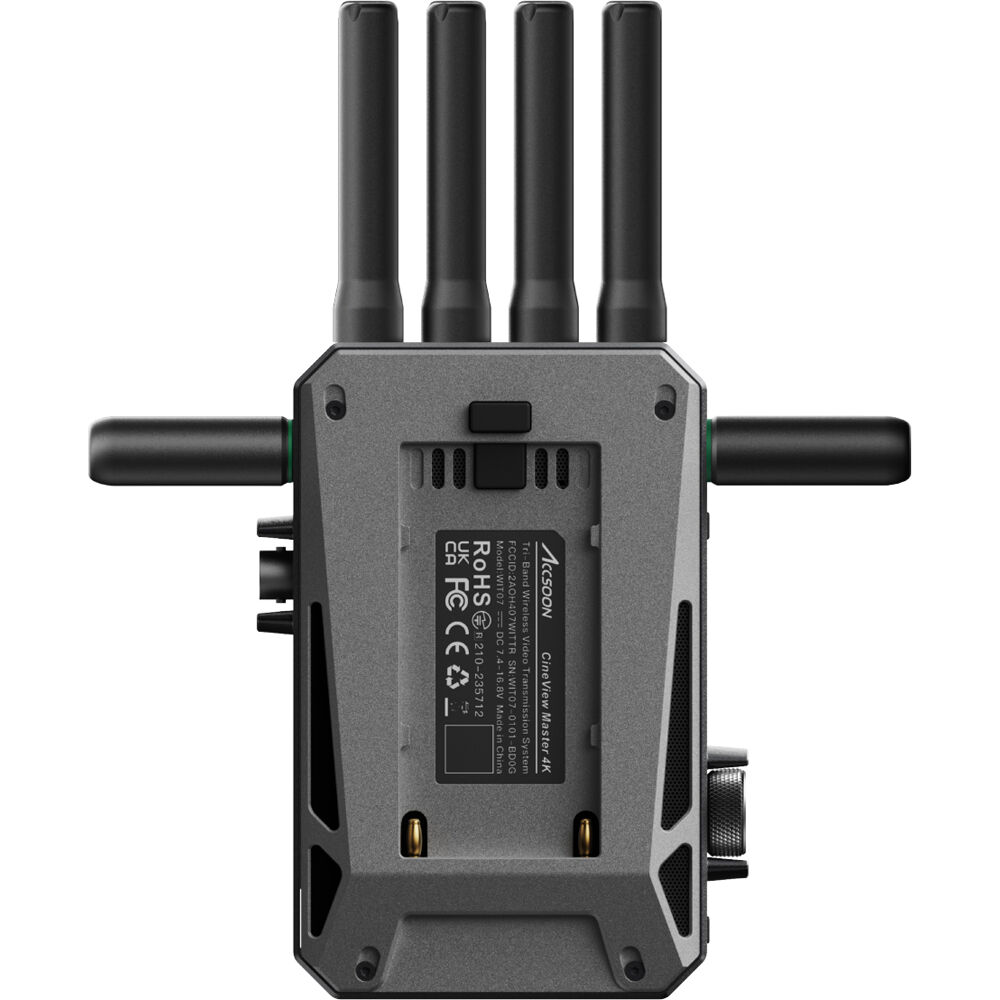

The receiver supports power from both DC input and L-series batteries. There is also the option to add a separately available V-mount battery adapter.

Accsoon CineView Master 4K Specs

Video I/O	1x BNC (3G-SDI) Output 1x HDMI 2.0 Output
Embedded Audio	HDMI/SDI
Latency	35 ms
Video Format	HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 SDI 1080p: 60/50/30/25/24
Battery Type	1x L-Series
Power Consumption	5 W
Mounting	1/4"-20 Female (Bottom)

Video I/O	1x BNC (3G-SDI) Output 1x HDMI 2.0 Output
Embedded Audio	HDMI/SDI
Audio I/O	No
Power I/O	1x Barrel (2 A / 12 VDC) Input

Wireless Range	1.6 Miles / 2.5 km (Line-of-Sight)
# of Channels	20
Frequency Range	2412 to 2472 MHz 5180 to 5580 MHz 5660 to 5825 MHz
Latency	35 ms
RF Power	17 dBm
Wi-Fi	Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz)
Bluetooth	No
Mobile App Compatible	Yes: Android & iOS App Name: Accsoon SEE
Cellular Support	No

Video Format	HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 SDI 1080p: 60/50/30/25/24
Timecode Support	No

Input Power	7.4 to 16.8 VDC
Battery Type	1x L-Series
Power Consumption	5 W

Mounting

1/4"-20 Female (Bottom)

Status Display	LCD
Operating Conditions	14 to 104°F / -10 to 40°C
Dimensions	5.1 x 3.7 x 1.3" / 130 x 95 x 32 mm (Excluding Antenna)
Weight	11.3 oz / 320.00 g, Excluding Antenna

Package Weight	1.54 lb
Box Dimensions (LxWxH)	7.4 x 5.5 x 2.6"
