Acebil CS-780 Overview
-
1Description
-
2Acebil CH7(F) Fluid Head (100mm Ball)
-
3Acebil T1000G Tripod Legs (100mm Bowl)
-
4Acebil GS-3 Ground Spreader for T750/T752 Tripods
-
5Acebil S-50 Case for P-20, P-30, P-40 or P-50 Tripod

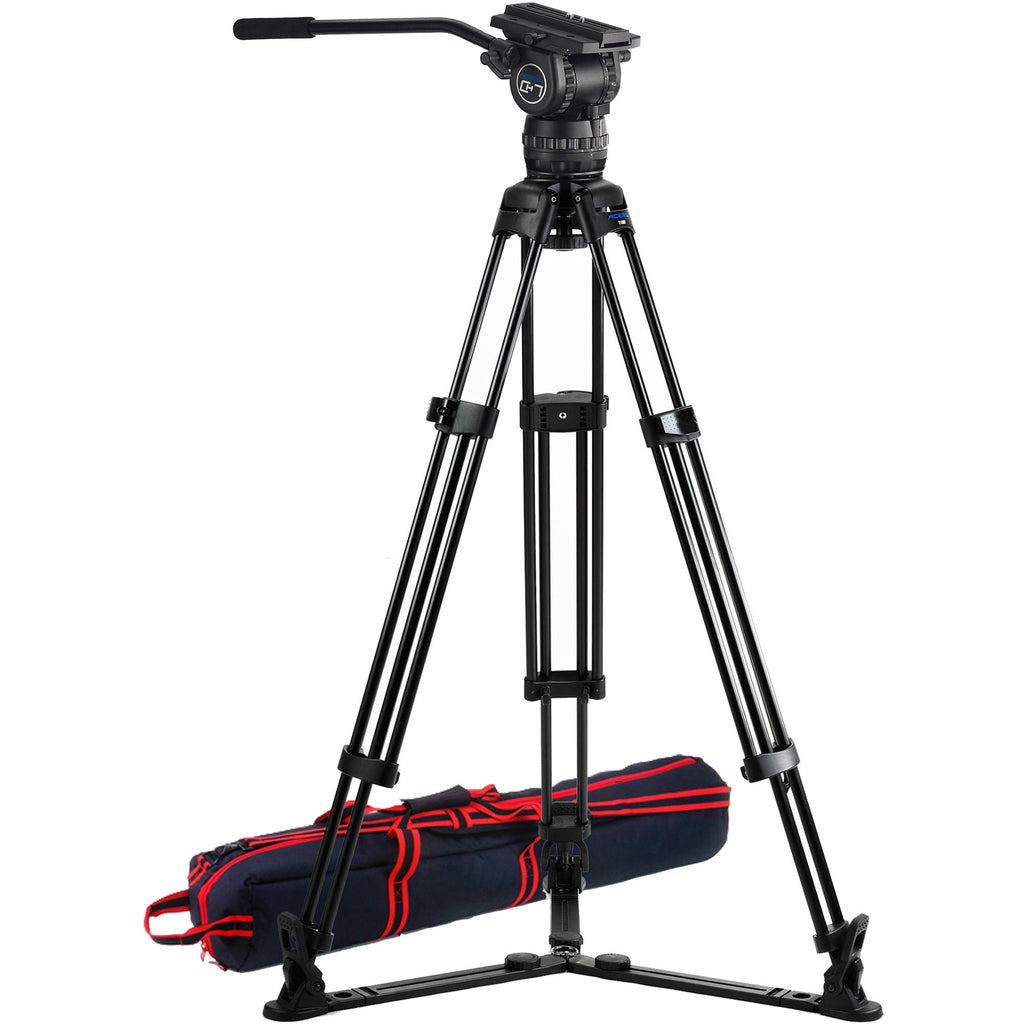

The CS-780G(N) Professional Tripod System Kit from Acebil features a 100mm CH7(F) fluid head, T1000 aluminum tripod, GS-3 ground spreader, and S-50 carrying case. The tripod features a single-stage design and supports payloads up to 39.6 lb. You can adjust the height from 33.5 to 63.8" and use the GS-3 ground spreader to keep the legs in position. The included S-50 carrying bag allows you to comfortably transport the tripod in a safe and protected manner.
Acebil CH7(F) Fluid Head (100mm Ball)
Designed for use with 100mm bowl tripods, the Acebil CH7(F) Fluid Head features a 100mm ball design and supports loads up to 33 lb. An 8-step counterbalance allows you to compensate for the weight of your rig for better balancing, while independent 6-step pan and tilt drag settings provide adjustable resistance for precise movements. A sliding quick release plate attaches to your camera via a 1/4"-20 or 3/8"-16 screw, for easy attachment and removal. To assist in keeping your shots level, even in dim environments, the head has a built-in LED illuminated bubble level. A pan bar comes included and can be attached on either the left or right side of the head.
Key Features
- Supports loads up to 33 lb
- 100mm ball
- 8-Step counterbalance
- Independent 6-step pan and tilt drag settings
- Tilt range: +90° / -70°
- Built-in LED illuminated bubble level
- Sliding quick release plate with 1/4"-20 and 3/8"-16 screws
- Included pan bar can be attached on left or right side of head
Acebil T1000G Tripod Legs (100mm Bowl)
Get your video tripod system started off on the right feet with these T1000G Tripod Legs from Acebil. Able to hold up to 88 lb and equipped with a 100mm bowl fitting for numerous standard heads, this aluminum tripod is a very capable option for many heavy video camera systems. This model features a 1-stage design with an adjustable height of 26.4 to 56.7", as well as a ground spreader for added stability and support. This tripod also includes a carrying case for protection during transport and storage.
Can hold camera systems weighing up to 88 lb
1-stage design allows for height adjustment between 26.4 to 56.7"
Equipped with a ground spreader, users will be able to quickly set up and enjoy a more stable support
Acebil GS-3 Ground Spreader for T750/T752 Tripods
The Acebil GS-3 Ground Spreader for T750/T752 adds stability and rigidity to the Professional series tripod systems allowing you to capture blur-free video. You can use the GS-3 Ground Spreader with the T750/T752 Professional series tripods.
Adds stability and rigidity to the Professional series tripod systems allowing you to capture blur-free video
Holds the tripod legs in position
Supports the Acebil T750 and T752 Professional series tripods
Acebil S-50 Case for P-20, P-30, P-40 or P-50 Tripod
The Acebil S-50 Case (Black) is a replacement for the case supplied with an Acebil P-20, P-30, P-40 or P-50 tripod.
Tripod Case Basics
- Fits Acebil P-20, P-30, P-40 or P-50 tripod
- Replacement item
- Flexible nylon, zippered, lightly padded case
- Two carrying handles
In the Box
- Acebil CH7(F) Fluid Head (100mm Ball)
- Pan Bar
- Quick Release Plate with 1/4"-20 and 3/8"-16 Screws
- Limited 1-Year Warranty
- Acebil T1000G Tripod Legs (100mm Bowl)
- Acebil GS-3 Ground Spreader for T750/T752 Tripods
- Acebil S-50 Case for P-20, P-30, P-40 or P-50 Tripod
- Limited 1-Year Warranty
- Acebil GS-3 Ground Spreader for T750/T752 Tripods
- Acebil S-50 Case for P-20, P-30, P-40 or P-50 Tripod
Table of Contents
- Description
- Acebil CH7(F) Fluid Head (100mm Ball)
- Acebil T1000G Tripod Legs (100mm Bowl)
- Acebil GS-3 Ground Spreader for T750/T752 Tripods
- Acebil S-50 Case for P-20, P-30, P-40 or P-50 Tripod
Acebil CH7(F) Fluid Head (100mm Ball) Specs
Camera Plate
| Camera Plate Features |
Sliding Balance Plate, Quick Release |
| Camera Mounting Screw |
1 x 1/4"-20 Male
1 x 3/8"-16 Male |
Tripod Platform
| Base Mount |
100 mm Half Ball |
Pan & Tilt
| Drag Control |
6-Step Plus 0 |
| Vertical Tilt |
+90° to -70° |
| Panning Range |
360° |
| Independent Pan Lock |
Yes |
| Independent Tilt Lock |
Yes |
Physical
| Load Capacity |
33 lb / 14.97 kg |
| Counter Balance |
Incremental 8-Step Plus 0 |
| Bubble Level |
1 x Illuminated |
| Weight |
7.5 lb / 3.4 kg |
Acebil T1000G Tripod Legs (100mm Bowl) Specs
General
| Head Mount Type |
100 mm Bowl |
| Load Capacity |
88 lb / 40 kg |
| Maximum Working Height |
56.7" / 144 cm |
| Minimum Working Height |
26.4" / 67 cm |
| Folded Length |
34.7" / 88.1 cm |
| Materials |
Aluminum |
| Weight |
7.9 lb / 3.6 kg |
Packaging Info
| Package Weight |
14.2 lb |
| Box Dimensions (LxWxH) |
40 x 9 x 9" |
Acebil GS-3 Ground Spreader for T750/T752 Tripods Specs
Packaging Info
| Package Weight |
2.1 lb |
| Box Dimensions (LxWxH) |
17.1 x 5.4 x 4.9" |
Acebil S-50 Case for P-20, P-30, P-40 or P-50 Tripod Specs
| Carrying/Transport Options |
Connecting Handles |
| Type of Closure |
Zipper |
| Exterior Material |
Nylon |
| Padded |
Yes |
| Interior Dimensions |
H: 10.0 x W: 8.0 x L: 45.0" / H: 25.4 x W: 20.3 x L: 114.3 cm |
| Weight |
2.8 lb / 1.3 kg |
Packaging Info
| Package Weight |
2.8 lb |
| Box Dimensions (LxWxH) |
21.7 x 15 x 5.2" |
