Description
Acebil CS-892 Overview
- 1Description
- 2Acebil CH8(F) Fluid Head (100mm Ball)
- 3Acebil D-5 Heavy Duty Dolly
- 4Acebil S-50 Case for P-20, P-30, P-40 or P-50 Tripod

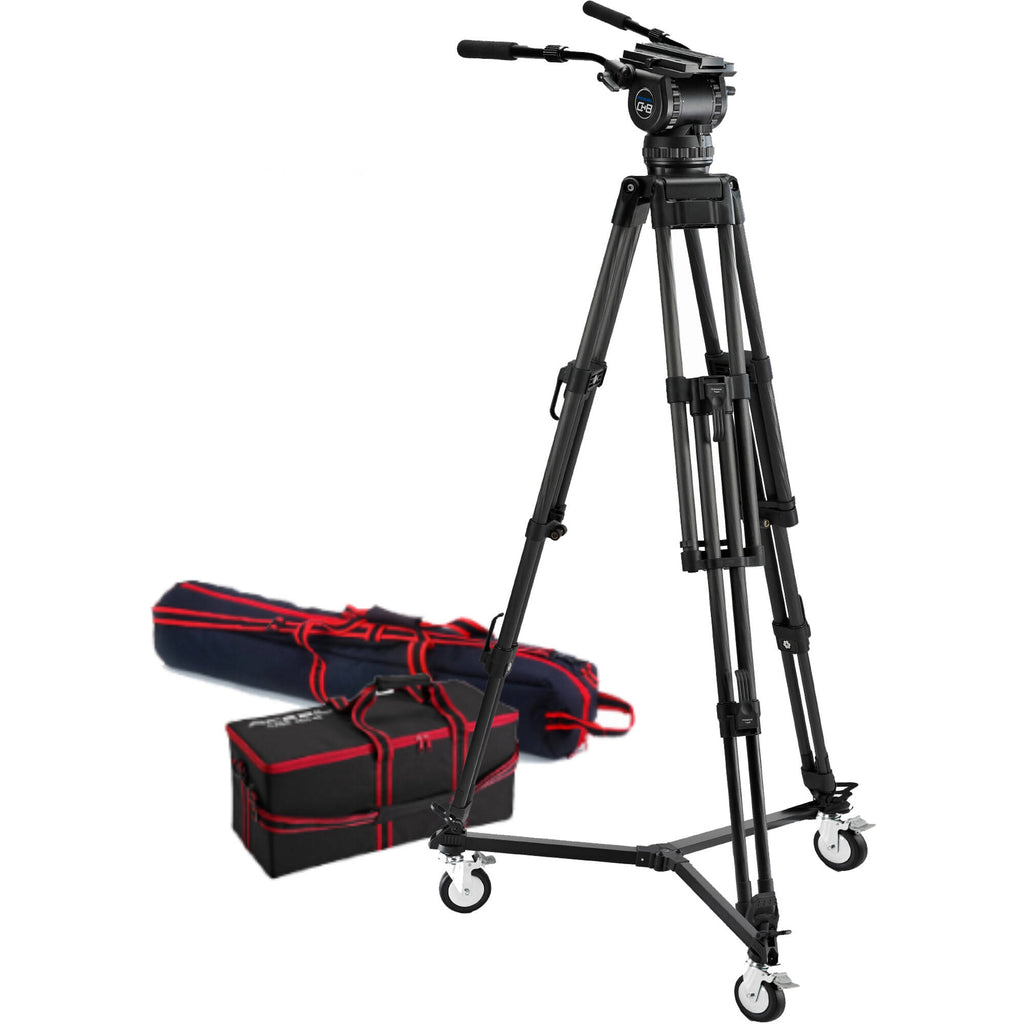

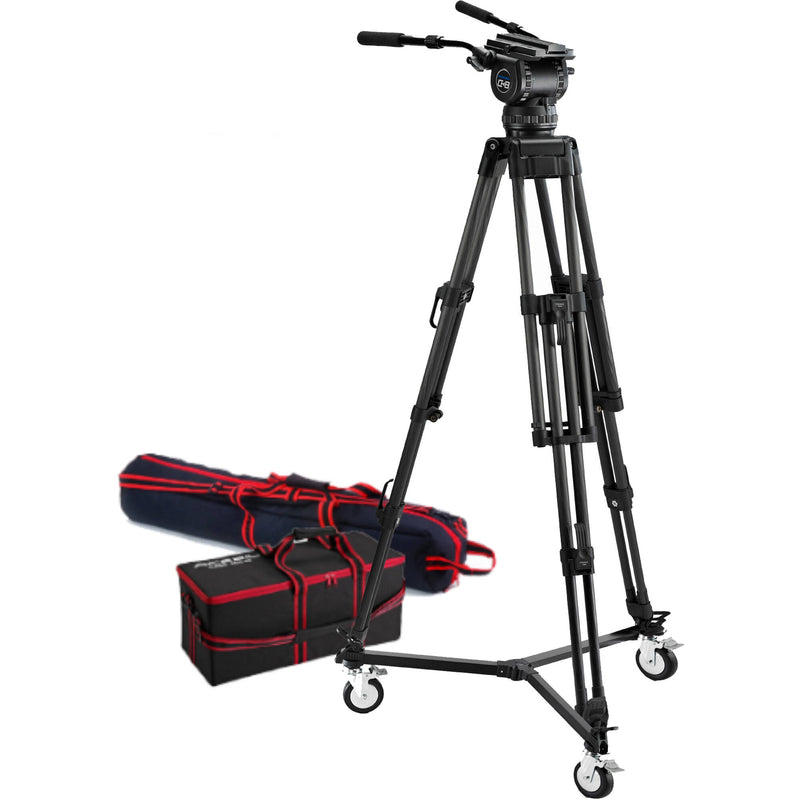

Add a complete studio tripod system to your kit with this CS-892 STUDIO T2002C Tripod with CH8(F) Head, Case, Dolly & Dual Handles from Acebil. This professional video tripod system is designed for camera setups weighing up to 55 lb in studio environments. It includes the CH8(F) 100mm ball fluid head, a T2002C 2-stage carbon fiber tripod, a D-5 floor dolly, dual handles, and a carry case for storage and transport of the system.
The CH8(F) head features an 8-step counterbalance to support loads up to 55 lb, it has independently adjustable 6-step pan and tilt drag, and it provides a sliding quick release plate and pan bar.
The Acebil CH8(F) Fluid Head is a professional fluid video head designed to support cameras and accessories weighing up to 55 pounds, with a 100mm half ball for quick leveling. It features an 8-step counterbalance to adjust the head for use with loads ranging from 0 to 44 lb; the counterbalance also has a zero setting. Pan and tilt are independently adjustable, and each has eight steps of drag, plus the zero setting for completely free movement, such as whip pans/tilts.
The head features a sliding baseplate for balancing your camera, and it has both a 1/4"-20 and 3/8"-16 tie-down screw. An illuminated bubble level helps you set the level of the head. The head also features two pan handle attachment rosettes, enabling you to mount the included pan handle onto either side of the head.
- 100mm half ball
- 55 lb load capacity
- 8-step counterbalance supports loads from 0 to 44 lb
- Independent pan and tilt drag with 8 steps plus a zero setting
- Sliding quick release plate with 3/8"-16 and 1/4"-20 screws
- Bubble level with LED light
- Telescopic pan handle
The Acebil D-5 Heavy Duty Dolly comes with a carry case and is designed for use with Professional, Prosumer, Pedestal, and Jib-Arm Series camera support equipment.
The Acebil S-50 Case (Black) is a replacement for the case supplied with an Acebil P-20, P-30, P-40 or P-50 tripod.
- Fits Acebil P-20, P-30, P-40 or P-50 tripod
- Replacement item
- Flexible nylon, zippered, lightly padded case
- Two carrying handles
In the Box
- Acebil CH8(F) Fluid Head (100mm Ball)
- Acebil Quick Release Slide Plate for CH8/CH9/CHX Head (XL)
- Acebil Left-Side Pan Bar for CH8 Tripod Head
- Limited 1-Year Warranty
- Acebil D-5 Heavy Duty Dolly
- Limited 1-Year Warranty on Parts & Labor
- Acebil S-50 Case for P-20, P-30, P-40 or P-50 Tripod
- ACT2002 Tripod Legs
- Dual Handle Set
- Description
- Acebil CH8(F) Fluid Head (100mm Ball)
- Acebil D-5 Heavy Duty Dolly
- Acebil S-50 Case for P-20, P-30, P-40 or P-50 Tripod
Acebil CH8(F) Fluid Head (100mm Ball) Specs
| Camera Plate Features |
Sliding Balance Plate
|
| Camera Mounting Screw |
1x 1/4"-20 Male
1x 3/8"-16 Male |
| Base Mount |
100 mm Half Ball
|
| Counter Balance |
Incremental 8-Step Plus 0 (0 to 44 lb / 0 to 19.96 kg)
|
| Drag Type |
Fluid
|
| Load Capacity |
55 lb / 24.95 kg
|
| Camera Plate Features |
Sliding Balance Plate
|
| Camera Mounting Screw |
1x 1/4"-20 Male
1x 3/8"-16 Male |
| Base Mount |
100 mm Half Ball
|
| Counter Balance |
Incremental 8-Step Plus 0 (0 to 44 lb / 0 to 19.96 kg)
|
| Pan Handle Fittings |
2x Rosette
|
| Bubble Level |
1x Illuminated
|
| Drag Control |
Pan: 8-Step Plus 0
Tilt: 8-Step Plus 0 |
| Drag Type |
Fluid
|
| Vertical Tilt |
+90° to -70°
|
| Panning Range |
360°
|
| Independent Pan Lock |
Yes
|
| Independent Tilt Lock |
Yes
|
| Load Capacity |
55 lb / 24.95 kg
|
| Weight |
10.6 lb / 4.81 kg
|
Acebil D-5 Heavy Duty Dolly Specs
| Tripod Foot Compatibility |
Spiked Feet
|
| Working Footprint |
34.2" / 86.87 cm
|
| Adjustable Footprint |
No
|
| Load Capacity |
200 lb / 90 kg
|
| Closed Length |
22.5" / 57.0 cm
|
| Height |
9.0" / 23.0 cm
|
| Locking Wheels |
Yes
|
| Wheel Diameter |
4.9" / 12.5 cm
|
| Cable Guards |
No
|
| Material |
Aluminum
|
| Weight |
11.7 lb / 5.3 kg
|
| Package Weight |
22 lb
|
| Box Dimensions (LxWxH) |
25 x 12 x 12"
|
Acebil S-50 Case for P-20, P-30, P-40 or P-50 Tripod Specs
| Color |
Black
|
| Carry/Transport Options |
Handle
|
| Type of Closure |
Zipper
|
| Dimensions |
Interior
45 x 10 x 8" / 114.3 x 25.4 x 20.3 cm |
| Weight |
2.8 lb / 1.3 kg
|
| Carry/Transport Options |
Handle
|
| Type of Closure |
Zipper
|
| ATA Compliant |
No
|
| Bottle Pocket |
No
|
| Pressure/Purge Valve |
No
|
| Materials |
Exterior: Nylon
|
| Padded Interior |
Yes
|
| Dimensions |
Interior
45 x 10 x 8" / 114.3 x 25.4 x 20.3 cm |
| Weight |
2.8 lb / 1.3 kg
|
| Package Weight |
2.8 lb
|
| Box Dimensions (LxWxH) |
21.7 x 15 x 5.2"
|
