| ₹ 22690.0 includes GST and import duties. | |
| B2B customers can avail ₹ 3460.23 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

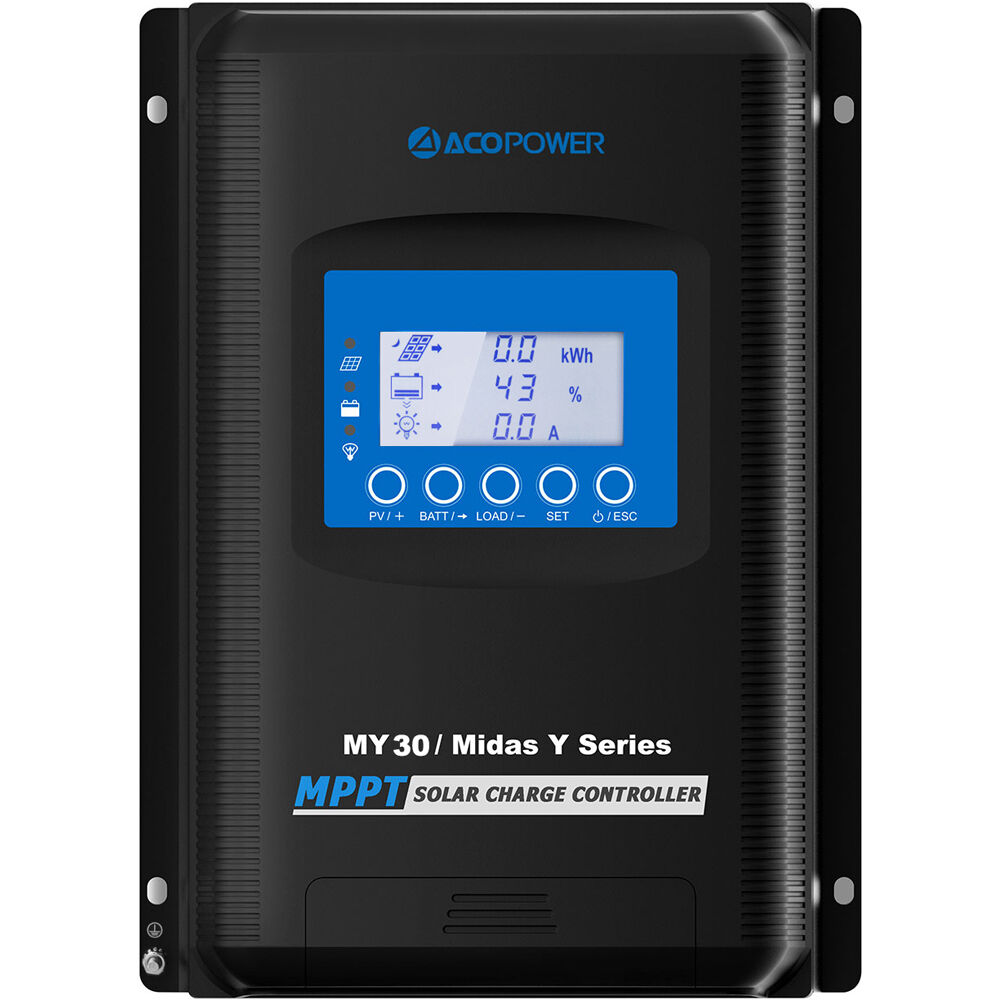

ACOPower 30A MPPT Overview
- 1Description
- 2Rated Charge Current
- 3Nominal System Voltage
- 4Battery Input Voltage Range
- 5Maximum PV Open Circuit Voltage
- 6MPPT Voltage Range
- 7Communication Port
- 8Power Terminals
- 9Grounding
- 10Rated Charge Power

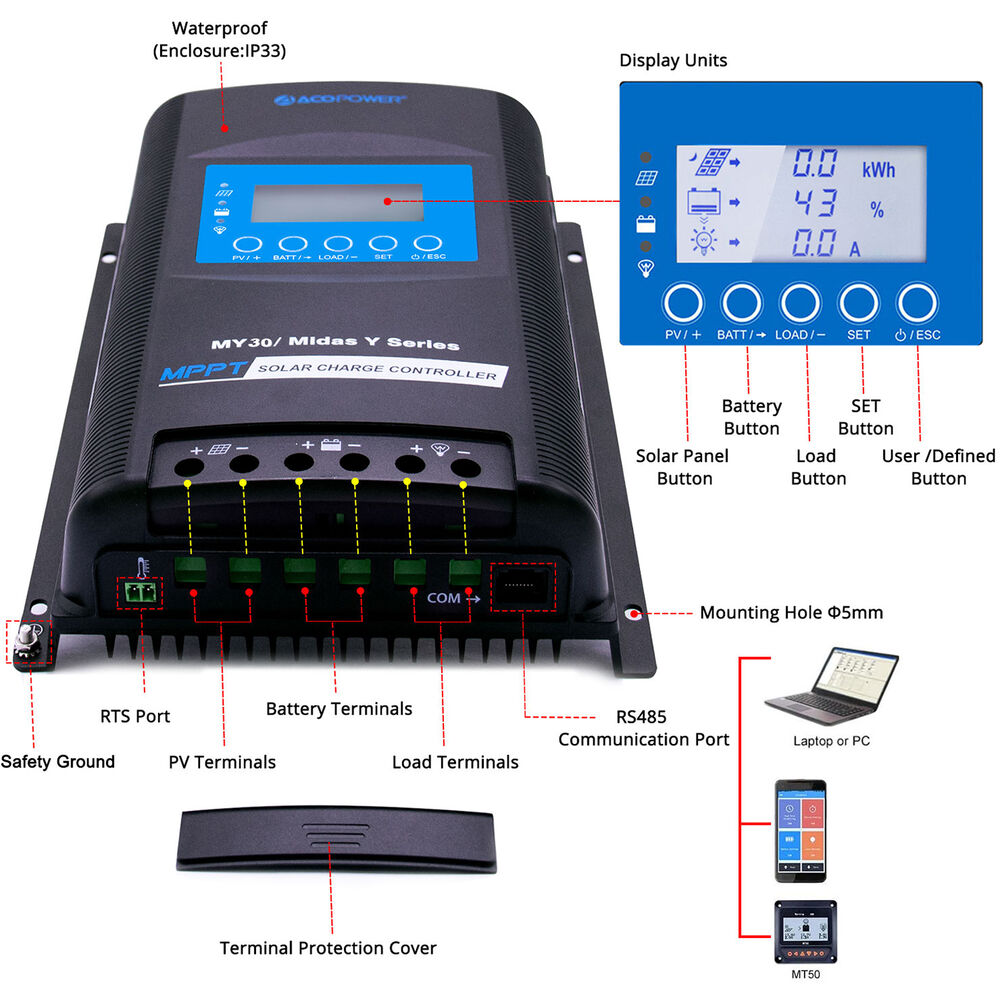

With the Midas 30A MPPT Solar Charge Controller from ACOPower, you can use your solar panels to safely and efficiently recharge 12 or 24V batteries. This negative-ground controller offers tracking efficiency up to 99.5% and 98% peak conversion efficiency. It can be used with flooded, sealed, gel, and Li-ion batteries. The plug-and-play controller is easy to use and automatically detects the solar panel voltage to deliver bulk, boost, float, and equalization charging.
Rated Charge Current
30A
Nominal System Voltage
12/24 VDC (auto)
Battery Input Voltage Range
8-32V
Maximum PV Open Circuit Voltage
100V at minimum operating temperature / 92V at 77°F
MPPT Voltage Range
Battery Voltage (+ 2V) - 72V
Communication Port
RS-485 (RJ45)
Power Terminals
Up to 6 AWG
Grounding
Common negative
Rated Charge Power
12V/390W, 24V/780W
UPC: 810073753310
In the Box
- ACOPower Midas 30A MPPT Solar Charge Controller
- Temperature Sensor
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Rated Charge Current
- Nominal System Voltage
- Battery Input Voltage Range
- Maximum PV Open Circuit Voltage
- MPPT Voltage Range
- Communication Port
- Power Terminals
- Grounding
- Rated Charge Power
ACOPower 30A MPPT Specs
Environmental
| IP Rating | IP33 |
| Operating Temperature | 7 to 82°F / -25 to 50°C |
| Storage Temperature | -31 to 176°F / -35 to 80°C |
Physical

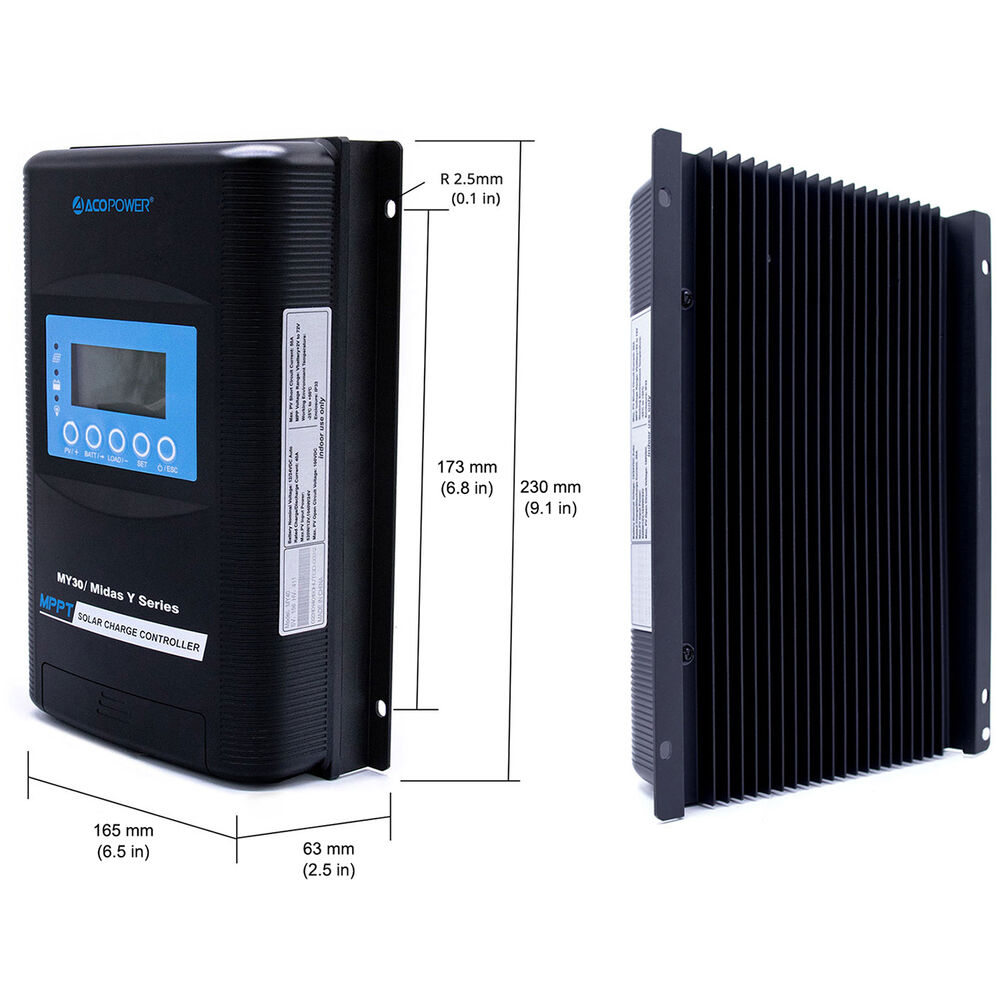

| Dimensions | 9 x 6.5 x 2.2" / 22.8 x 16.4 x 5.5 cm |
| Weight | 2.6 lb / 1.2 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 22236.2 |
| 3-5 | ₹ 22009.3 |
| 5-10 | ₹ 21555.5 |
| 10+ | ₹ 21101.7 |
Bulk discount will be automatically applied during checkout based on quantity.
