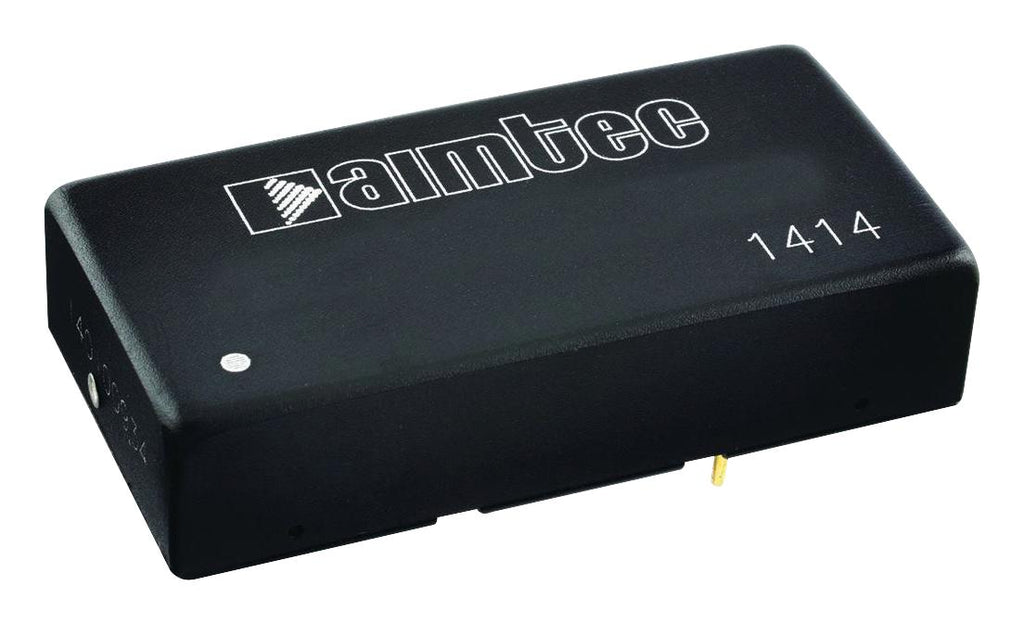

- AM20EW-NZ series 20W DC to DC converter
- Input voltage range from 40 to 160V, output voltage is 24V
- Maximum output current is 833mA, isolation is 2250VDC, efficiency is 86%
- Ultra-wide 4:1 Input range, no-load consumption <=0.15W
- Input under voltage lockout, on/off remote control
- Over current protection, over voltage, continuous short circuit protection
- Typical switching frequency is 270KHz (100% load)
- Aluminium alloy case material
- Operating temperature range from -40°C to +85°C
- Dimensions (L x W x H) is 50.8 x 25.4 x 11.8mm
Other details
| Brand |
AIMTEC |
| Part Number |
AM20EW-11024SH22-NZ |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
