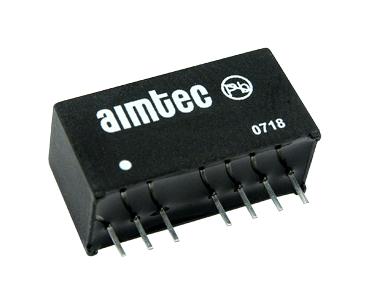

- AM2G-Z series 2W DC to DC converter
- Input voltage range from 18 to 36V, output voltage is 12V
- Maximum output current is 167mA, isolation is 1000VDC, efficiency is 80%
- Regulated, remote on/off control, 8 pin SIP package
- Continuous short circuit protection, wide 2:1 input range
- UL certified
- Typical switching frequency is 650KHz (>100)
- Non-conductive black plastic (UL94V-0 rated) case material
- Operating temperature range from -40°C to +85°C
- Dimensions (L x W x H) is 21.85 x 9.20 x 11.10mm
Other details
| Brand |
AIMTEC |
| Part Number |
AM2G-2412SZ |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
