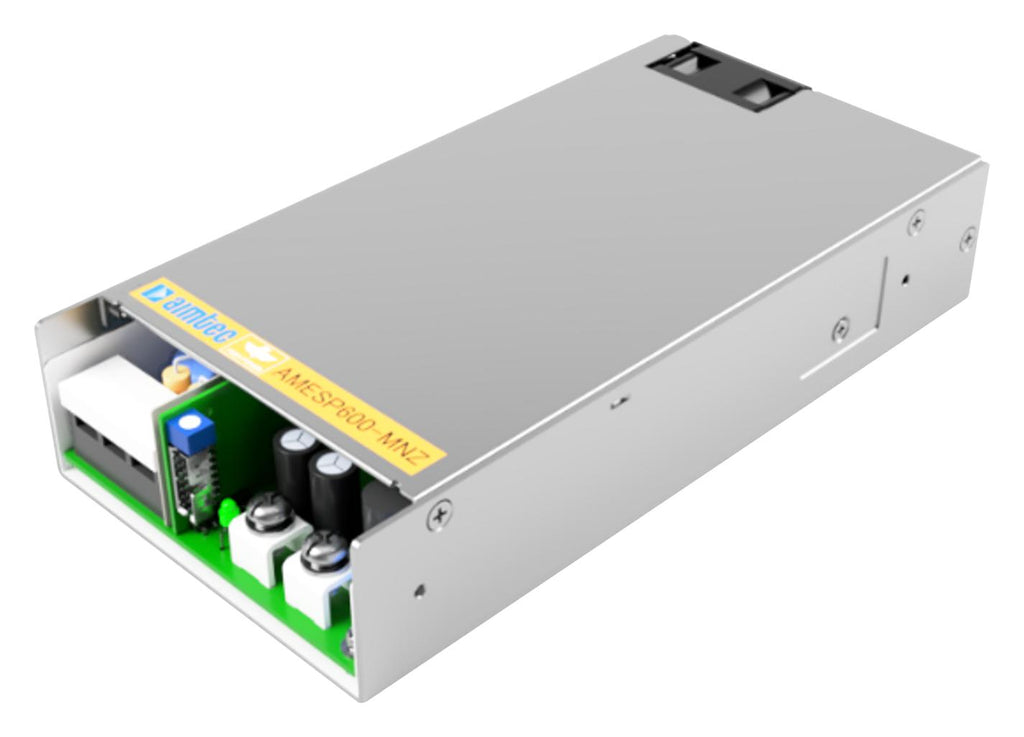

AMESP600-15SMNZ is an AMESP600-MNZ Aimtec's eagle series AC/DC power supply. It offers greater cost effectiveness due to material normalization and production automation also leading to improved reliability and performance. The AMESP600-MNZ is suitable for grid power, ATM machine, instrumentation, industrial controls, telecommunication and medical equipment applications.
- Input voltage range from 80-277VAC/47-63Hz, 110-390VDC
- Output voltage is 15V
- Maximum output current is 40A
- Efficiency is 92% at 230VAC
- Maximum low ripple & noise is 150mV(p-p)
- Output short circuit, over-current, over-voltage and over temperature protection
- Remote sense compensation, remote ON/OFF function
- Regulated output
- Operating temperature range -40°C to +70°C
- 3 years warranty, dimensions (L x W x H) is 101.6 x 203.1 x 40.6mm
Product details
| Power Supply Applications:
ITE, Household & Medical
|
| No. of Outputs:
1Outputs
|
| Output Power Max:
600W
|
| Output Voltage - Output 1:
15V
|
| Output Current - Output 1:
40A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
80V AC to 277V AC
|
| Power Supply Output Type:
Adjustable, Fixed
|
| Product Range:
AMESP600-MNZ Series
|
Other details
| Brand |
AIMTEC |
| Part Number |
AMESP600-15SMNZ |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
