AMSRO-7805-NZ is an AMSRO-78-NZ series up to 7.5W DC-DC switching regulator. It features non-isolated, very low no load input current, pin compatible to LM78xx. It includes short circuit protection. Certified by UL, IEC/EN/UL60950-1.
- Nominal input voltage is 24V, input voltage range from 6.5 to 36V
- Output voltage is 5V, maximum output current is 500mA
- Output voltage is ±5V, maximum output current is 500mA, -300mA
- Efficiency is 90%, 80%(Vin, min), 84%, 81%(Vin, max)
- Operating temperature range from -40°C to +85°C
- Dimensions (L x W x H) is 10.00 x 7.20 x 11.00mm
Other details
| Brand |
AIMTEC |
| Part Number |
AMSRO-7805-NZ |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

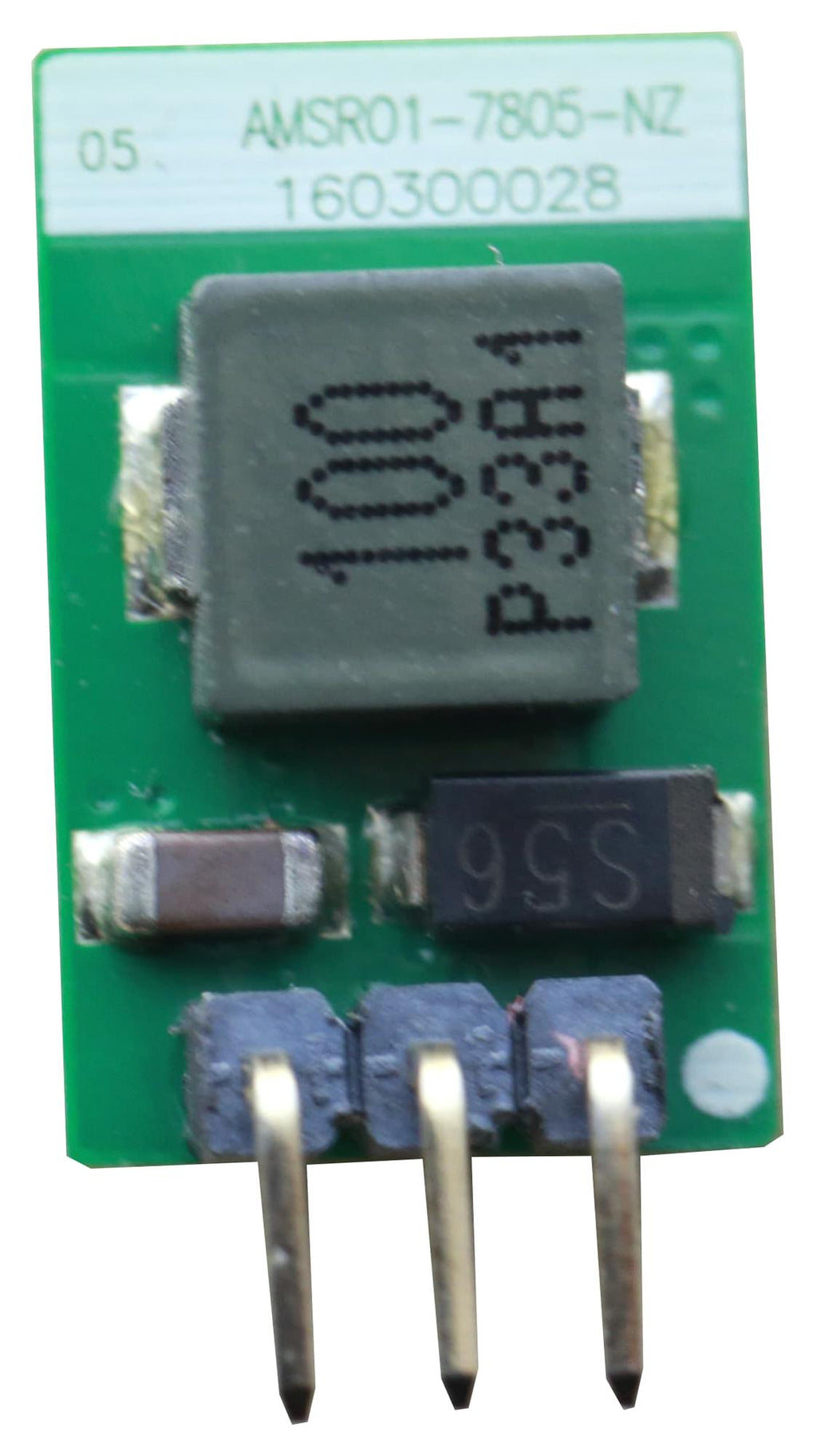

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
