Description
Aiphone 82220350C Overview

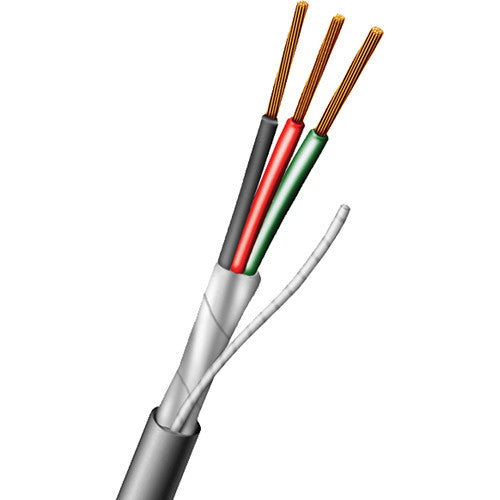

The 500 foot 822203 Three-Conductor Shielded WireWire from Aiphone is a 3-conductor, 22 AWG Mylar shielded bulk cable, and is technically matched for use with the company's intercom systems. Utilizing the correct cable helps ensure proper system performance.
Manufactured in accordance to UL standard 444, NEC listed Type CMR & UL standard 14, NEC listed type CL3R C(UL) 75°C Sunlight Resistant California State Fire Marshall Approved
Suggested working voltage: 300V
UPC: 788255220328
In the Box
- Aiphone 822203 Three-Conductor Shielded Wire - For Aiphone Intercom Systems (500')
- Limited 1-Year Warranty
Aiphone 82220350C Specs
| Conductor |
22 AWG
7-strand Bare copper |
| Insulation |
Material: Color-coded polyvinylchloride
Wall Thickness: 0.07" |
| Assembly |
Lay Length: 2"
Shield: Aluminum Mylar tape - 100% coverage Drain: 24 AWG 7-strand tinned copper (TAC) wire |
| Jacket |
Material: Polyvinylchloride
Wall Thickness: 0.015" Diameter: Nominal 0.125" Color: Gray Weight: 7 lb (3.2 kg) Ripcord: Yes |
| Electrical Characteristics |
Capacitance: 44.62 pF/ft
D.C. Resistance: 17.5 ? per 1000' (305 m) @ 68°F (20°C) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
