Description

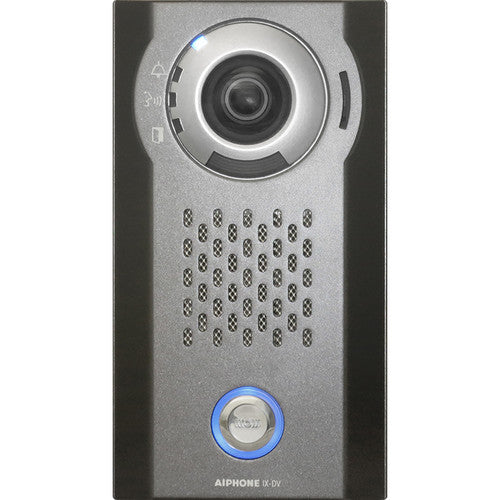

Aiphone IX-DV Overview
Designed for their IX Series, which is a peer-to-peer video intercom with SIP compliance, the Aiphone IX-DV Surface-Mounted IP Video Door Station connects to your network using a Cat 5e or 6 cable and receives power via PoE. This door station features a 1.23MP fixed color camera, along with white LED illumination for low-light conditions, two contact outputs for door release and external signaling, and six trigger inputs for outgoing calls or to answer a call/page. A memory card slot supports microSD cards for storing captured audio and video (available separately).
Compliance with ONVIF profile S enables interoperability with a wide range of surveillance devices. The IX-DV is IP54 rated for protection from water/dust and IK08 rated for protection from vandalism.
In the Box
- Aiphone IX-DV Surface-Mounted IP Video Door Station
- 4 x Anchors
- 4 x Wall Mounting Screws
- Special Screwdriver
- Option Connectors (6-Pin x 1, 7-Pin x 1, 8-Pin x 1)
- 2 x Ferrite Cores
- Limited 2-Year Manufacturer Warranty
Additional Resources
Aiphone IX-DVSpecs
| Compatibility |
Aiphone IX Series
|
| Security |
Port Security: IEEE 802.1X
|
| Camera |
1.23 MP Fixed Color Camera
|
| Minimum Illumination |
5 Lux
|
| Sensor |
1/3" CMOS
|
| Compression |
G.711 (µ-Law, A Law), G.722
|
| Network Protocols |
IPv4, IPv6, TCP, UDP, SIP, P2P, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS
|
| Video Compression |
H.264/AVC, MJPEG
|
| Network |
RJ45
|
| Power Source |
PoE, AC Input (Not Included)
|
| DC Input Power |
24 VDC
|
| Power Consumption |
5.28 W
|
| Mounting |
Multiple Surface
|
| Color |
Silver / Black
|
| Material of Construction |
Anodized Aluminum
|
| Environmental Resistance |
Dust/Water-Resistant (IP54)
|
| Impact Resistance |
Impact-Resistant (IK08)
|
| Certifications |
UL 62368-1, cUL 62368-1
|
| Operating Conditions |
-40 to 140°F / -40 to 60°C
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
8.1 x 4.5 x 2.1" / 205.7 x 114.3 x 53.3 mm
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
2.31 lb
|
| Box Dimensions (LxWxH) |
9.4 x 5.9 x 2.4"
|
