Description
Alfatron ALF-25X-4KCAM Overview
The Alfatron 25X-4KCAM 4K PTZ Camera with 25x Zoom Lens in white features an advanced high-speed processor with AI Powered Auto Tracking. This PTZ camera is suitable for medium- to large-sized meeting rooms, boardrooms, conference venues, and houses of worship. The Alfatron 25X-4KCAM is compatible with video meeting software, such as Zoom and Teams. The camera supports HDMI, USB 2.0, SDI, LAN, and outputs 4K audio and video simultaneously.
UPC: 658325231199
Items Included
- Alfatron 25X-4KCAM 4K PTZ Camera with 25x Zoom Lens (White)
- Limited 7-Year Manufacturer Warranty
Additional Resources
Alfatron ALF-25X-4KCAM Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.51 Megapixel
|
| Shutter Speed |
1/10000 to 1/25 Second
|
| Optical Zoom Ratio |
25x
|
| External Recording Modes |
HDMI
3840 x 2160 at 25/29.97/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps RJ45 / USB 3840 x 2160 at 30.00 fps 1920 x 1080p at 25/30.00/50/60.00 fps 1600 x 896 at 25/30.00/50/60.00 fps 1280 x 720 at 25/30.00/50/60.00 fps 800 x 600 at 25/30.00/50/60.00 fps 1024 x 576p at 25/30.00/50/60.00 fps 720 x 576p at 25/30.00/50/60.00 fps 960 x 540 at 25/30.00/50/60.00 fps 720 x 480p at 25/30.00/50/60.00 fps 640 x 480p at 25/30.00/50/60.00 fps 800 x 448 at 25/30.00/50/60.00 fps 640 x 360 at 25/30.00/50/60.00 fps 352 x 288 at 25/30.00/50/60.00 fps 480 x 270p at 25/30.00/50/60.00 fps 320 x 240 at 25/30.00/50/60.00 fps SDI/BNC 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1920 x 720 at 50/59.94/60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, MJPEG, ONVIF, RTMP, RTP, RTSP
3840 x 2160 at 30p 320 x 240 to 1920 x 1080 at 25p, 30p, 50p, 60p |
| Supported Control Protocols |
Pelco-D
Pelco-P RS-232 RS-422 RS-485 VISCA |
| PoE Support |
PoE 802.3af
|
| Mounting |
1x 1/4"-20 Female for Bracket/Tripod
|
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.51 Megapixel
|
| IR Cut Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1/25 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 3000 to 7000K
Presets: Auto, Manual, One Push |
Lens
| Focal Length |
7.1 to 175.11mm
|
| Optical Zoom Ratio |
25x
|
| Field of View |
Horizontal: 59.2 to 2.5°
Vertical: 34.6 to 1.4° |
| Maximum Aperture |
f/1.61 to 5.15
|
Video Capture
| External Recording Modes |
HDMI
3840 x 2160 at 25/29.97/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps RJ45 / USB 3840 x 2160 at 30.00 fps 1920 x 1080p at 25/30.00/50/60.00 fps 1600 x 896 at 25/30.00/50/60.00 fps 1280 x 720 at 25/30.00/50/60.00 fps 800 x 600 at 25/30.00/50/60.00 fps 1024 x 576p at 25/30.00/50/60.00 fps 720 x 576p at 25/30.00/50/60.00 fps 960 x 540 at 25/30.00/50/60.00 fps 720 x 480p at 25/30.00/50/60.00 fps 640 x 480p at 25/30.00/50/60.00 fps 800 x 448 at 25/30.00/50/60.00 fps 640 x 360 at 25/30.00/50/60.00 fps 352 x 288 at 25/30.00/50/60.00 fps 480 x 270p at 25/30.00/50/60.00 fps 320 x 240 at 25/30.00/50/60.00 fps SDI/BNC 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1920 x 720 at 50/59.94/60.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/USB
|
| Audio Recording |
G.711A Audio
AAC Audio MP3 Audio |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, MJPEG, ONVIF, RTMP, RTP, RTSP
3840 x 2160 at 30p 320 x 240 to 1920 x 1080 at 25p, 30p, 50p, 60p |
Control
| Presets |
255
10 via IR |
| Pan/Tilt |
Pan: 220° (-110 to 110°) at 0.1 to 100°/s
Tilt: 60° (-30 to 30°) at 0.1 to 70°/s |
| Tally Light |
Yes
|
| Supported Control Protocols |
Pelco-D
Pelco-P RS-232 RS-422 RS-485 VISCA |

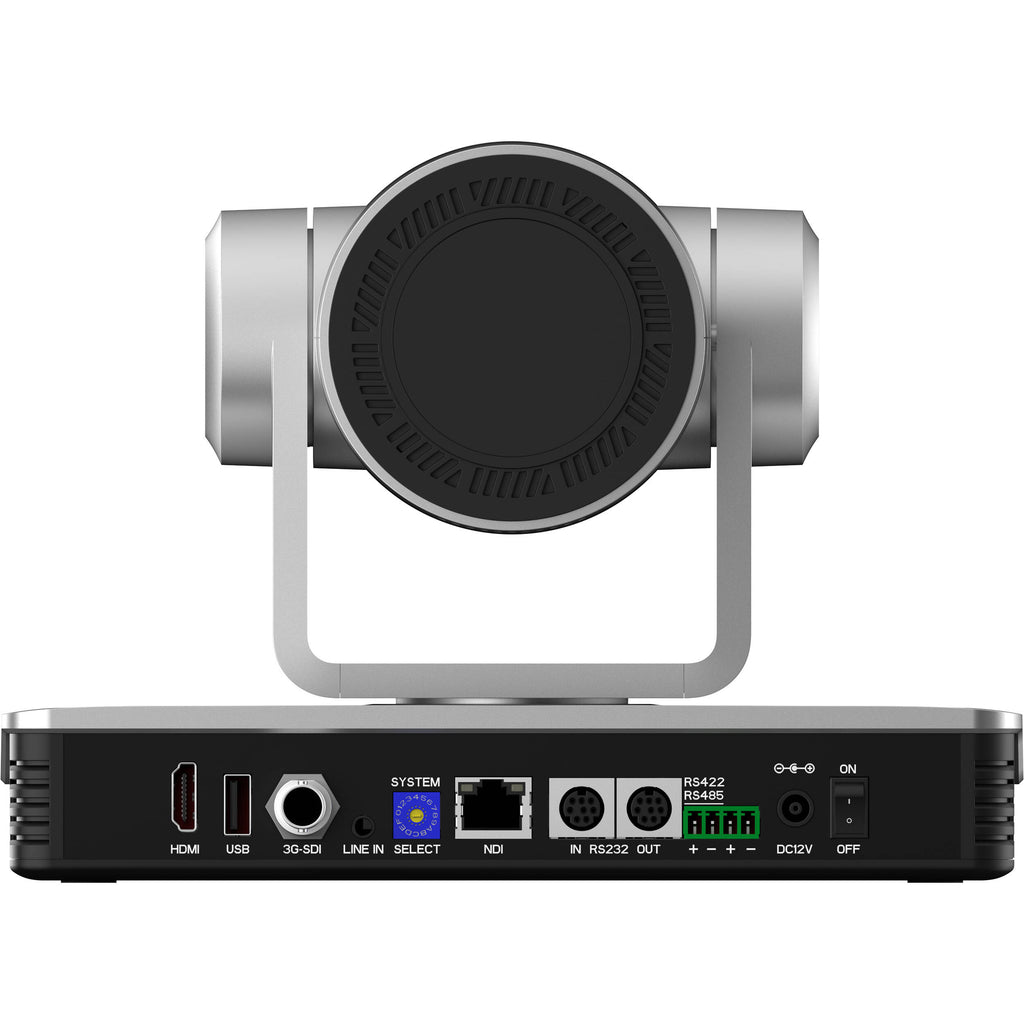

Interface
| Video I/O |
1x HDMI (Unspecified Signal) Output
1x USB-A 2.0 Output 1x BNC (3G-SDI) Output 1x RJ45 (Unspecified Signal) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x Mini-DIN 8-Pin (RS-232) Control Input
1x Mini-DIN 8-Pin (RS-232) Control Output 1x Block 4-Pin (RS-422, RS-485) Control |
| Built-In Speaker |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x Barrel (12VDC at 2.5 A) Input
|
| Power Consumption |
Power Supply: 110 to 220 VAC
Device: 12 W |
Environmental
| Operating Conditions |
14 to 122°F / -10 to 50°C at 20 to 80% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 20 to 95% Humidity
|
| Impact Resistance |
No
|
| Environmental Resistance |
No
|
General
| Mounting |
1x 1/4"-20 Female for Bracket/Tripod
|
| Certifications |
FCC Part 15 Class B, CAN ICES-3(B)/NMB-3(B), CE, FCC, EAC
|
| Dimensions (W x H x D) |
5.7 x 6.3 x 8.7" / 144 x 159 x 220 mm
|
| Weight |
3.7 lb / 1.7 kg (Body Only)
|
