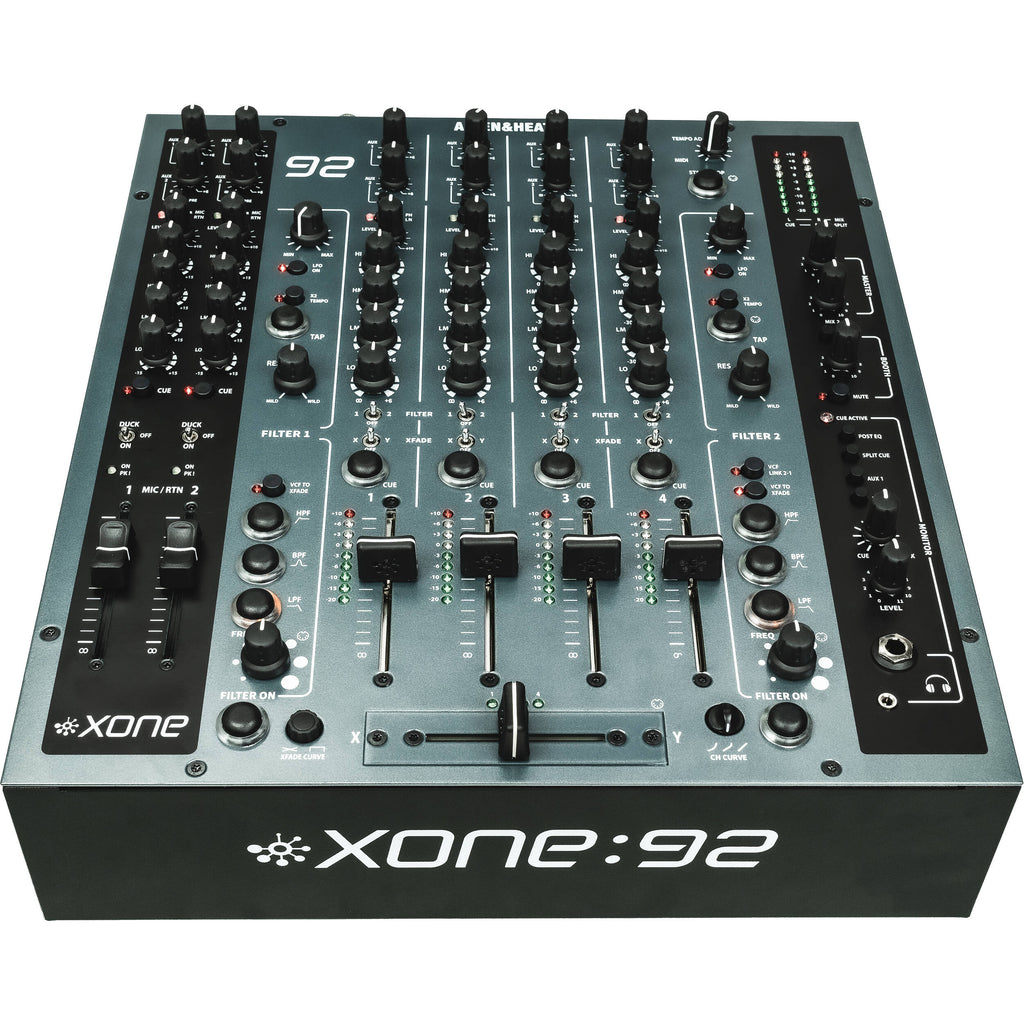

Allen & Heath XONE:92 MK2 Professional 4+2 Channel Analog DJ Mixer

At a Glance

• Four Phono/Line channels + Two Mic/Line channels
• 100% analog circuitry and mix bus summing
• Dual analog filters with silent switching
• Precision 4-band EQ control
• Custom mini innoFADER Pro for smoother mixing
• Updated storm gray colorway and refocused UV legend
• New 3-way, global channel fader curve switch
• Improved channel 1-4 input level and source-matching
• Refined Xone:VCF tapers for enhanced control
• Optimized RIAA preamps
• Removable dual-ground adapter
• Rear-panel mic clean feed switches

The Iconic 92 Sound. Refined

• For two decades, the Xone:92 set the sonic standard for dance music with its all-analog signal path.
• The new Xone:92 MK2 delivers the iconic sound that DJs and clubbers have come to love, but with the latest high-performance analog components in the audio path.
• Experience bass that moves crowds, highs that cut through, and a warmth digital can't touch. Connect with your audience on a physical level�from intimate clubs to massive festivals.

The Legendary Filter. Perfected

• The Xone:92 filter changed the game when it made its debut in 2004. Twenty years on, it's still the benchmark, and the new Xone:92 MK2 takes it further.
• The updated filter provides extended frequency precision thanks to an optimized control curve while retaining the 92�s fabled filter sound. Silent filter switching enables seamless transitions, and enhanced resonance lets you explore new dimensions in your performances.

Built for the Booth

• The new Xone:92 MK2 is built to withstand the rigors of clubs, festivals, and relentless touring thanks to its rugged, tried, and tested chassis designed for night after night of high-energy sets.
• The crossfader has been updated to the industry-favorite mini innoFADER Pro, tuned to match the curve of the original 92 fader while providing a smoother, more precise and longer-lasting mixing experience.
• The new Xone:92 MK2 revamps the classic Storm Gray colorway with enhanced UV printing for low-light legibility, and a refocused legend for increased visibility of key controls, with recessed Filter and XFade assign switches further improving ergonomics.

The Ultimate Analog EQ

• The Xone:92�s unrivalled analog EQ delivers all the control you need to sculpt your sound and get creative with your transitions.
• All phono/line channels feature our renowned 4-band EQ with total kill on HF and LF bands, plus dual mid-frequency controls for the ultimate in tonal control.
• Mic channels include a 4-band EQ with ±15 dB on all bands.

Precision-Tuned Preamps

The Xone:92 MK2 phono preamp has been fine-tuned to get the best out of your vinyl with an RIAA curve tailored specifically for techno and house, and improved Line/Phono source matching for easy integration of analog and digital sources.

Allen & Heath Xone92 MK2 Specs

Configuration	4-Deck
Number of Channels	4 2x Mic 2x Mic/Aux
Performance Controls	BPM Counter, Band-Pass Filter, Beat Sync, High-Pass Filter, Low-Pass Filter, Voice Ducking
Built-In Effects	No

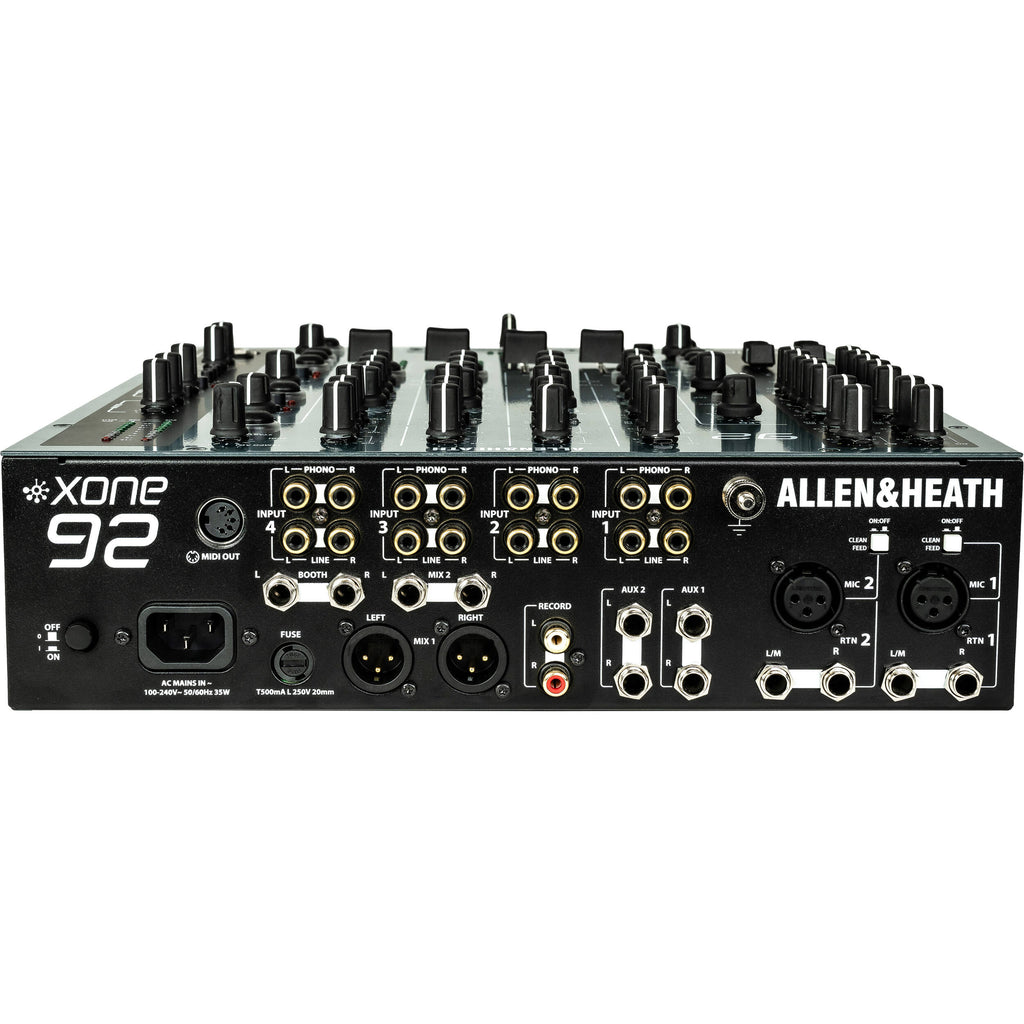

Audio Inputs	2x Stereo 2RCA Coaxial Line Input 2x 1/4" TRS Return Input 2x XLR 3-Pin Mic Input 2x 1/4" TRS Aux/Return Input
Audio Outputs	1x XLR 3-Pin Balanced Output 1x 1/4" TRS Unbalanced Output 1x 1/4" TRS Unbalanced Output 2x 1/4" TRS Aux/Send Output
USB	No

Number of Channels	4 2x Mic 2x Mic/Aux
Platter/Jog Wheel	No
Faders	4x 2.4" / 60 mm Channel Level 1x 1.8" / 45 mm Crossfader (Replaceable, Adjustable Fade Curve)
Meters	Main Meter: 2x 9-Segment LED 4x 9-Segment LED
Meter Range	Main Meter: -20 dB to +10 dBu Peak/Clip Channel Meter: -20 dB to +10 dBu Peak/Clip
Display	No
Sample Pads	No
EQ	4x Channel EQ: Hi: 0 to +6 dB at 2.4 kHz Hi-Mid: to -30 dB at 1.8 kHz Lo-Mid: to -30 dB at 320 Hz Low: 0 to +6 dB at 220 Hz 4x Mic/Aux EQ: Hi: 0 to -15 dB at 12 kHz Hi-Mid: 0 to -15 dB at 2.7 kHz Lo-Mid: 0 to -15 dB at 270 Hz Low: 0 to -15 dB at 60 Hz
Performance Controls	BPM Counter, Band-Pass Filter, Beat Sync, High-Pass Filter, Low-Pass Filter, Voice Ducking
Built-In Effects	No
Stems Processing	No

Audio Inputs	2x Stereo 2RCA Coaxial Line Input 2x 1/4" TRS Return Input 2x XLR 3-Pin Mic Input 2x 1/4" TRS Aux/Return Input
Audio Outputs	1x XLR 3-Pin Balanced Output 1x 1/4" TRS Unbalanced Output 1x 1/4" TRS Unbalanced Output 2x 1/4" TRS Aux/Send Output
Other I/O	1x RCA Coaxial Output 1x DIN 5-Pin MIDI Output
Phantom Power	No
USB	No
Wireless	No
Media Card Slots	No

Frequency Response	Line Input: 20 Hz to 20 kHz +1/-0.5 dB
Headroom	22 dB
Gain/Trim Range	Mic Input: +30 dB
Output Level	Master: +25 dBu Booth: 21 dBu
Crosstalk	<-90 dB (@1kHz +10 dBu)
THD	0.01%

Included Software	No
OS Compatibility	No

Power Requirements	AC/DC Power Adapter (Included)
Power Supply Output	100 to 240 VAC (Included)
AC Input Power	100 to 240 VAC, 50/60 Hz
AC Power I/O	1x IEC
Power Consumption	30 W
Current Consumption	500 mA

Package Weight	17.725 lb
Box Dimensions (LxWxH)	19.3 x 18.2 x 8.2"
