Description

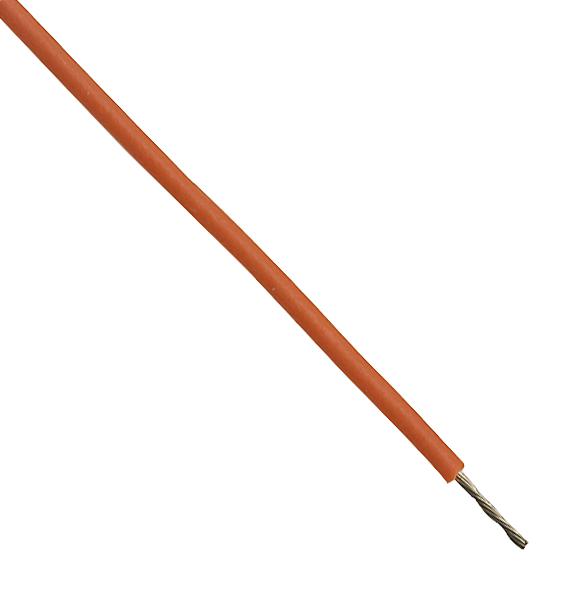

The 3053 OR005 is a 100ft Hook-up Wire with stranded tinned copper conductor and PVC insulation. It is exactly suited for application as control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven or off-road construction equipment. It has the ability to withstand wear and abrasion, electrical properties and resistance to oil, solvents and chemicals. It provides excellent uniformity for easy handling, stripping and termination.
- CPR: Not Yet Qualified
- Excellent flame resistance
- 7.9lbs Maximum pull tension
- 0.05µH/ft Nominal inductance
Applications
Industrial, Automotive
Product details
| Jacket Material: PVC |
| Jacket Colour: Orange |
| Wire Gauge: 20AWG |
| Conductor Area CSA: 0.51mm² |
| Reel Length (Imperial): 100ft |
| Reel Length (Metric): 30.5m |
| Operating Temperature Max: 105°C |
| No. of Max Strands x Strand Size: 10 x 30AWG |
| Voltage Rating: 300V |
| Conductor Material: Tinned Copper |
| External Diameter: 1.803mm |
| Approval Specification: CSA AWM I A/B FT1, CSA TR-64 FT1, UL 1007,UL 1581,UL 1569, UL VW-1 |
| Product Range: - |
Other details
| Brand | ALPHA WIRE |
| Part Number | 3053 OR005 |
| Quantity | Reel of 30 |
| Technical Data Sheet EN |  |
