Description
Provided by third party:

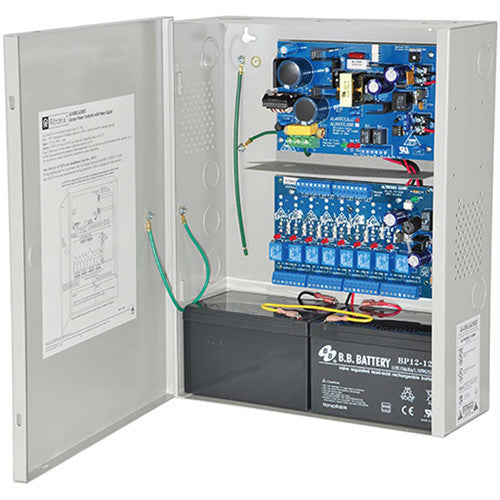

Model AL400ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 12VDC @ 4 amp or 24VDC @ 3 amp of continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL400ULACM is a fuse protected version of this unit.
In the Box
ALTRONIX Power Supply/Charger with 8 PTC Outputs Access Power Controller (12VDC @ 4A / 24VDC @ 3A)
- Lifetime Limited Warranty
| Technical Information | |
|---|---|
| Protection Type | Short Circuit Thermal Overload |
| Power Description | |
|---|---|
| Input Voltage Type | AC |
| Input Voltage | 110 V AC |
| Number of +12V Rails | 8 |
| Output Voltage | 12 V DC @ 4 A 24 V DC @ 3 A |
| Input Current | 1.90 A @ 110V |
| Physical Characteristics | |
|---|---|
| Form Factor | Wall Mount |
| Height | 15.5" |
| Width | 12.2" |
| Depth | 4.5" |
| Weight (Approximate) | 10.10 lb |
| Miscellaneous | |
|---|---|
| Compatibility |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
