Description
Provided by third party:
Model AL1024ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 24VDC Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL1024ULACM is a fuse protected version of this unit.
UPC: 782239936106
| Technical Information | |
|---|---|
| Protection Type | Short Circuit Thermal Overload |
| Power Description | |
|---|---|
| Input Voltage Type | AC |
| Input Voltage | 110 V AC |
| Output Voltage | 24 V DC @ 10 A |
| Input Current | 4.40 A @ 110V |
| Physical Characteristics | |
|---|---|
| Form Factor | Wall Mount |
| Height | 15.5" |
| Width | 12.2" |
| Depth | 4.5" |
| Miscellaneous | |
|---|---|
| Compatibility |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Packaging Info | |
|---|---|
| Package Weight | 11.15 lb |
| Box Dimensions (LxWxH) | 16.4 x 13.3 x 5.7" |
In the Box

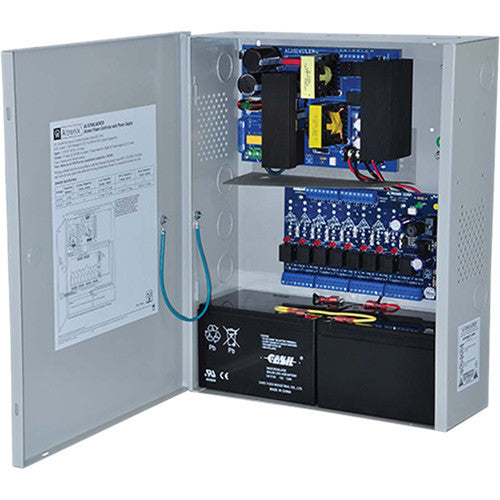

ALTRONIX Power Supply/Charger with 8 PTC Outputs Access Power Controller (24VDC @ 10A)
- Lifetime Limited Warranty
