Description

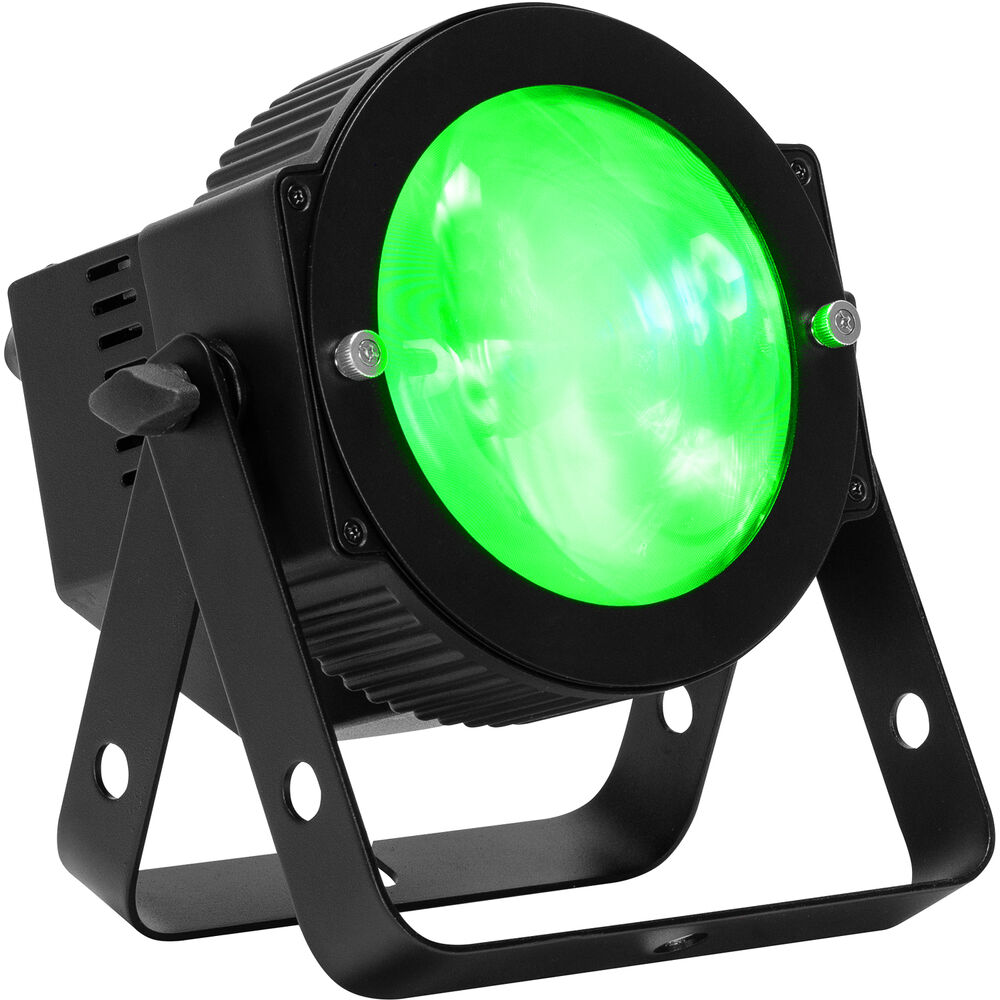

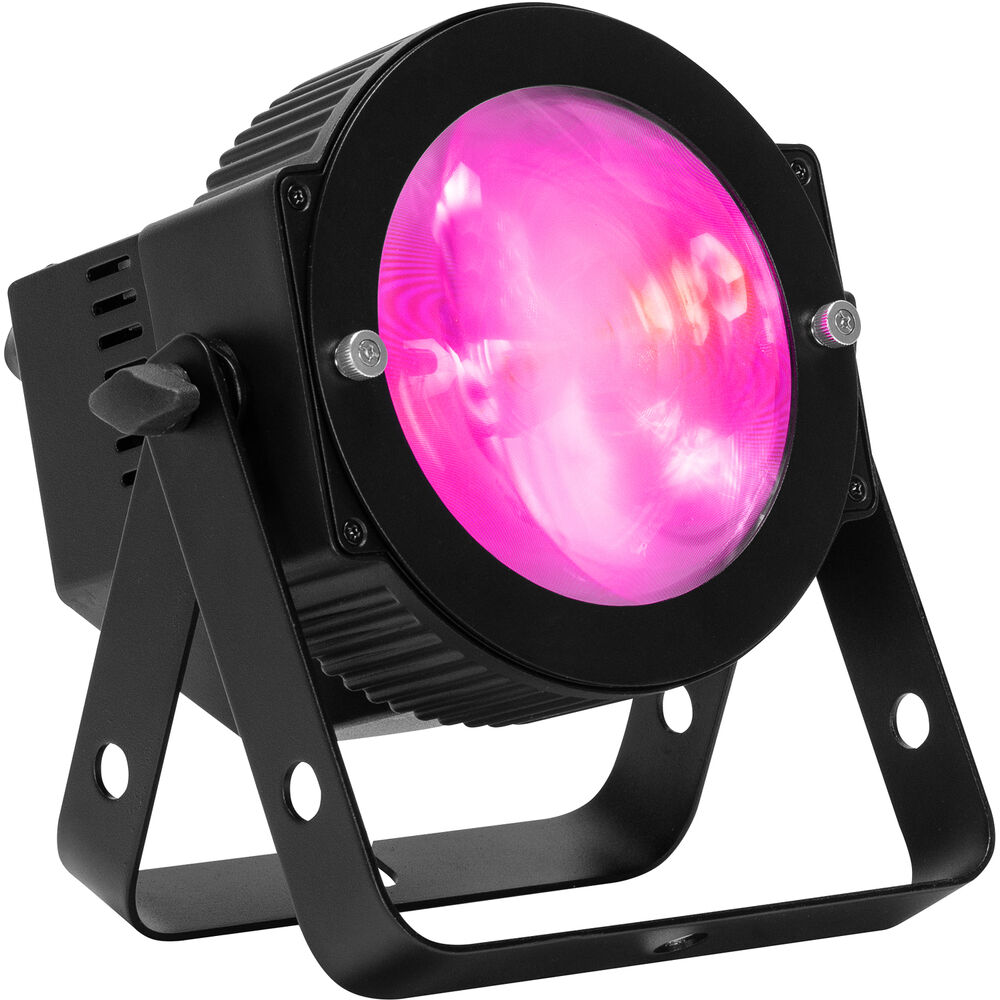

American DJ Dotz Par RGBL Overview
Generate brilliant, even color washes with the American DJ Dotz Par RGBL, an advanced washlight fixture well suited for parties, events, clubs, small stages, houses of worship, or anywhere entertainment lighting is required. The Dotz Par RGBL is powered by 16x Chip Onboard (C.O.B.) 3.5W RGBL LEDs which provides high CRI output and advanced color mixing, plus linear color temperature color (2700 to 6500K) with built-in preset color temperatures. Additionally, the fixture has 16-Bit fine color control with 64 built-in color macros and a beam output of 35 degrees.

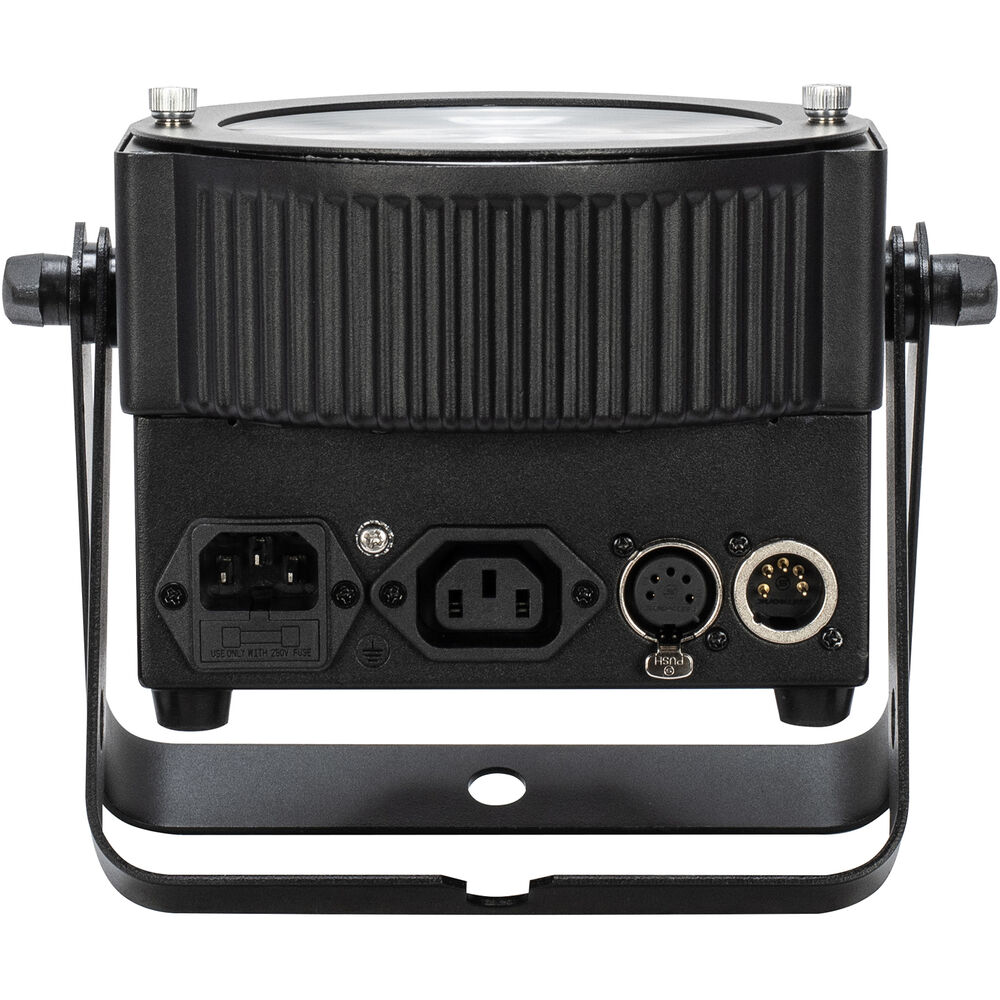

The 4-button, DMX display allows for easy navigating into the fixture's flexible functions. There are 6 operational modes, 6 dimmer curve modes, 4 selectable dim curves and supports DMX and RDM protocols. The locking power in and out sockets can daisy chain power (up to 30 at 120V), plus 5-pin DMX in/out sockets. The supplied scissor yoke allows for flexible use allowing the fixture to be hung in the air or set on the ground. A locking power cord and frost lens kit are included.
- Light source: 16 x 3.5W RGBL C.O.B. LED (4 red, 4 green, 4 blue & 4 lime)
- 35° beam angle
- Linear color temperature control (2700 to 6500K)
- Preset color temperatures
- 16-bit fine color control
- 64 built-in color macros
- Maximum power link: 30 fixtures (120V), 57 fixtures (230V)

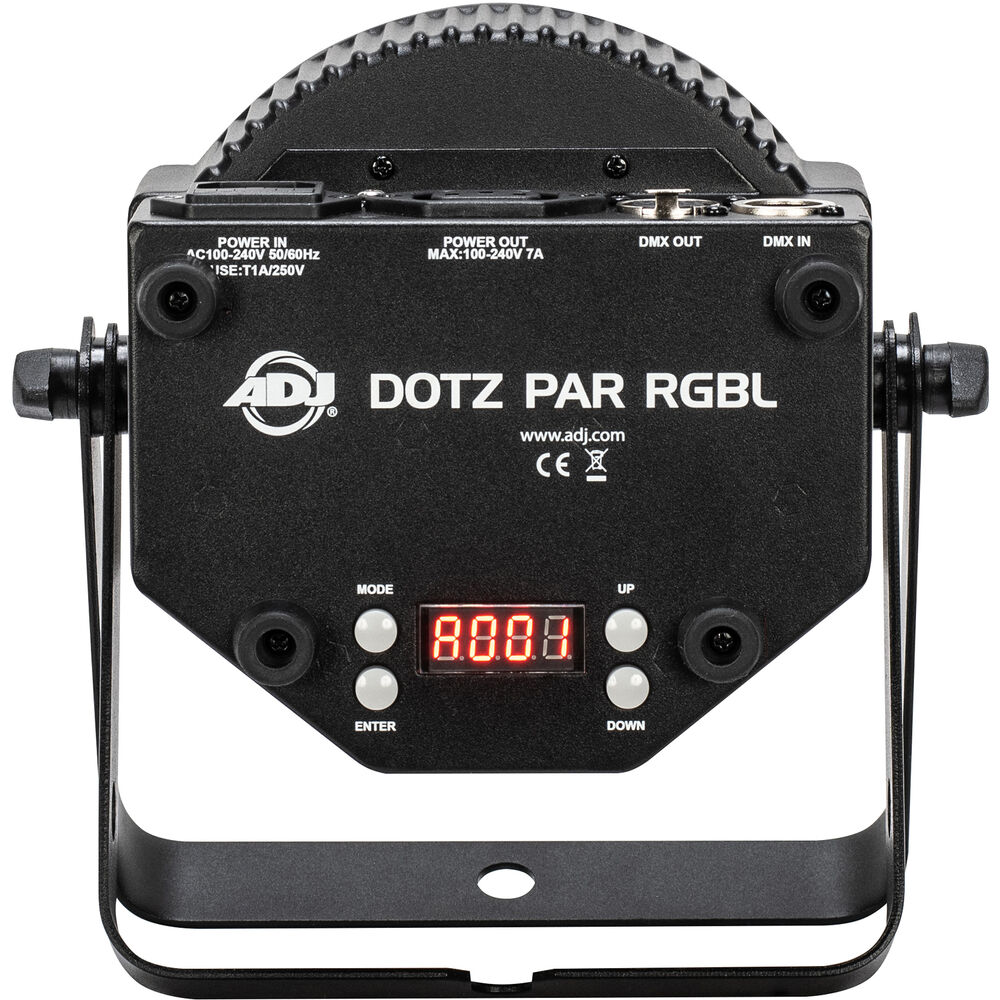

- 4-button, DMX digital display on rear panel
- Six operational modes: Static Color, RGBL Dimmer, Program, Sound Active, Wireless RF, and DMX controlled
- Supports RDM (remote device management)
- With wired digital communication network
- 6 selectable dimming modes (Standard, Stage, TV, Architectural, Theatre, and Stage 2)
- 4 selectable dim curves (Linear, Square, Inverse Square, S-Curve)
- 1200 Hz LED refresh rate
- LED pulse and strobe effect
- Electronic dimming: 0 - 100%
Items Included
- American DJ Dotz Par RGBL LED Washlight
- Power Cable
- Frost Filter Lens Kit
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ Dotz Par RGBL Specs
| Fixture Type |
PAR
|
| Light Source |
16x Color LED (COB) - 3.5 W
|
| Colors |
Blue, Green, Lime, Red
|
| Beam Angle |
35°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
36 W
|
| Mounting |
Dual/Scissor Yoke
|
| Fixture Type |
PAR
|
| Light Source |
16x Color LED (COB) - 3.5 W
|
| Expected Lamp Life |
20,000 Hours
|
| Colors |
Blue, Green, Lime, Red
|
| Color Temperature |
2700 to 6500K
|
| Lumen Output |
1250 Lumens
|
| Beam Angle |
35°
|
| Shutter / Strobe |
Electronic
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic, 0 to 100% with 6 Dimmer Modes
|
| Operating Modes |
Automatic, Color Change, Color Dimmer, DMX, Sound-Active, Static Color
|
| Macros / Programs |
64x Color Macro
|
| Effects |
Pulse (Variable Speed)
Strobe (Variable Speed) |
| Gobos |
No
|
| Refresh Rate |
1200 Hz
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
6 Mode(s):
4 / 7 / 8 / 10 / 13 / 16-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x IEC
Output: 1x IEC Plug Type: NEMA 5-15 |
| Fuse |
T 1 A 250 V
|
| Power / Current Consumption |
36 W
|
| Power Linking |
30 Units at 120 VAC
57 Units at 230 VAC |
| Environmental Resistance |
No
|
| Mounting |
Dual/Scissor Yoke
|
| Included Accessories |
1x Filter
1x Power Cable |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, ETL, CSA
|
| Dimensions |
8.72 x 8.23 x 5.19" / 22.15 x 20.9 x 13.18 cm
|
| Weight |
4.4 lb / 2 kg
|
