Description

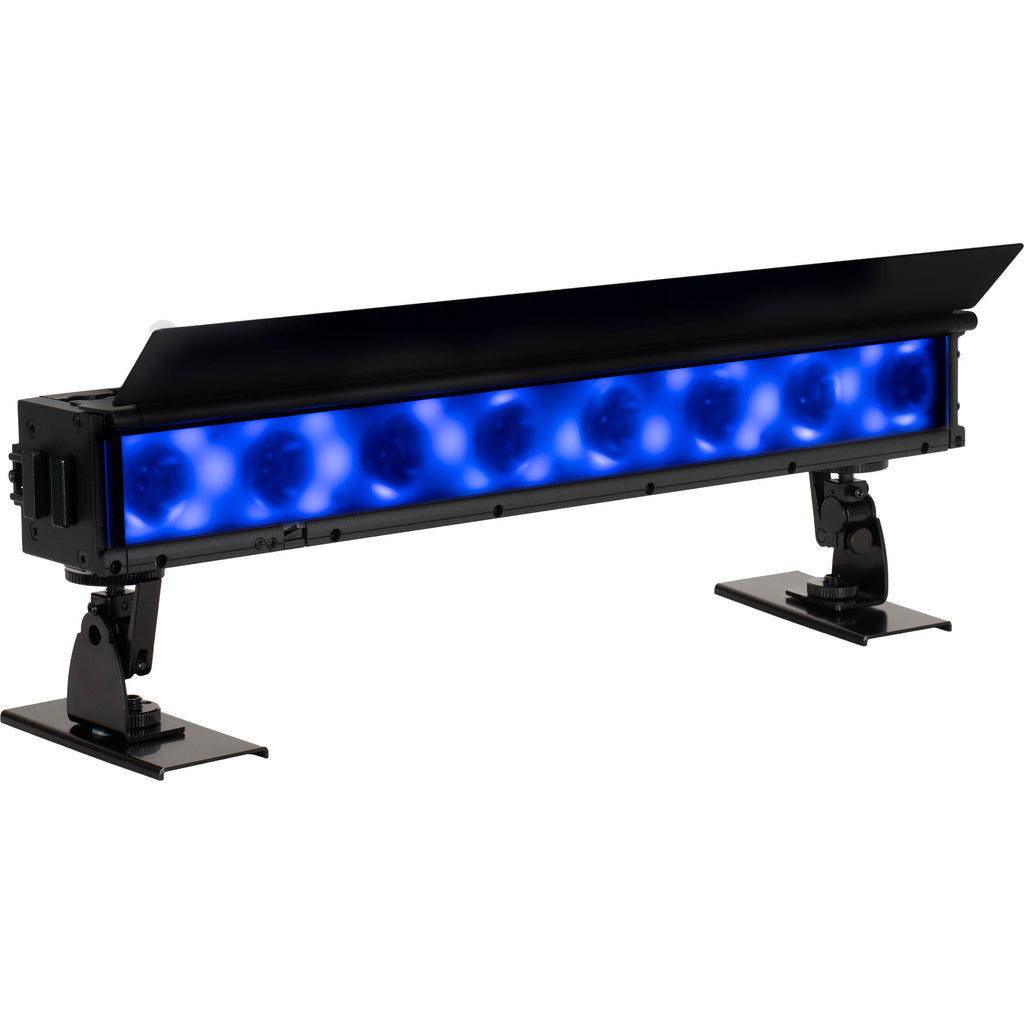

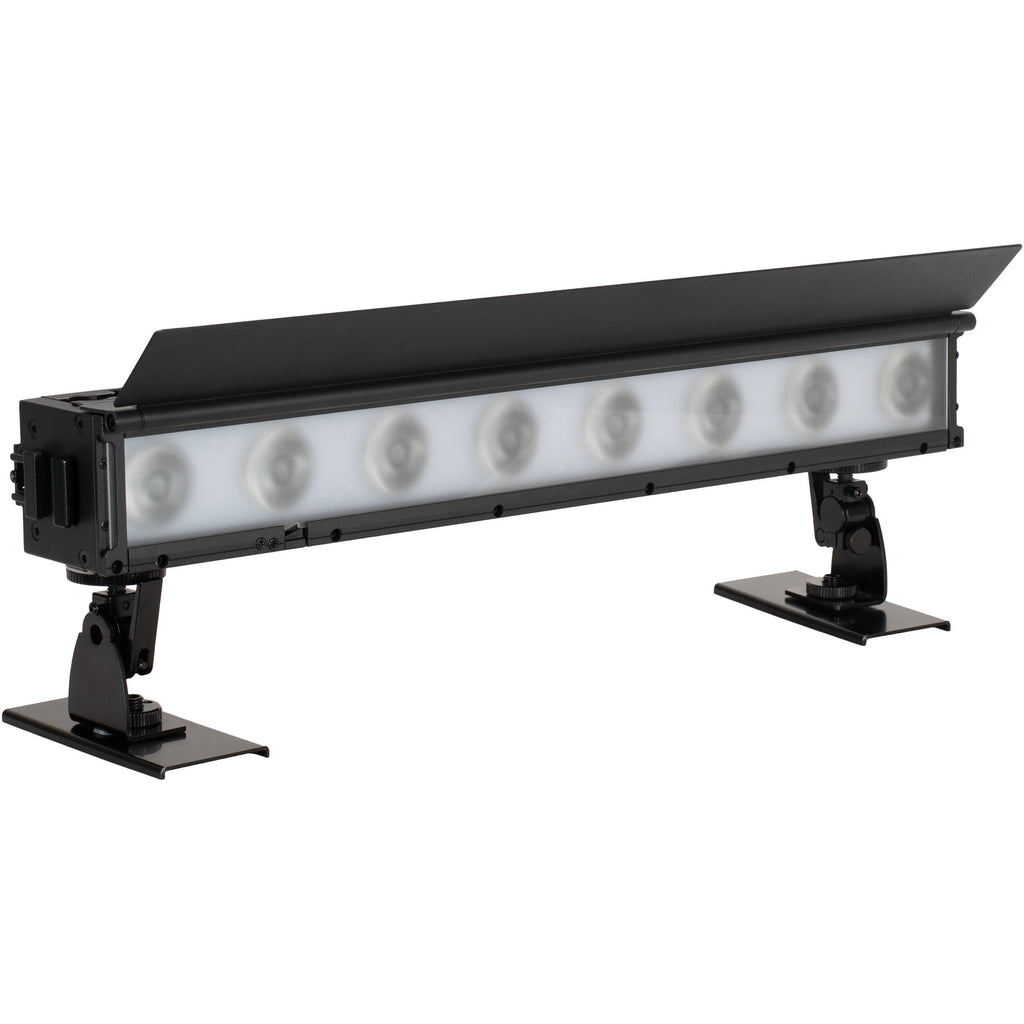

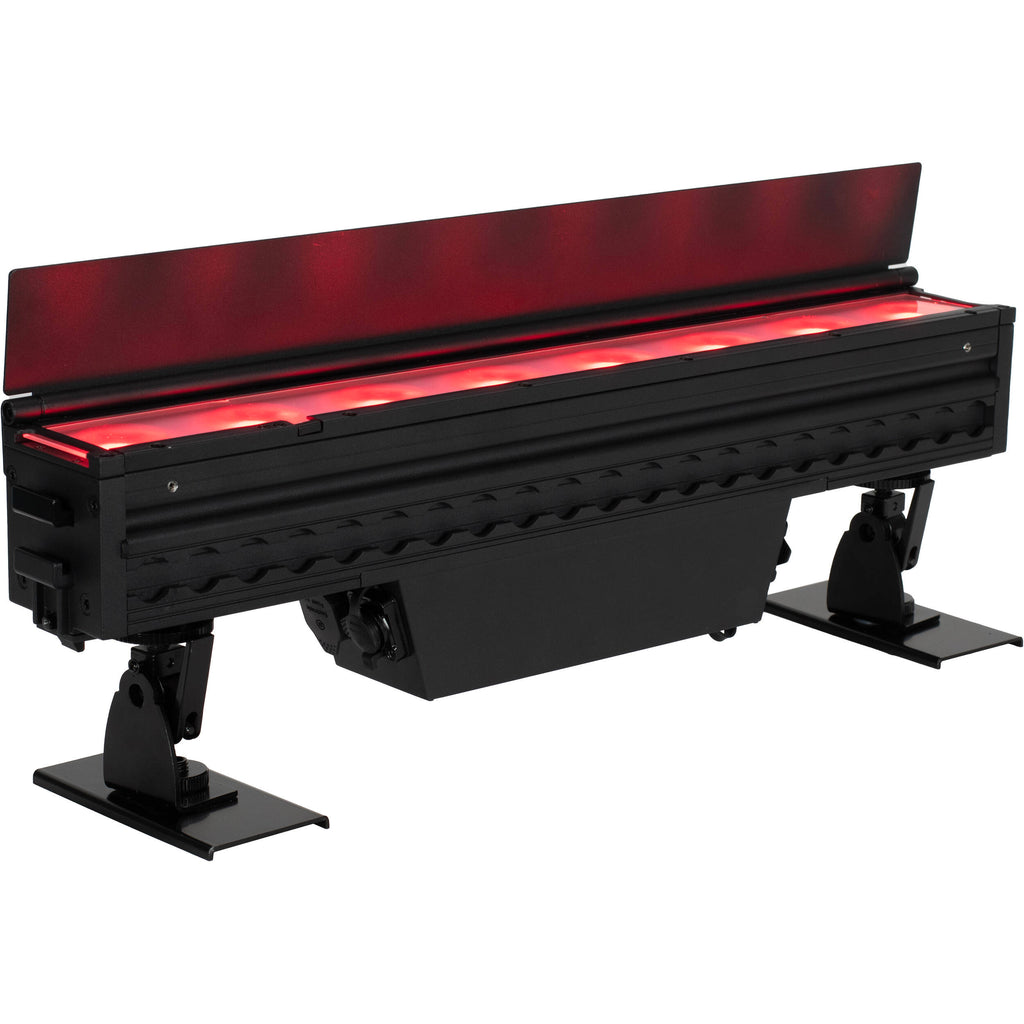

American DJ ElectraPix Bar 8 Overview
Light up your next indoor / outdoor event with the American DJ ElectraPix Bar 8, an innovative wireless DMX lighting solution that's packed with advanced features to provide unparalleled control and creativity. The ElectraPix Bar 8 is powered by eight 20W RGBAL+UV LEDs and 32 x 0.2W RGB background LEDs with individual pixel control for incredibly dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.
Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. Additionally, up to four ElectraPix Bar 8 fixtures may be mounted vertically to the VFB1 floor base (sold separately). The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote. The fixture is powered by either batteries or wall outlets and offers up to 20 hours of operation. The ElectraPix Bar 8 ships with an outdoor locking power cable and a 20° diffusion filter.
- 8-pixel, hex color LED (RGBAL+UV) LED bar
- Battery or wall powered
- Up to 20-hour battery operation
- Battery operation (menu option)
- Individual pixel control
- Built-in foreground LED programs
- Built-in background LED programs
- Variable white color temperature control (2700 to 9900k)
- English and Spanish user menu
- Built-in alarm
- Color calibrated LED's
- User selectable led refresh rates (900 Hz to 25 kHz)
- 6 user selectable dim modes
- 4 user selectable dim curves
- Electronic strobe (0.3 to 11 Hz)
- Electronic dimming
- DMX512
- Aria X2 wireless DMX
- Bluetooth
- RDM and RDM Net compatible
- Includes UCIR24 wireless remote
- DMX: 5, 6, 9, 13, 21, 24, 48, 52, and 66 channel modes
- Onboard Manual Control mode
- Primary / Secondary mode
Connections:
- 5-pin XLR outdoor DMX in/out sockets (must be used with STRxxx, 5-pin DMX cables to create IP65 seal)
- Outdoor locking power sockets
- Battery charging socket
Items Included
- American DJ ElectraPix Bar 8 IP65 Outdoor-Rated Battery-Powered RGBAL+UV LED Linear Bar
- Outdoor Locking Power Cable
- UCIR24 Remote
- 20° Diffusion Filter
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ ElectraPix Bar 8 Specs
| Fixture Type |
Linear/Bar Light
|
| Light Source |
8x Color LED - 20 W
32x Color LED - 0.2 W |
| Colors |
Amber, Blue, Green, Lime, Red, Ultraviolet
|
| Pixel Configuration |
8x Zone
|
| Beam Angle |
17°
|
| Control Protocols |
DMX512, RDM, WiFly
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Battery Type |
22.2 V Lithium-Ion
|
| Mounting |
Dual/Scissor Yoke
|
| Fixture Type |
Linear/Bar Light
|
| Light Source |
8x Color LED - 20 W
32x Color LED - 0.2 W |
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Amber, Blue, Green, Lime, Red, Ultraviolet
|
| Pixel Configuration |
8x Zone
|
| Color Temperature |
2300 to 9900K
|
| Beam Angle |
17°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Operating Modes |
Color Dimmer, DMX, Primary/Secondary, Program, Static Color
|
| Macros / Programs |
Color Macro
|
| Effects |
Strobe
Pulse |
| Strobe Rate |
0.3 to 11 Hz
|
| Gobos |
No
|
| Refresh Rate |
900 Hz to 25,000 Hz
|
| Control Protocols |
DMX512, RDM, WiFly
|
| DMX Channel Modes |
9 Mode(s):
5 / 6 / 9 / 13 / 21 / 24 / 48 / 52 / 66-Channel |
| Display / Controls |
OLED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless |
Wi-Fi
*Built-In |
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated |
| Power / Current Consumption |
60 W
|
| Power Linking |
15 Units at 120 VAC
28 Units at 230 VAC |
| Battery Type |
22.2 V Lithium-Ion
|
| Battery Capacity |
7000 mAh
|
| Approximate Battery Life |
Up to 20 Hours
|
| Battery Charging Time |
6 Hours
|
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Mounting |
Dual/Scissor Yoke
|
| Included Accessories |
1x Power Cable
1x Filter |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, cETLus, FCC
|
| Dimensions |
23.24 x 9.79 x 3.37" / 59.03 x 24.87 x 8.56 cm
|
| Weight |
Not Specified by Manufacturer
|
