Description

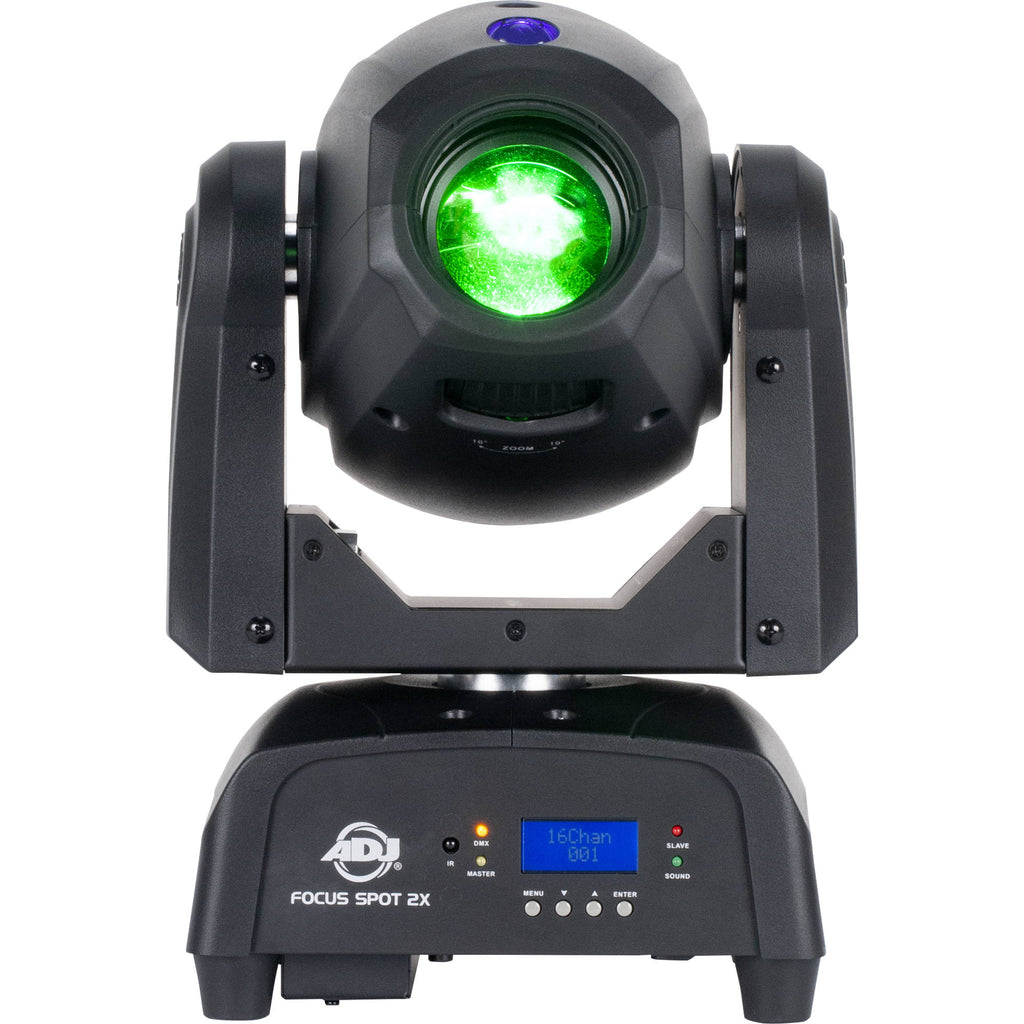

American DJ Focus Spot 2X Overview
The black American DJ Focus Spot 2X is designed for lighting installations and live performance applications in clubs, theaters, and concert productions. It features a 100W LED light source (rated at 50,000 hours), a 3W UV LED, 540° pan, 270° tilt, 16-bit movement resolution, motorized focus, and a manual zoom for a beam angle of 16 to 19°.
The color wheel has eight colors and white, while the gobo wheel features six rotating and replaceable gobos plus spot, and a shake effect. The gobos can be indexed and are easily replaceable via the hinged head cover. Additionally, the gobo image can be further manipulated with either the rotating 6-facet circular prism or the rotating 6-facet linear prism. This fixture features five selectable dimming curves (standard, stage, TV, architectural, theater). It also features an electronic regular strobe, a random strobe, and a pulse effect.
For controls, the unit features two DMX channel modes (16 and 18 channels) with 3-pin XLR DMX input and output connectors. Multiple units can be daisy-chained to create complex lighting installations. The pan/tilt inversion mode is designed for contrasting movement when the fixtures are linked together. The unit also features a sound-activation mode that utilizes an internal microphone, as well as an internal show mode with four built-in shows. The LED display on the front panel shows DMX addressing and function settings, controllable via the four-button interface. The ADJ Focus Spot 2X ships with an Omega bracket and power cord.
- High-output moving head with 100W cold-white LED source and a 3W UV LED
- 8 colors, white, and split colors
- Motorized focus
- Manual zoom knob on head
- 16 to 19° beam angle
- Strobe/pulse effect generates random strobes slow to fast
- 6 rotating, replaceable gobos + spot
- Gobo indexing
- EZ gobo replacement with hinged head cover
- Gobo shake effect
- Prism wheel with 6-facet circular prism and 6-facet linear prism
- Sound Active, Show, and DMX control modes
- Master/Slave
- DMX Channel Modes: 16/18
- Electronic dimming
- 5 dimming curves
- 3-pin DMX input and output
- PowerCon input and output
- Daisy-chain up to 9 Focus Spot 2X at 120V
- Fast and precise pan/tilt movements
- Pan: 540°
- Tilt: 270°
- Includes Omega bracket and power cord
In the Box
- American DJ Focus Spot 2X 100W LED Moving Head with 3W UV LED
- Omega Bracket
- Power Cord
- Limited 2-Year Warranty
American DJ Focus Spot 2X Specs
| Light Source | 1 x 100 W Cold-White LED (7600°K, 50,000 Hours) 1 x 3 W UV LED |
| Focus | Motorized |
| Zoom | Manual Zoom Knob on Head |
| Beam Angle | 16 to 19° |
| Strobe | Strobe/Pulse Effect: Random Strobe Slow to Fast |
| Color Wheel | 8 Colors + White, and Split Colors |
| Gobos | 6 Rotating, Replaceable Gobos + Spot Gobo Indexing EZ Gobo Replacement with Hinged Head Cover Gobo Shake Effect Gobo Size: Outer: 0.9" / 23 mm Inner: 0.7" / 19 mm Thickness: 0.02" / 0.5 mm |
| Prism | 6-Facet Circular Prism 6-Facet Linear Prism |
| Controls | Operational Modes: Sound Active, Show Mode, DMX Controlled, Master/Slave Four Built-In Lighting Shows DMX Channel Modes: 16 and 18 Electronic Dimming: 0 to 100% 5 Dimmer Curves DMX LED Menu: 4 Buttons Stepper Motors with Micro Stepping Wired Digital Communication Network UC IR & Airstream IR Compatible (Sold Separately) |
| Connections | DMX In/Out: 3-Pin Power In/Out: Twist Locking |
| Pan & Tilt | Fast and Precise Pan/Tilt Movements 16-Bit Fine Pan/Tilt Control Pan: 540° Tilt: 270° Pan/Tilt Invert Mode 4 x Built-In Pan/Tilt Target Modes |
| Power | 3 x Modes: DMX, Sound Activation, and Internal Show |
| Power Cord Daisy Chain | Daisy Chain Power: 9 Focus Spot 2X at 120 V 16 Focus Spot 2X at 230 V |
| Power | Input Voltage: 100 to 240 VAC, 50/60 Hz Power Consumption: 180W |
| Mounting | Omega bracket |
| Approvals | CE ETL (Pending) |
| Dimensions | 9.3 x 9.1 x 15.2" / 23.7 x 23.1 x 38.5 cm |
| Weight | 14.5 lb / 6.5 kg |
