Description

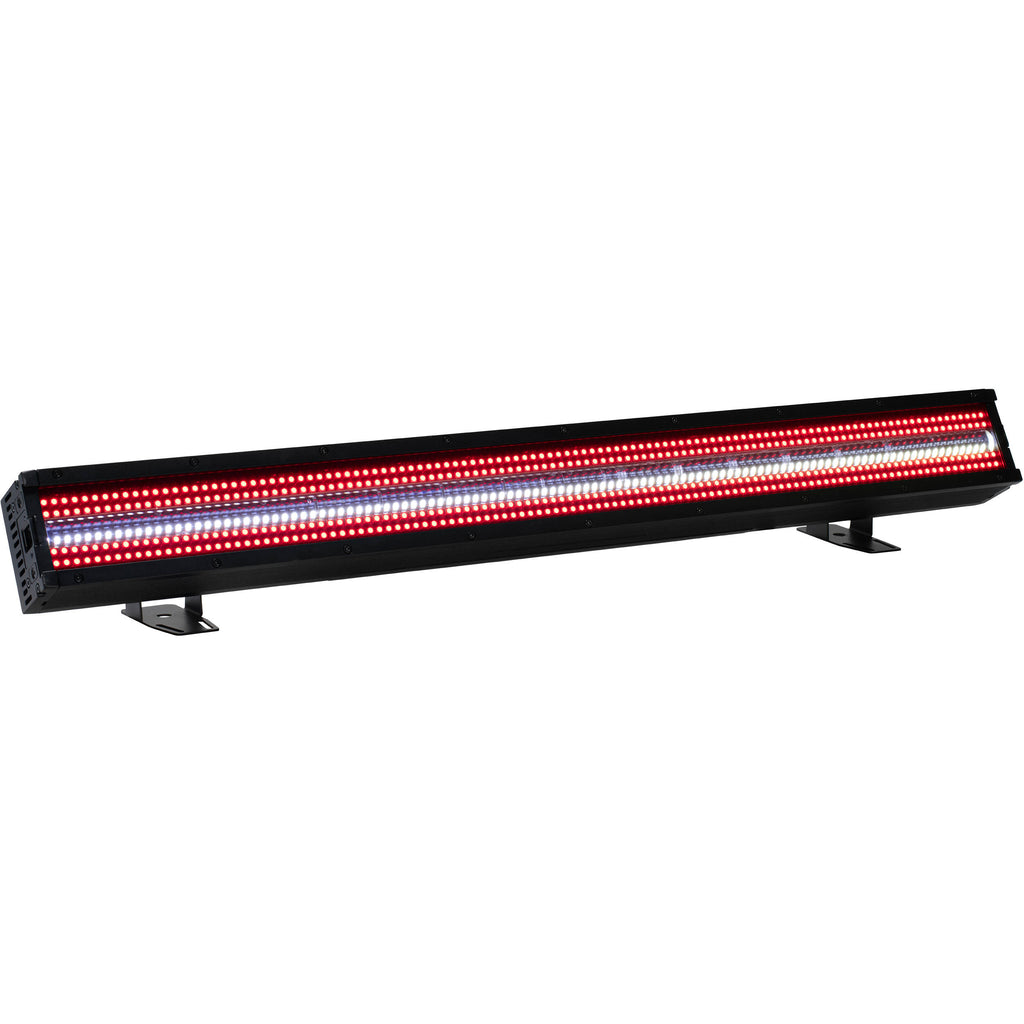

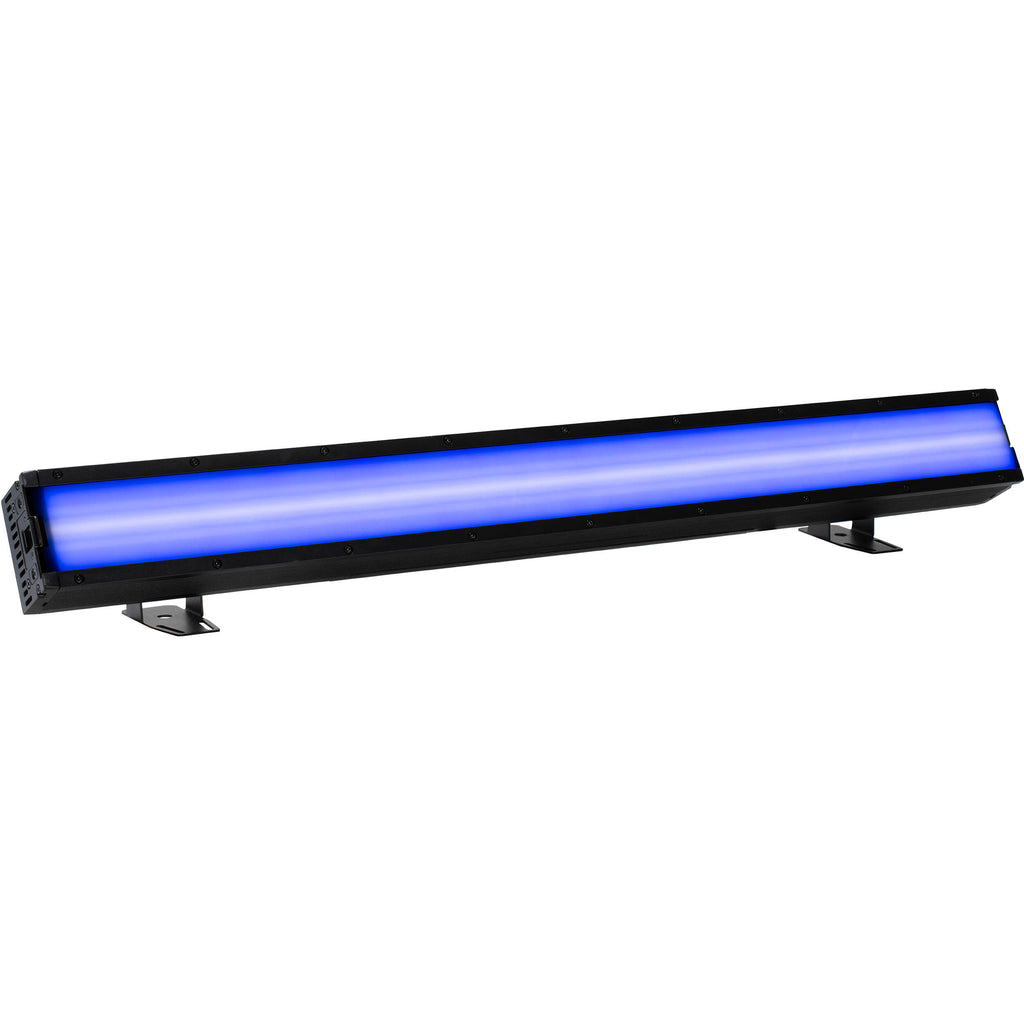

American DJ Jolt Bar FXIP Overview
Create strikingly bright white strobe flashes, vibrant color washes, and animated eye-candy chase effects indoors or outdoors with the American DJ Jolt Bar FXIP, an IP65-rated RGB and cool white blinder, wash, and strobe fixture well suited for concert productions, festival stages and other large scale events.
The fixture features a central strip of 112 x 5W cool white SMD LEDs, surrounded on both sides by a total of 448 x 0.5W RGB color mixing SMD LEDs. This allows the same fixture to generate intense white strobing as well as colored washes and strobe effects. Both types of LED are grouped into independently controllable zones (16 white and 32 color), which means the unit can also be used to generate strobe chases and other eye candy effects. The rear panel offers 5-pin DMX I/O with locking power input and output for daisy-chaining data and power to several fixtures. The American DJ Jolt Bar FXIP includes two Omega brackets, an IP65-rated locking power cord, and a frost filter.
- 448 RGB SMD LEDs + 112 cool white SMD LEDs
- 50,000 hour average LED life
- 9 built-in cool white LED program macros
- 180° mounting bracket system
- IP65-rated (for temporary outdoor use)
- Aria X2 Wireless DMX built-in
- Frost lens assembly
- Includes alignment bracket to attached units together
- Control protocols: DMX, Aria X2, and RDM
- 13 DMX channel modes: 6, 9, 13, 16, 18, 32, 32A 38, 43, 64, 78, 112, and 126
- Dim modes: 6 presets (Standard, Stage, TV, Architectural, Theatre, and Stage 2)
- Dim curves: 4 presets (Linear, Square Law, Inv Square Law, and S Curve)
- 0-100% smooth dimming
- Strobe, shutter, and pulse control
- With wired digital communication network
- Display: OLED menu (with 4 touch buttons)
Items Included
- American DJ Jolt Bar FXIP All-Weather RGBW Linear Wash / Strobe / Blinder Fixture
- Frost Filter
- IP65-Rated Locking Power Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ Jolt Bar FXIP Specs
| Fixture Type |
Linear/Bar Light
|
| Light Source |
448x Color LED (SMD) - 0.5 W
112x White LED (SMD) - 5 W |
| Colors |
Blue, Cool White, Green, Red
|
| Pixel Configuration |
48x Zone
|
| Beam Angle |
78°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 214 W (Max)
230 VAC, 50 Hz: 208 W / 1.4 A (Max) |
| Mounting |
Omega Bracket
|
| Fixture Type |
Linear/Bar Light
|
| Light Source |
448x Color LED (SMD) - 0.5 W
112x White LED (SMD) - 5 W |
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Cool White, Green, Red
|
| Pixel Configuration |
48x Zone
|
| Beam Angle |
78°
|
| Field Angle |
117°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic, 0 to 100% with 6 Dimmer Modes
|
| Operating Modes |
Automatic, DMX, Primary/Secondary, Program
|
| Macros / Programs |
25x Auto-Program
9x Color Macro |
| Effects |
Strobe (Variable Speed)
Pulse |
| Strobe Rate |
0.4 to 20 Hz
|
| Gobos |
No
|
| Refresh Rate |
900 Hz to 25 kHz (Adjustable)
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
13 Mode(s):
6 / 9 / 13 / 16 / 18 / 32 / 32a / 38 / 43 / 64 / 78 / 112 / 126-Channel |
| Display / Controls |
OLED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless |
Wireless DMX
*Built-In |
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON Plug Type: NEMA 5-15 |
| Fuse |
T 5 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 214 W (Max)
230 VAC, 50 Hz: 208 W / 1.4 A (Max) |
| Power Linking |
6 Units at 120 VAC
12 Units at 230 VAC |
| Environmental Resistance |
No
|
| Mounting |
Omega Bracket
|
| Included Accessories |
1x Power Cable
1x Filter |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, cETLus
|
| Dimensions |
39.4 x 5.42 x 4.19" / 1000.8 x 137.67 x 106.43 mm
|
| Weight |
20.5 lb / 9.3 kg
|
