Description

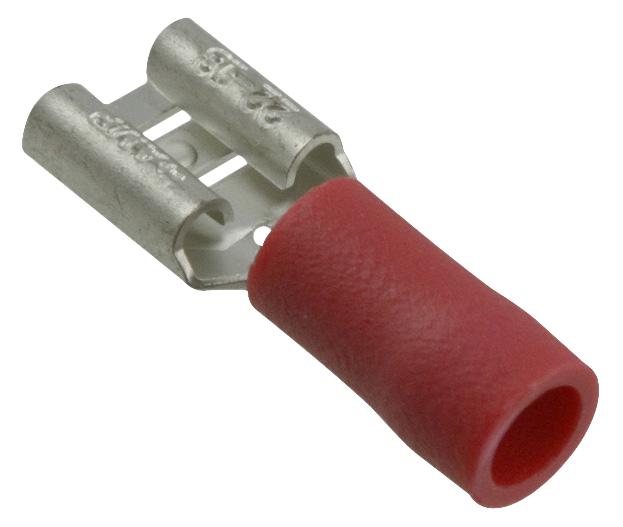

The 165565-2 is a red straight Faston Receptacle with tin-plated bronze contact. The female quick disconnect terminal has nylon insulation and accepts 22 to 15AWG wire size.
- 300V Maximum operating voltage
Applications
Industrial
Product details
| Product Range: PIDG FASTON 110 |
| Terminal Type: Female Quick Disconnect |
| Tab Size - Metric: 2.8mm x 0.51mm |
| Tab Size - Imperial: 0.11" x 0.02" |
| Wire Size AWG Min: 22AWG |
| Wire Size AWG Max: 15AWG |
| Insulator Colour: Red |
| Conductor Area CSA: 1.5mm² |
| Insulator Material: Nylon (Polyamide) |
| Terminal Material: Phosphor Bronze |
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 165565-2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
